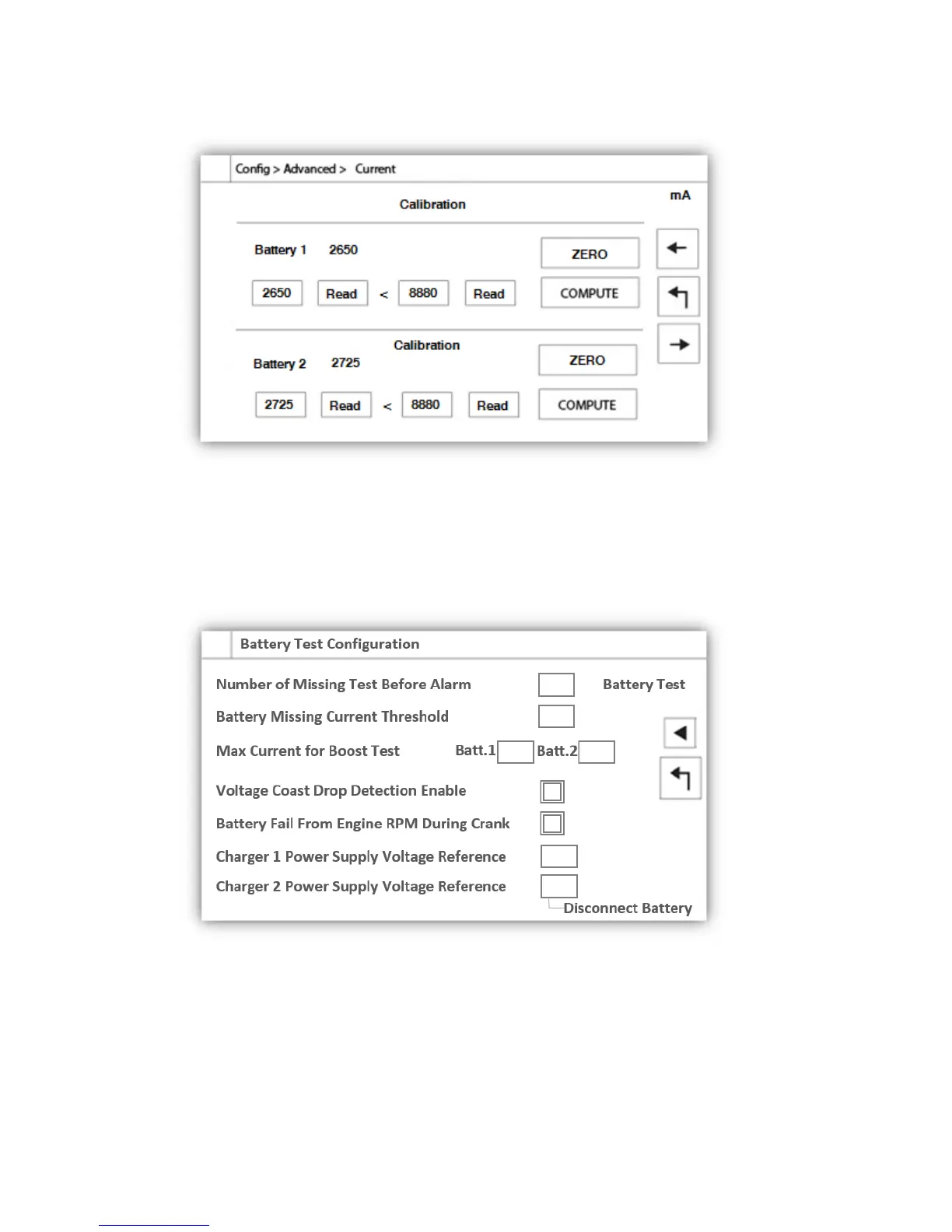

This page is used to calibrate all analog currents. The first number right beside the Battery 1 and Battery 2 text
shows the actual current reading. First, Set the CB3 Breaker in the OFF position. This will disconnect the battery.
Press the ZERO button. Then, put the CB3 breaker back in the ON position. Connect a small charge to the 6 and
11 terminals, to create a low current around 2600 mA. Enter this value in the most left field of battery 1, and press
the Read button. Then, connect a bigger charge to the 6 and 11 terminals, around 8800 mA. Write the measured
value in the second text field, and press the second read button. Finally, press the COMPUTE button to complete
the calibration. Repeat for the second battery, linked to CB4 Breaker and terminals 8 and 11.
This page is used to adjust the calibration of the battery test.
Number of Missing Test Before Alarm : It is the number of consecutive fail test that must occurred before triggering
the Battery Failure alarm.
Battery Missing Current Threshold : It is the threshold, in Amps, to test if a battery is connected. This is the amount
that the current in Amps has to rise during a boost test to determine that the battery is connected. If a false battery
failure alarms appears, it may be necessary to lower this value.
Max Current for Boost Test : Under this current value in Amps, no test on the battery is made.
