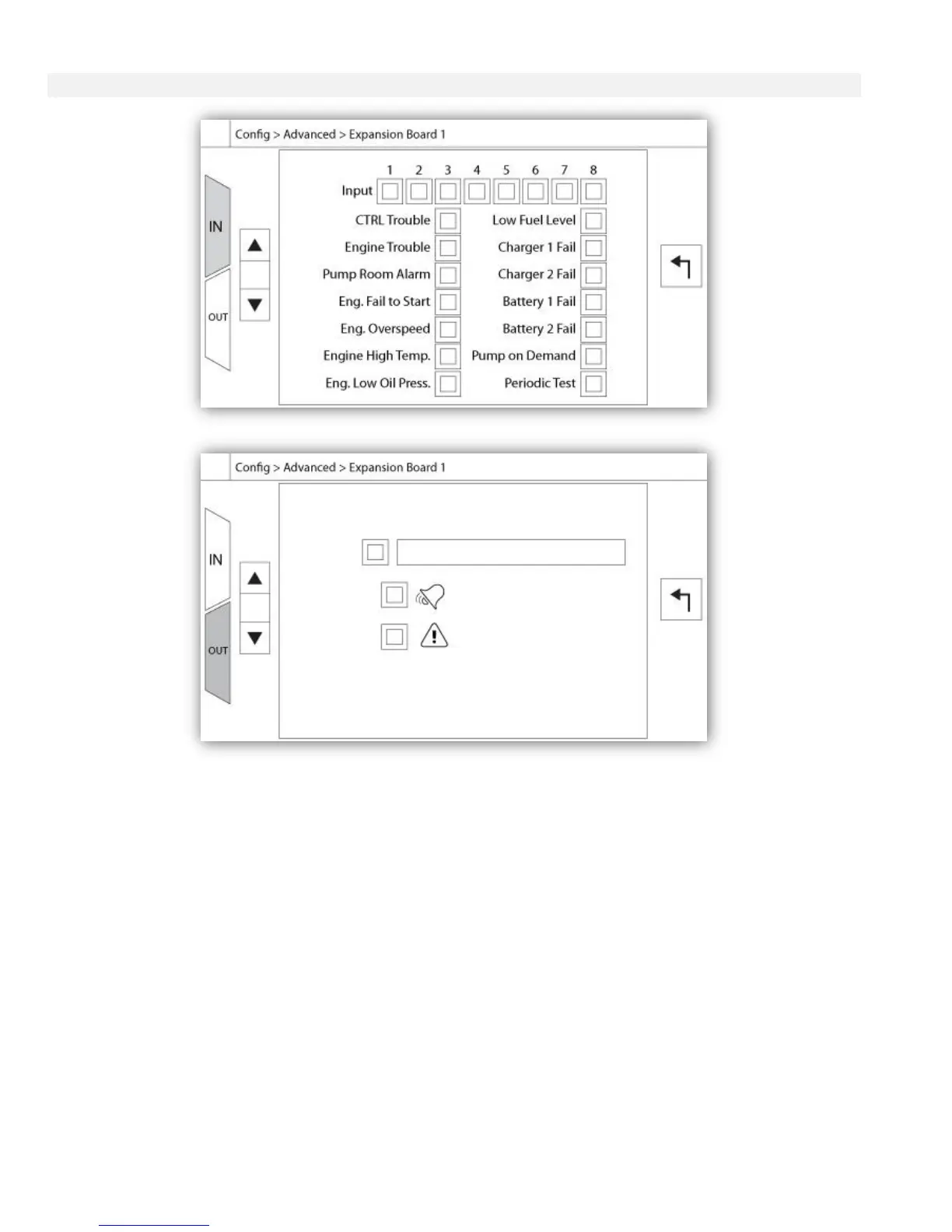

This page allows the configuration of both programmable inputs and outputs available on an IO Expansion board.
Two buttons located far right navigates between the input and output section of the page.
Input:
The input page has four elements: The NO/NC setting, the "Digital Text Indication" field, the "Alarm Bell Icon" and
the "Alarm Icon". Each one can be Enabled or disabled. The first step is to click on the square button beside the
text field to activate the management of the input signal. If the "Alarm Bell Icon" is Enabled, the input signal will
trigger the Alarm Bell. If the "Alarm Icon" is Enabled, the input signal will be treated as an alarm, if not, as a
warning. As on the output page, the buttons at the top allow for an easy navigation between all available inputs of
the diesel board.
Output:
The configuration is performed by pressing on the square box located beside one of the signal needed. The box will
swap between BLANK (none), a NO (normally open) and a NC (normally close) symbol, allowing the desired
configuration to be obtained. On top of all outputs signals available, it is possible to link in the same way the
expansion board inputs to the selected output in any combination. The final state of the output signal is a logical
"OR" combination of all selected signal.
