Tornatech HFD User Manual
4
of 1
of 1 rating
48 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
10

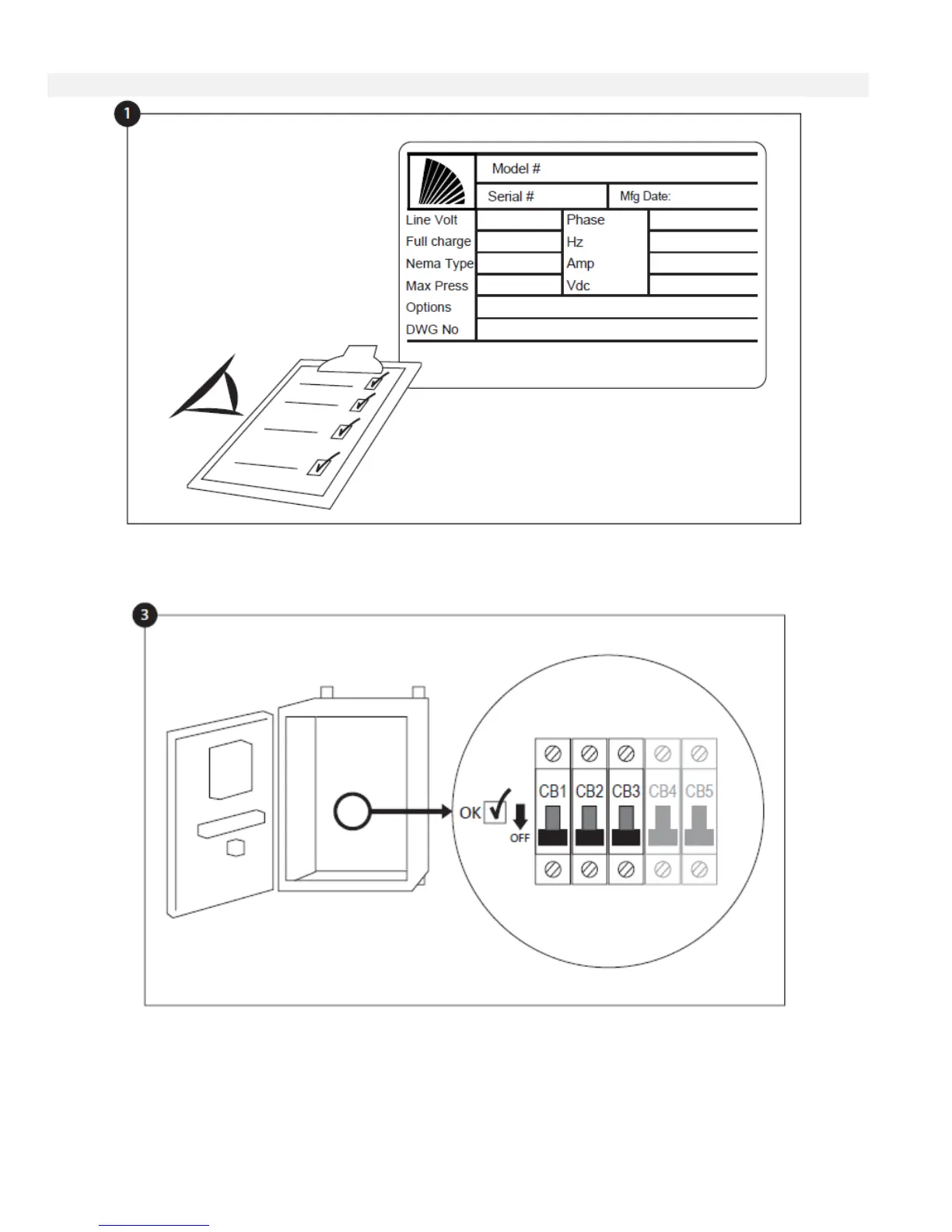

Quick Start-Up G
uide
The rating label is the m
ost im
portant label. It m
ust be read carefull
y to ensure the c
ompatibilit
y between the
controller and the
installatio
n.
Open the controller’s door
and verif
y all circuit break
ers are in the lower “OFF” po
sition.
9
11
Table of Contents
Installation
2
Table of Contents
3
Introduction
5
Types of Diesel Engine Fire Pump Controllers
5
Methods of Starting/Stopping
5
Installation
7
Location
7
Mounting
7
Storage
7
Wiring and Connections
7
Electrical Connections
7
Energy Consumption
8
Sizing
8
Incoming Power Connections
8
Circuit Protection
8
Terminal Strip Descriptions
9
Quick Start-Up Guide
10
Main Features
14
The Vizitouch
14
Alarm Bell
15
First Setup
15
Home
16
Home (Membrane Button)
16
Screen Saver
17
Alarms
18
Alarms (Membrane Button)
18
Configuration
21
Config (Membrane Button)
21
Numpad Page
22
Date and Time Page
22
User Login Page / Keypad Page
23
Advanced Configuration Page
24
Details of the Advanced Configuration Page
24
Volt-Current Calibration
24
Timers Page
26
Inputs/Outputs Configuration
27
Inputs/Outputs Expansion Board 1-2-3-4
29
Update Program Page
30
Factory Settings
30
Reset to Factory Settings Page
31
The Sensors Pages
32
H) Tachometer (Engine Speed Switch)
32
I) Engine Coolant Temperature
33
J) Engine Oil Pressure
34
K) Fuel Level
35
Details of the Debug Page
35
Calibration
35
IO Debug
36
Inputs/Outputs Debug
36
Interlock Lockout
36
History
38
History (Membrane Button)
38
Details of the History Page
39
Events Page
39
Download to USB Device
39
The Statistics
41
All Time Statistics
41
Technical Documents
42
4
Based on 1 rating
