Tornatech HFD User Manual

11

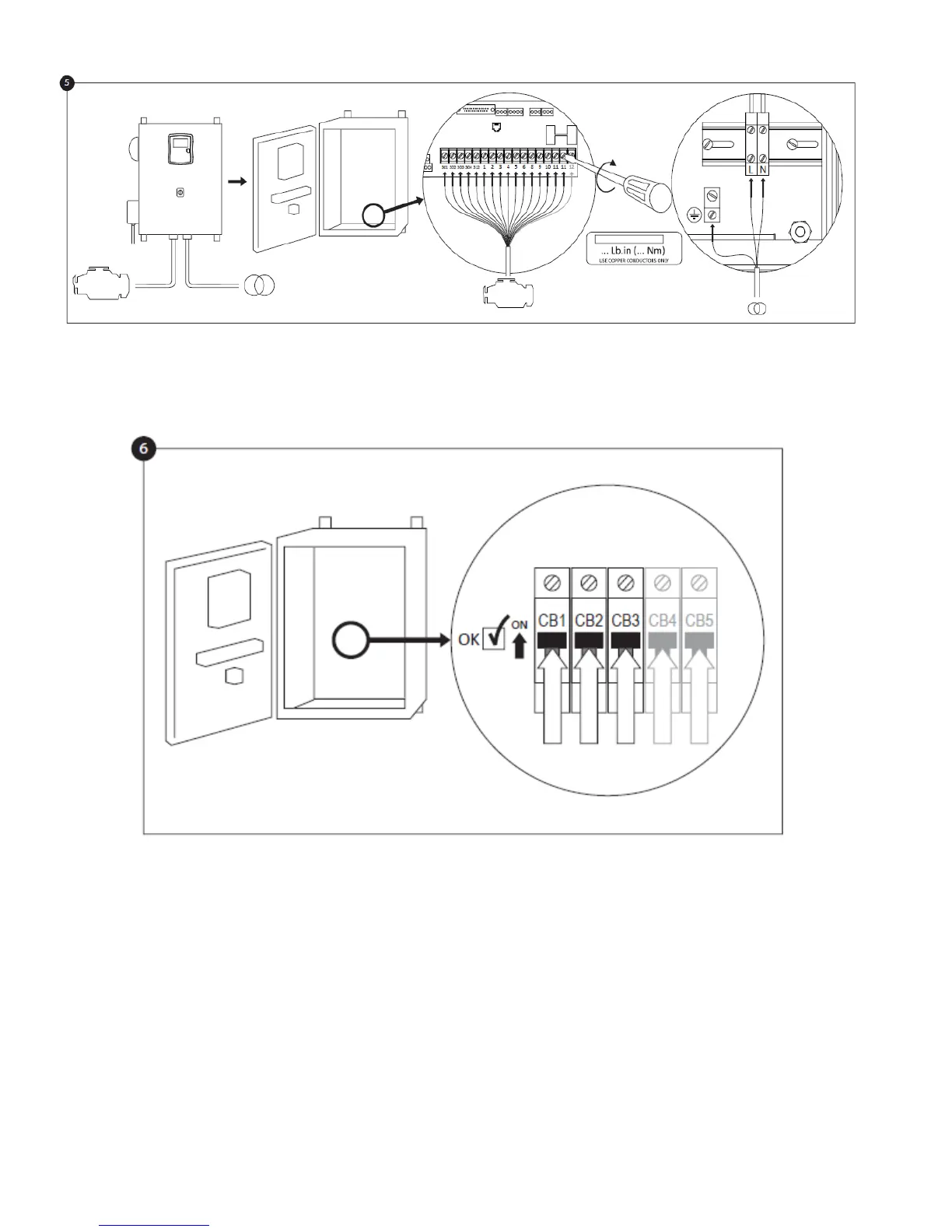

Connect all engine cables between the control panel and the controller engine terminals (Identified as “S” on the IO
board diagram that is displayed in the Terminal Strip Descriptions in the manual). Secure with the appropriate torque
as indicated on the torque label and verify all connections. Connect the AC main lines and ground to the AC
terminals in the controller.
Activate the disconnect switch (if present) and all breakers by setting them to the "on" position. The controller will
boot up for the first time.
