Greensmaster Flex 21Page 7 – 28Cutting Unit (Rev. C)

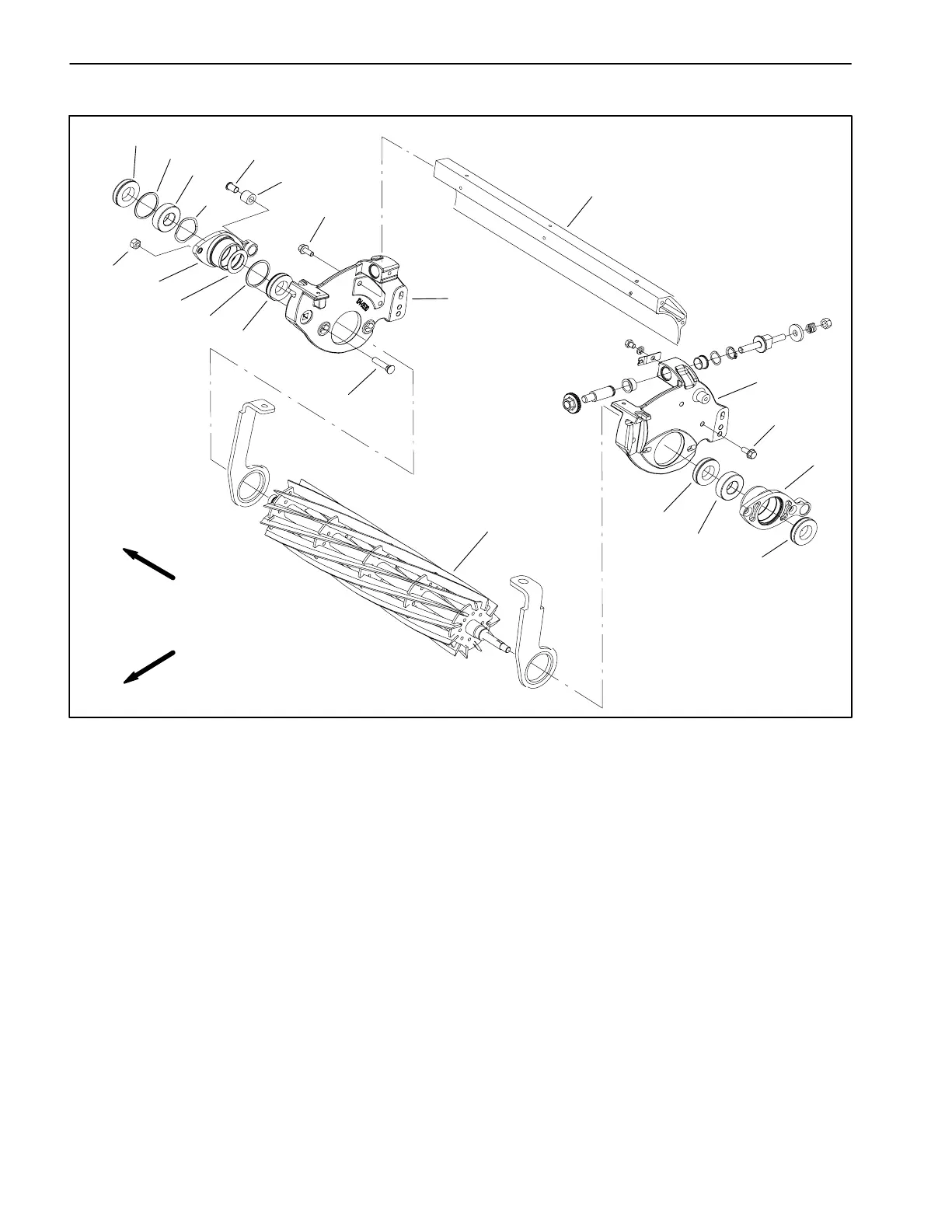

Cutting Reel Bearing Service (Cannister Style Seals)
1. Shield frame
2. Flange head screw (2 used per side)
3. Reel bearing housing
4. Outer reel seal
5. Reel bearing
6. Inner reel seal
7. LH side plate
8. Plow bolt (2 used per side)
9. RH side plate
10. Retaining ring
11. Thrust washer (if equipped)
12. Tapered nut (2 used per side)
13. Wave washer
14. Nylon bushing
15. Bushing
16. Cutting reel
Figure 44
4
10
5
13
14
15
12
10
6
2
2
3
4
5
6
7
8
3
9
1
11
FRONT
RIGHT
16
NOTE: Cutting units with serial numbers below
240001001 were produced with the cannister style reel
seal package shown in Figure 44.
NOTE: To reduce rolling resistance of cutting reel, the
seal package (including seals, v–ring seals, wear
sleeves, reel bearing lock nut and pulley spacer) from
later production machines can be used to replace can-
nister seals (see Cutting Reel Bearing Service (V–Ring
Style Seals) in this section).
