Greensmaster Flex 21Groomer (Model 04201) (Rev. B) Page 8 – 8

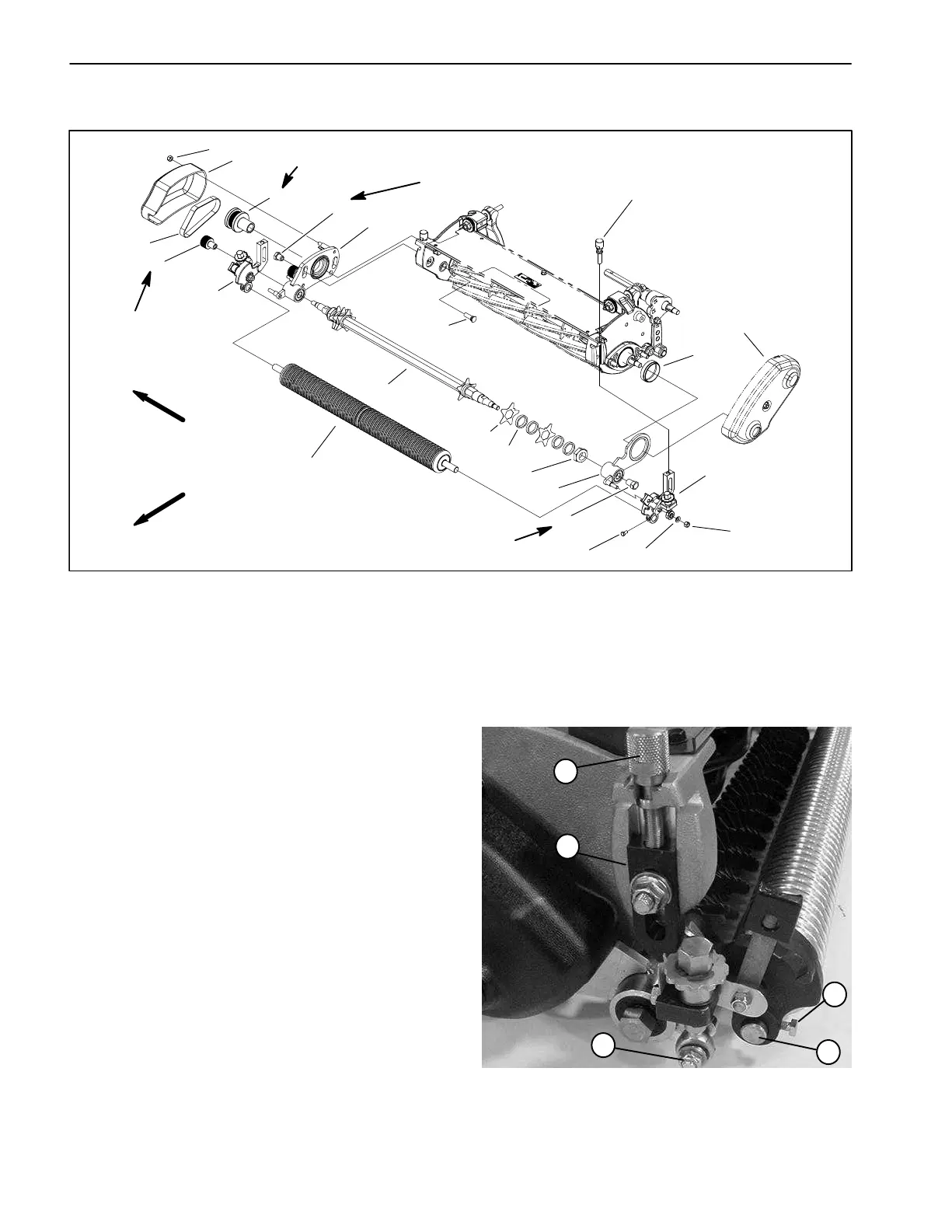

Groomer Reel
Figure 6
1. Groomer shaft
2. RH side plate
3. Drive pulley
4. Groomer belt
5. Driven pulley
6. Groomer belt cover
7. Tapered nut
8. Plow bolt
9. Locknut
10. Cap screw
11. LH side plate
12. LH adjuster arm
13. RH adjuster arm
14. Seal nut
15. Belleville washer
16. Groomer blade
17. Spacer
18. Lock nut
19. Front roller
20. Height–of–cut screw
21. Reel drive cover
22. Spacer
15
12
14
11
2
8
1
13
7
5
3
4
6
9
10
9
18
16
17
19
20
21
FRONT
RIGHT
22
30 to 35 ft–lb
(41 to 47 N–m)
40 to 45 ft–lb
(54 to 61 N–m)
15 to 20 ft–lb
(20 to 27 N–m)
15 to 20 ft–lb
(20 to 27 N–m)
The groomer reel should be removed to reverse the
shaft, replace individual blades, or replace the entire
shaft. The shaft can be reversed so that the sharpest
edge of the blades are forward.
Removal
1. Park mower on a level surface. Make sure engine is
OFF. Remove high tension lead from the spark plug.
2. Remove groomer belt cover and drive belt from right
side of mower (see Drive Belt Replacement).
3. Loosen cap screws securing front roller shaft to RH
(Fig. 7) and LH adjuster arms.
4. Remove locknut and belleville washer securing RH
adjuster arm rod end to RH groomer side plate pin (Fig.
7).
5. Remove carriage bolt, flange nut, and washer secur-
ing RH adjuster arm assembly to mower side plate. Do
not change height–of–cut screw adjustment. Remove
RH adjuster arm.
1. Locknut with belleville washer
2. Front roller shaft
3. Cap screw
4. RH adjuster arm
5. Height–of–cut screw
Figure 7
3
2
4
5
1
