Greensmaster Flex 21 Page 7 – 5 Cutting Unit (Rev. C)

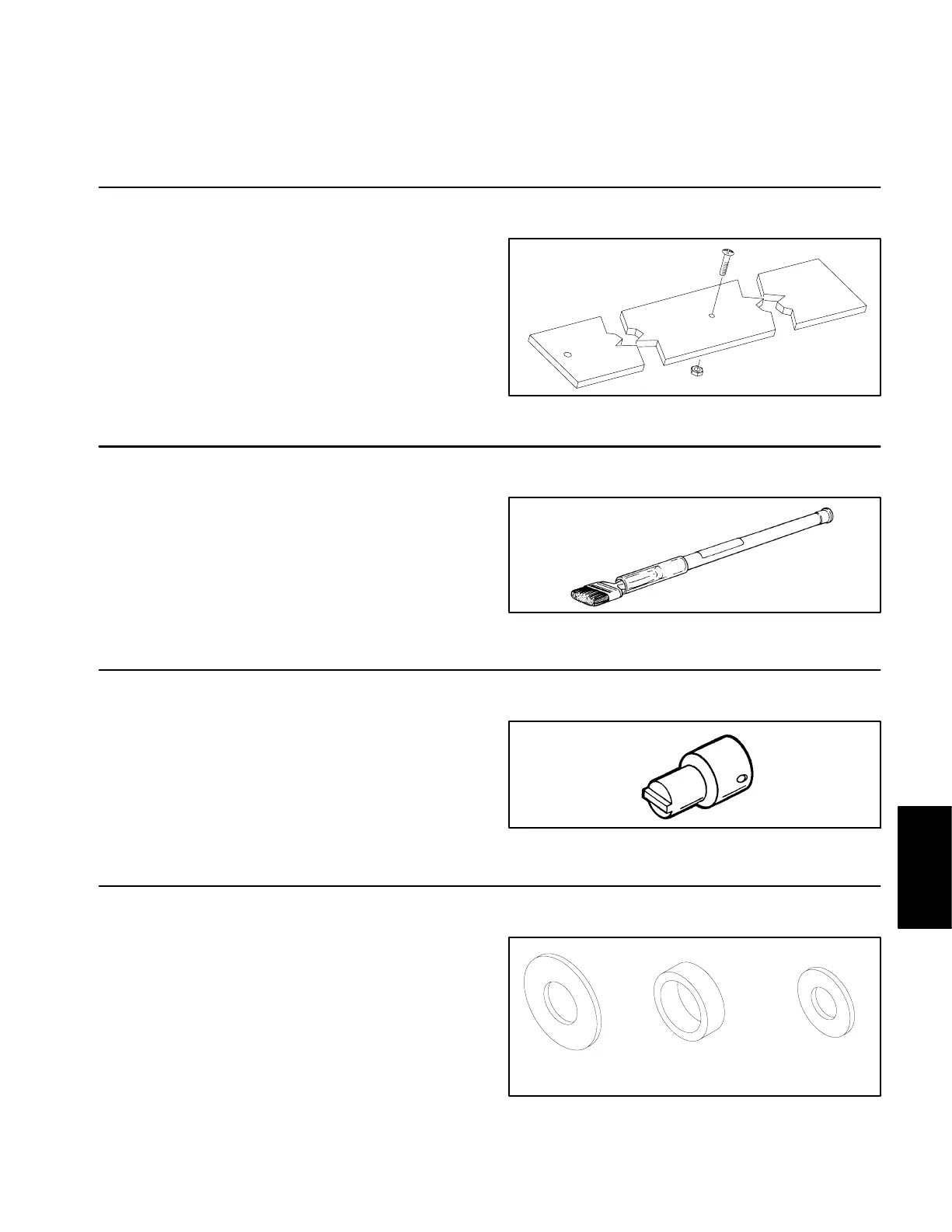

Special Tools
Order special tools from the TORO SPECIAL TOOLS
AND APPLICATIONS GUIDE (COMMERCIAL PROD-
UCTS).
Some tools may have been supplied with your mower or
available as TORO parts. Some tools may also be avail-
able from a local supplier.
Gauge Bar Assembly (13–8199)
Used to verify height–of–cut.
Figure 5
Backlapping Brush Assembly (TOR299100)
Used to apply lapping compound to cutting units while
keeping the operator’s hands at a safe distance from the
rotating reel.
Figure 6
Bedknife Screw Tool (TOR510880)
This screwdriver–type bit is made to fit Toro bedknife at-
taching screws. Use this bit with a 3/8” drive torque
wrench to secure the bedknife to the bedbar.
DO NOT use an air or manual impact wrench with this
tool.
Figure 7
Roller Bearing Installation Tools
Washers and spacer used to install bearings and seals
into front and rear rollers that have a threaded roller
shaft.
Seal installation washer (black): # 107–8133
Seal installation spacer: # 107–3505
Bearing installation washer (yellow): # 104–6126
Figure 8
Seal Installation
Washer
Seal Installation
Bearing Installation
Washer
Spacer
Cutting Unit
