Toro 04021 Service Manual

Greensmaster Flex 21Traction and Reel Drive System (Rev. C) Page 4 – 10

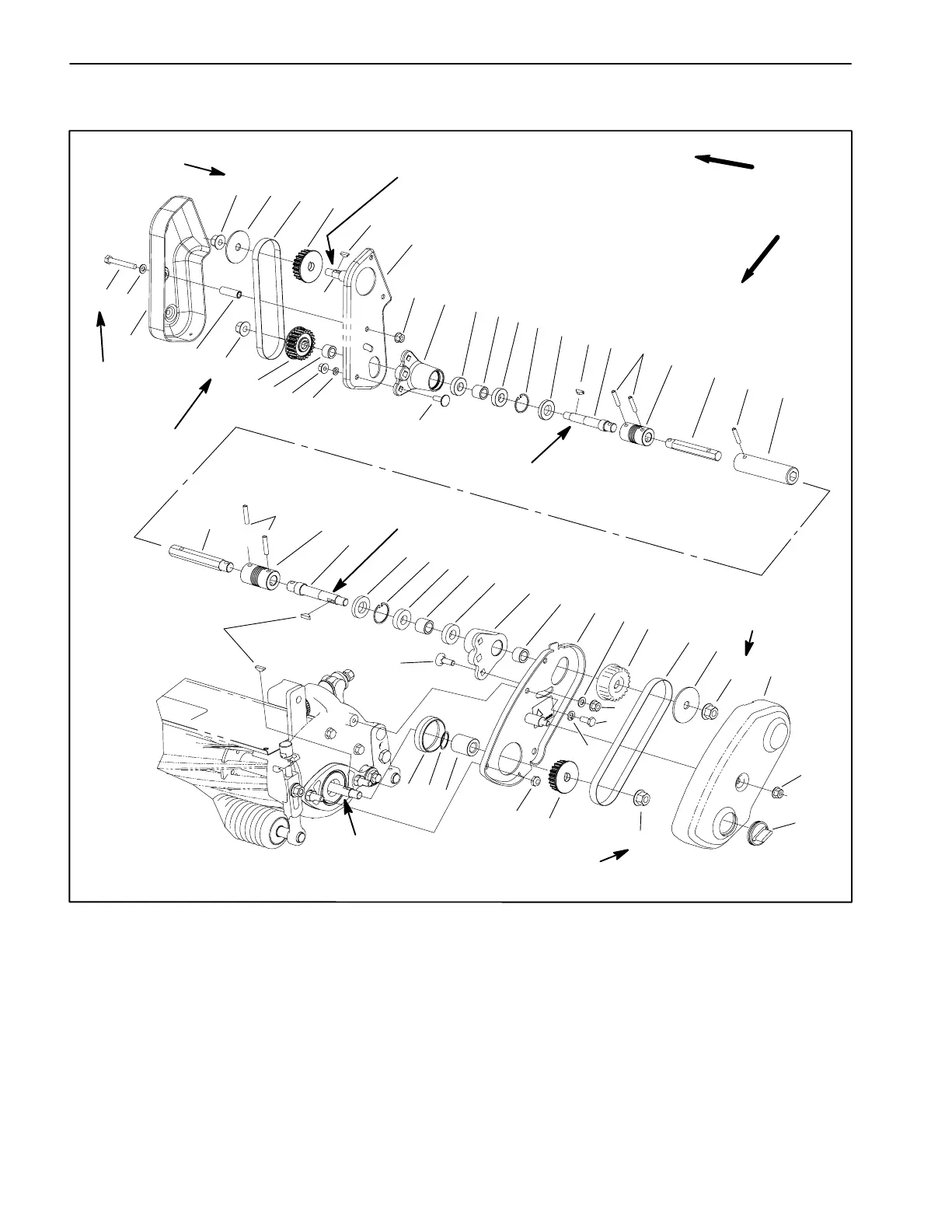

Reel Drive Assembly
1. Hex shaft
2. Flex coupling
3. Spring pin
4. Shaft
5. Oil seal
6. Retaining ring
7. Bearing
8. Spacer
9. Carriage screw
10. Bearing housing
11. Spacer
12. Flange nut
13. Flat washer
14. Woodruff key
15. Pulley (22 tooth)
16. Belt
17. Flange nut
18. Pulley washer
19. Belt cover assembly
20. Cap screw
21. Flat washer
22. Cover spacer
23. Hex tube
24. Drive shaft plate assembly
25. Gearbox shaft
26. Reel drive plate assembly
27. Reel drive cover
28. Lock nut
29. Spacer
30. Spacer
31. Lock washer
32. Cap screw
33. Plug
34. Retaining ring (if equipped)
Figure 16
3
1
2
3
4
5
6
7
8
7
10
11
15
16
17
15
12
9
13
FRONT
RIGHT
Anti–seize lubricant
100 in–lb
(114 kg–cm)
1
3
2
4
5
6
7
8
7
10
11
15
13
16
9
15
17
17
17
18
18
12
12
12
14
14
14
19
20
21
22
23
25
24
26
27
28
29
30
31
32
33
Anti–seize lubricant
Anti–seize lubricant
Anti–seize lubricant
34
40 to 50 ft–lb
(54 to 68 N–m)
40 to 50 ft–lb
(54 to 68 N–m)
40 to 50 ft–lb
(54 to 68 N–m)
40 to 50 ft–lb
(54 to 68 N–m)
