Greensmaster Flex 21 Groomer (Model 04204) (Rev. B)Page 9 – 3
General Information
Transport Mode
IMPORTANT: Before changing groomer position,
make certain that the reel drive lever is in the disen-
gaged position and that the cutting reel is not rotat-
ing.
IMPORTANT: When transporting the mower, make
sure the cutting unit is disengaged and the groomer
reel is raised to its transport position.
To place the groomer reel in the raised, transport posi-
tion, remove the lock screw and rotate the lift arm to
raise the groomer reel. Install the lock screw to retain the
groomer reel in the transport position (Fig. 1).
To place the groomer reel in the lowered, grooming posi-
tion, remove the lock screw and rotate the lift arm to low-
er the groomer reel. Install the lock screw to retain the
groomer reel in the grooming position (Fig. 2).

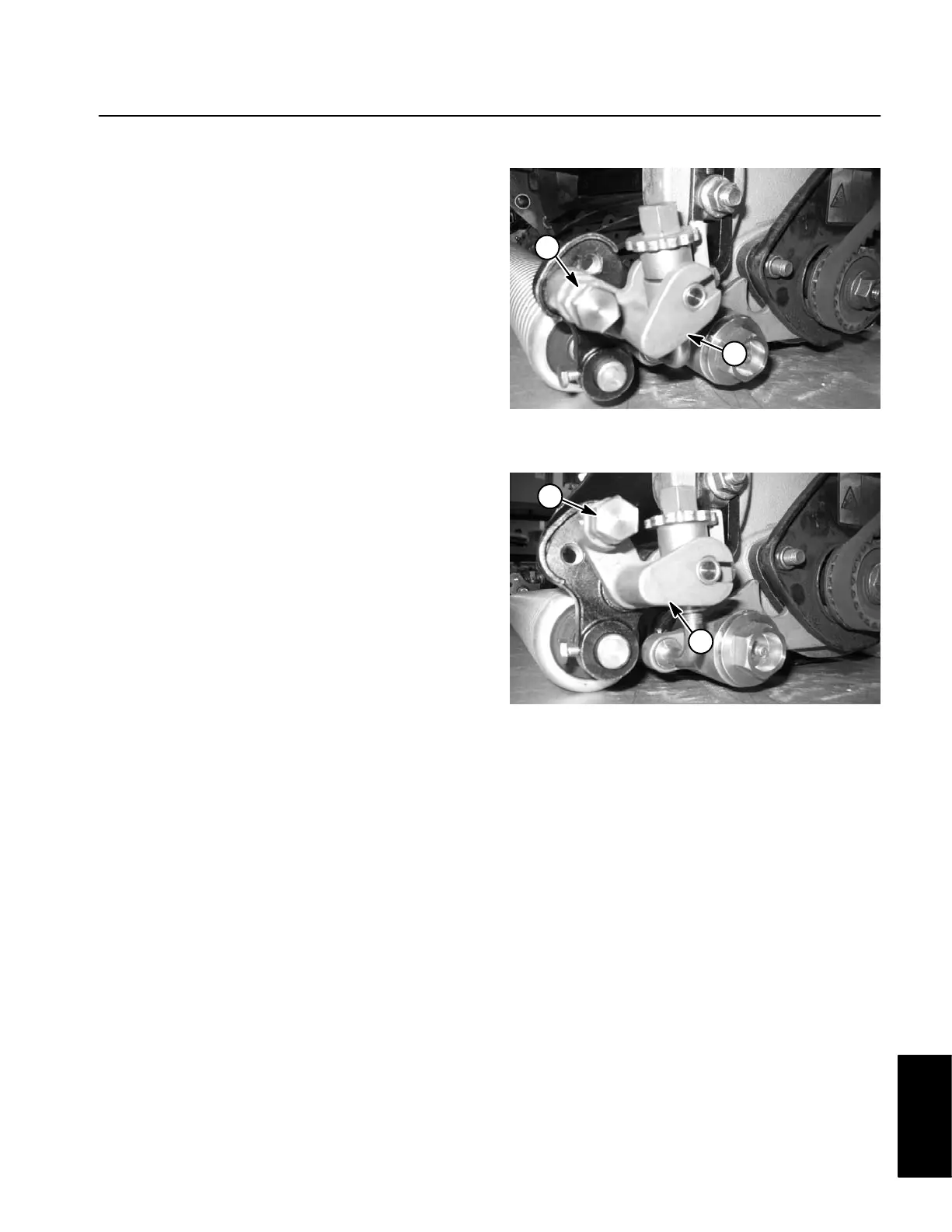

1. Lift arm 2. Lock screw (transport)
Figure 1
1
2
1. Lift arm 2. Lock screw (grooming)
Figure 2
1
2
Groomer Reel
(Model 04204)
