Greensmaster Flex 21Page 7 – 30Cutting Unit (Rev. C)

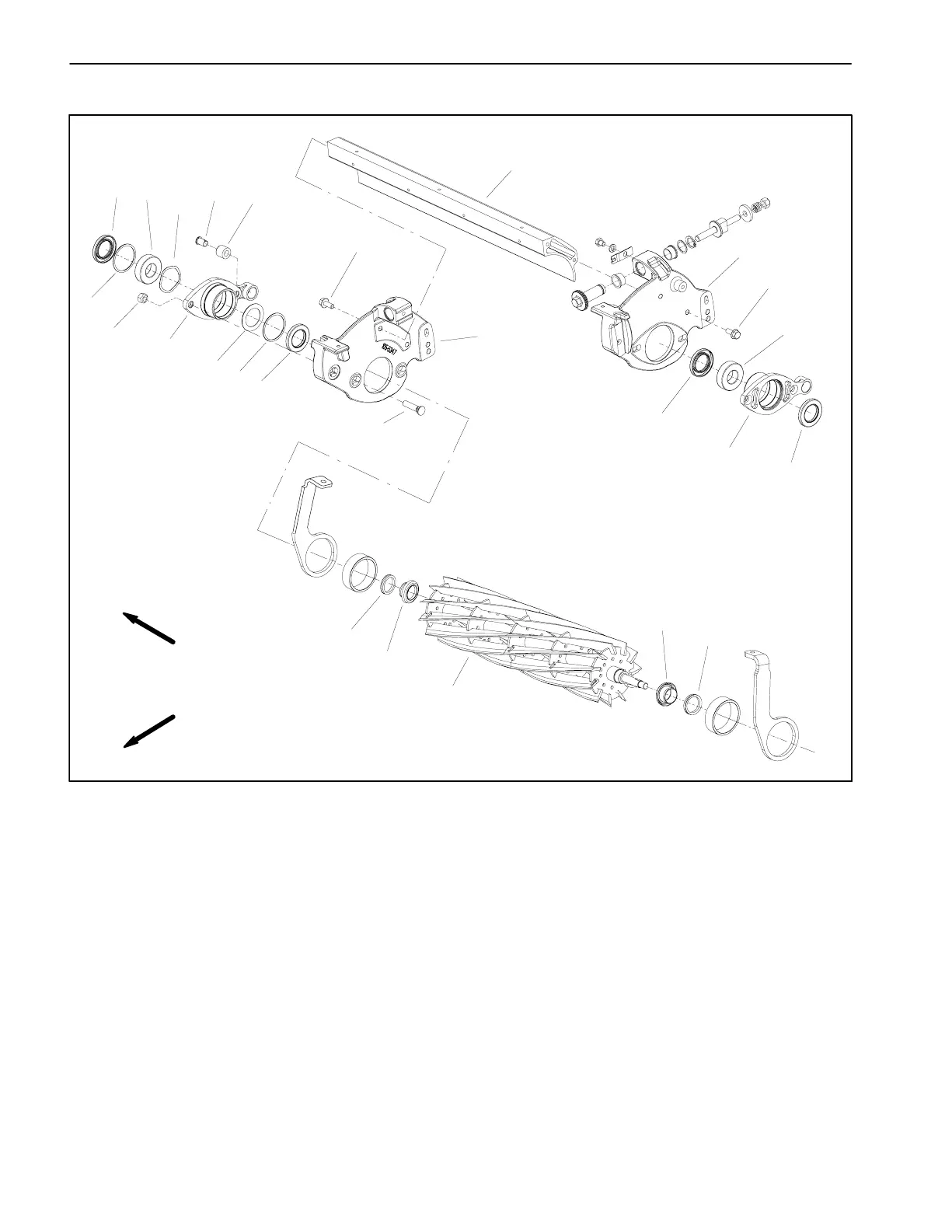

Cutting Reel Bearing Service (V–Ring Style Seals)
1. Shield frame
2. Flange head screw (2 used per side)
3. Reel bearing housing
4. Reel seal
5. Reel bearing
6. LH side plate
7. Plow bolt (2 used per side)
8. RH side plate
9. Retaining ring
10. Thrust washer
11. Tapered nut (2 used per side)
12. Wave washer
13. Nylon bushing
14. Bushing
15. Cutting reel
16. Wear sleeve
17. V–Ring seal
Figure 45
FRONT
RIGHT
1
2
3
4
5
6
7
10
2
8
3
9
11
4
5
13
14
12
4
4
9
15
16
17
17
16
NOTE: Cutting units with serial numbers above
240001000 were produced with the v–ring style reel
seal package shown in Figure 45.
NOTE: Cutting units that were originally equipped with
cannister type seals can be converted to use the v–ring
style seal package shown. Such a conversion requires
that reel seals, v–ring seals, wear sleeves, reel bearing
lock nut and pulley spacer be installed.
