Toro 04021 Service Manual

Greensmaster Flex 21Traction and Reel Drive System (Rev. C) Page 4 – 30

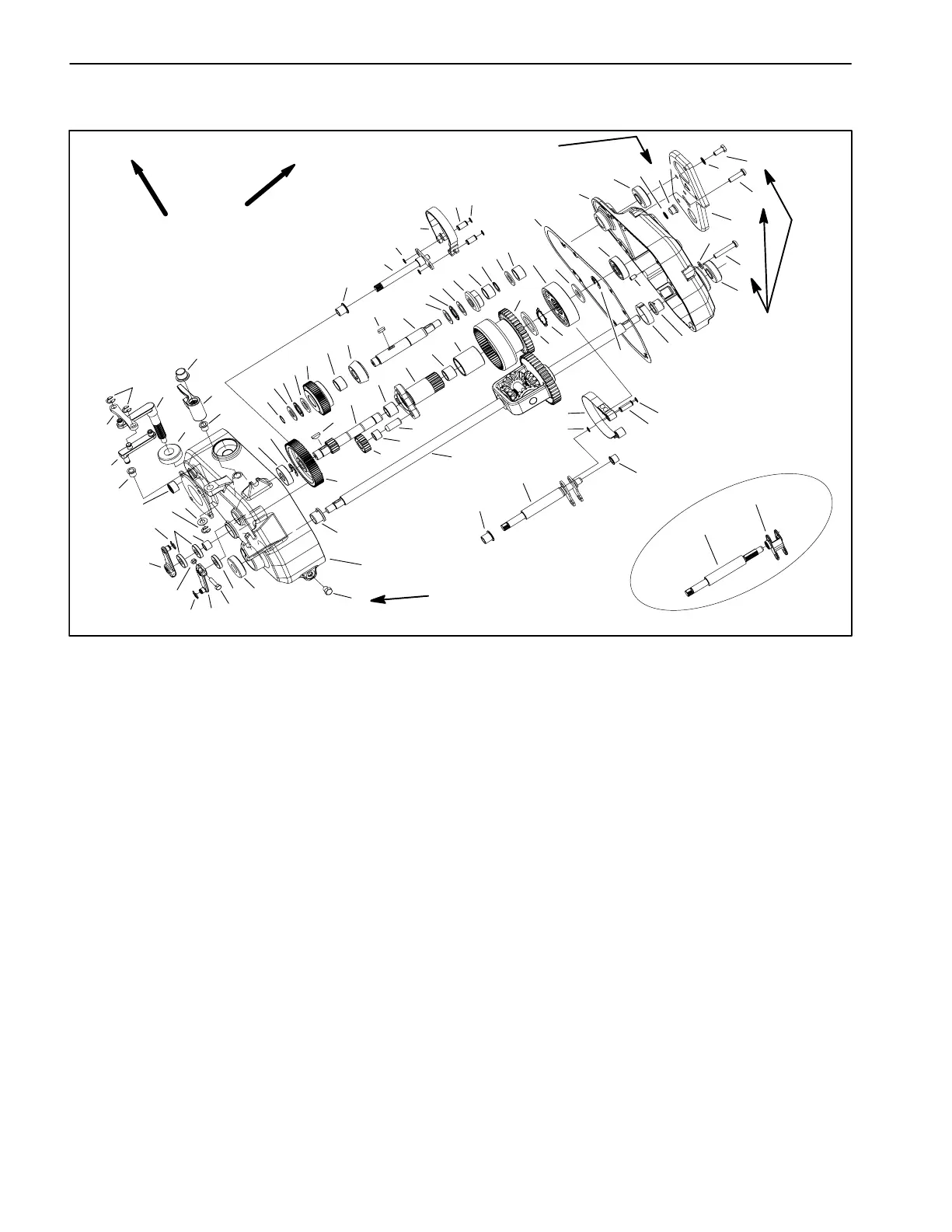

Gearbox Assembly
1. Gearbox base
2. Ball bearing
3. Caged needle bearing
4. Bushing
5. Bushing
6. Bushing
7. Bushing
8. Keyed flanged bushing
9. Oil seal
10. Oil seal
11. Dowel pin
12. Drain plug
13. Snap ring
14. Clutch fork
15. Fork shaft
16. Thrust washer
17. Bellcrank
18. Link
19. Retaining ring
20. Clutch shaft (reel drive)
21. Retaining ring
22. Thrust washer
23. Thrust bearing
24. Thrust washer
25. Clutch gear
26. Needle bearing
27. Square key (2 used)
28. Cone assembly
29. Lock nut
30. Plunger hub
31. Cap screw
32. Thrust washer
33. Flat washer
34. Sun gear
35. Woodruff key
36. Input gear
37. Carrier bushing
38. Planet gear carrier
39. Flanged bushing
40. Needle bearing
41. Planet gear
42. Roller bearing
43. Ring gear
44. Clevis pin
45. Brake band
46. Brake shaft
47. Clevis pin
48. Hollow hex plug
49. Thrust washer
50. Traction drum assembly
51. Thrust washer
52. Cap screw
53. Traction band assembly
54. Traction shaft (SN below 230000001)
55. Ball bearing
56. Retaining ring
57. Differential assembly (traction drive)
58. Gasket
59. Gearbox cover
60. Keyed bushing
61. E–ring
62. Gearbox lever
63. Socket head screw
64. Socket head screw
65. Drive shaft plate assembly
66. Internal lock washer
67. Oil seal (red/orange color)
68. O–ring
69. Dowel pin
70. Wave washer (if equipped)
71. Traction shaft (SN above 230000000)
72. Hub (SN above 230000000)
Figure 40
63
64
65
33
9
48
67
59
58
8
60
2
61
51
50
49
43
40
37
40
38
34
69
42
41
35
36
61
55
11
8
57
7
54
39
53
44
56
9
19
62
10
19
16
6
3
4
17
18
19
15
9
5
14
4
21
22
23
32
25
26
28
24
23
24
7
20
27
46
56
45
47
56
30
26
13
32
26
62
10
56
12
29
31
1
52
66
19
68
FRONT
RIGHT
85 to 105 in–lb
(97 to 124 kg–cm)
240 in–lb
(276 kg–cm)
120 to 140 in–lb
(137 to 159 kg–cm)
70
71
72
NOTE: It is possible to separate the gearbox cover from
the base while the gearbox is still installed on the traction
unit. The traction band, planetary assembly and reel
drive clutch shaft assembly can be removed from the
gearbox in this manner, if necessary. Service to the dif-
ferential, bushings and bearings requires removal of the
gearbox from the traction unit.
