g014620
1
2

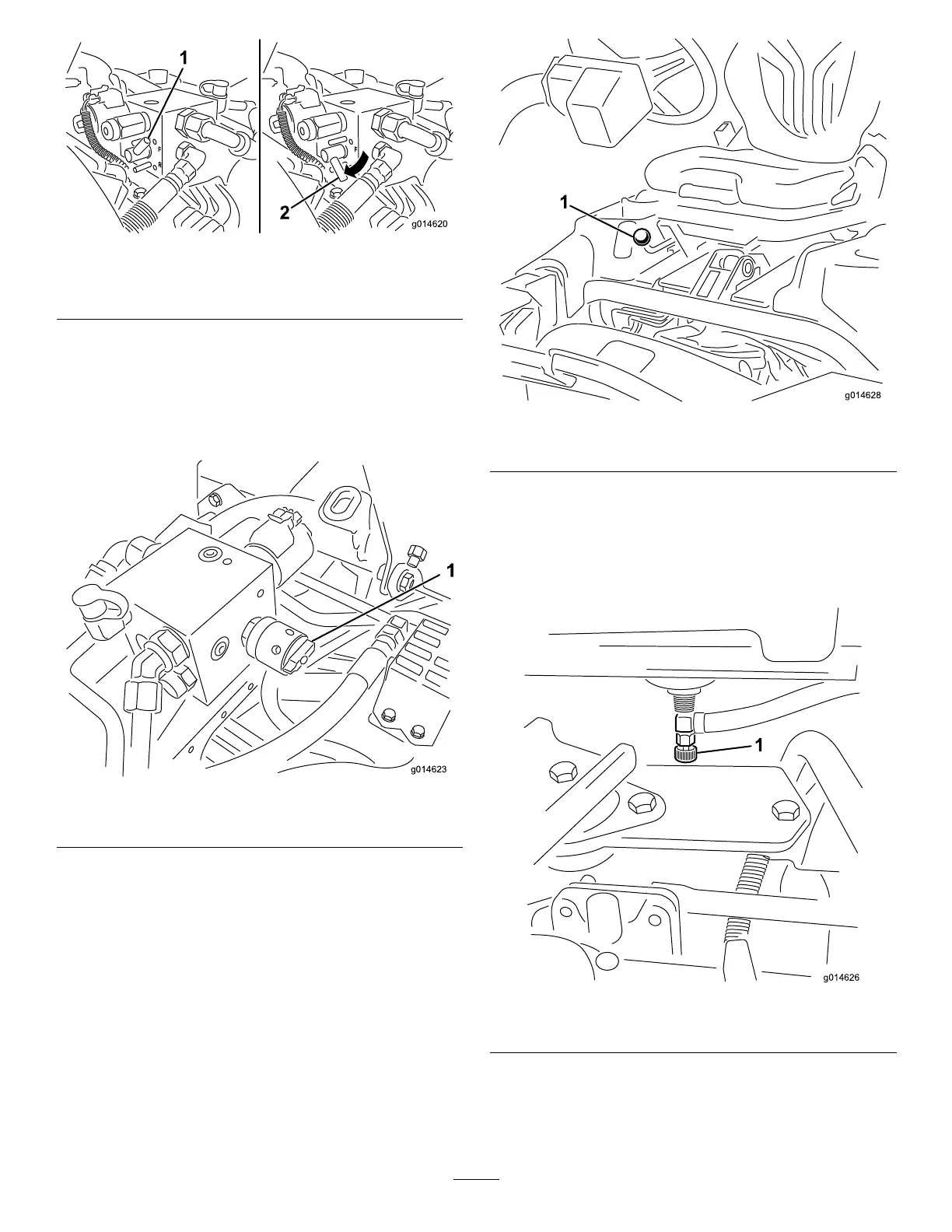

Figure20
1.Backlaplever—mow
position
2.Backlaplever—backlap
position
ReelSpeedControl
Thereelspeedcontrolislocatedundertheplastic
covertotheleftoftheseat.Usethereelspeedcontrol
(
Figure21)toadjusttheRPMofthereels.
g014623
1
Figure21
1.Reelspeedcontrol
SeatAdjustingLever
Theseatadjustingleverislocatedonthefront,right
corneroftheseat(Figure22),allowingyoutoadjust
theseatforeandaft.
Note:Ifyouneedadditionaladjustmentontheseat,
youcanremovethefourboltssecuringtheseattothe
baseandmovetheseattothesecondsetofmounting
holesprovided.
g014628
1
Figure22
1.Seatadjustinghandle
FuelShut-OffValve
Closethefuelshut-offvalve(Figure23),behindtheseat
andunderthefueltank,whenstoringortransporting
themachineonatruckortrailer.
g01462 6
1
Figure23
1.Fuelshut-off(underthefueltank)
22
