Toro 04591 - Page 48

g322517

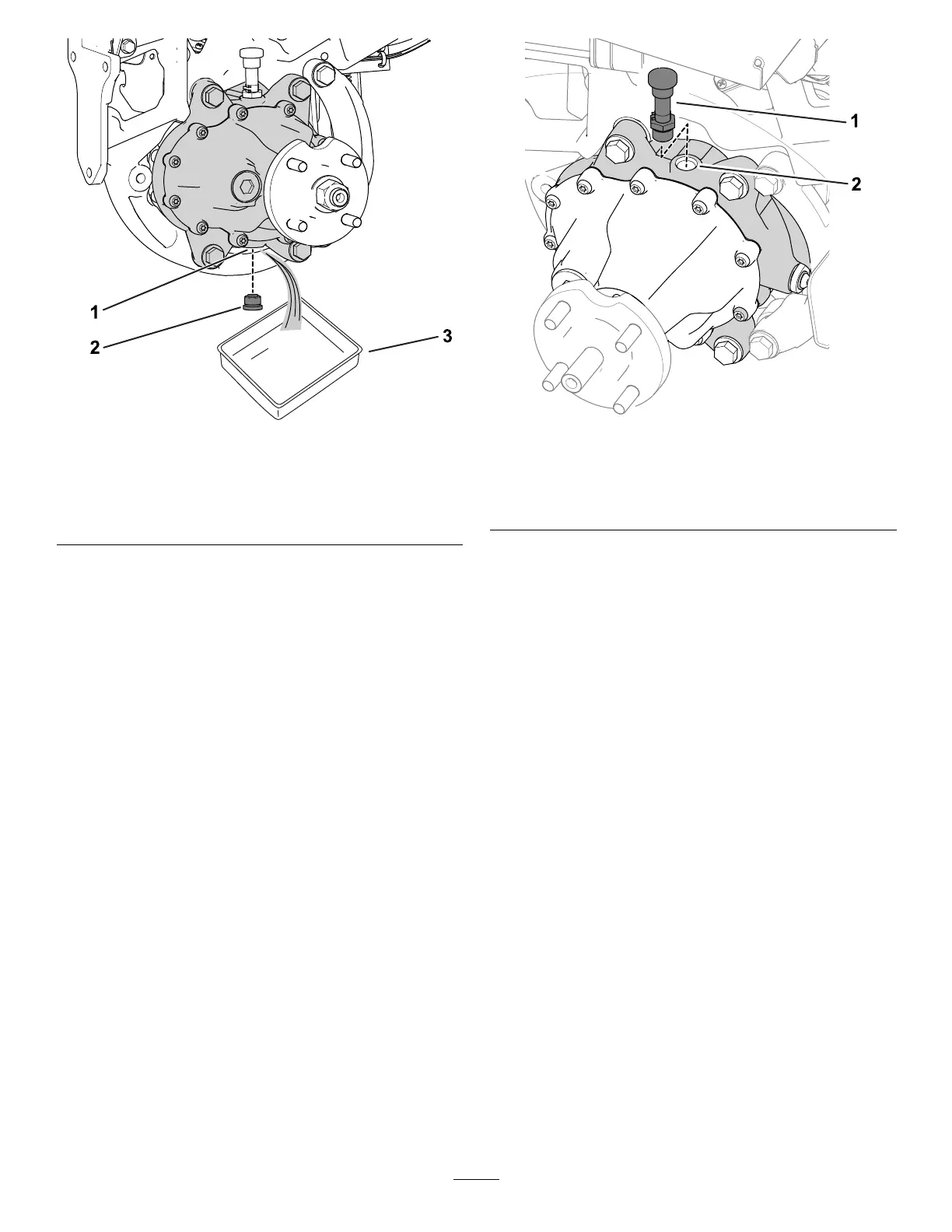

Figure 49
Left side of the machine shown
1. Drain port 3. Pan
2. Drain plug
4. Remove the plug from the drain port ( Figure 49 ).
Note: The drain port is located on the bottom of
the gearbox.
Note: Allow the oil to drain completely from
the gearbox.
5. Clean the plug.
6. Install the drain plug into the drain port ( Figure
49 ).
7. Remove the vent hose and tting from the top of
the gearbox ( Figure 50 ).
g322518
Figure 50
1. V ent hose and tting
2. Fill port
8. Fill the gearbox with 384 ml (13  oz) of the
specied uid through the ll port.
9. Install the vent hose and tting into the ll port
( Figure 50 ).
10. Perform the following steps to install the tires:
A. Slide the left and right tires on to the wheel
hubs.
B. Install the wheel lug nuts ( Figure 48 ).
C. T orque the wheel lug nuts to the specied
torque indicated in Checking the T orque of
the Wheel Nuts ( page 47 ) .
48
