Toro 04591 User Manual

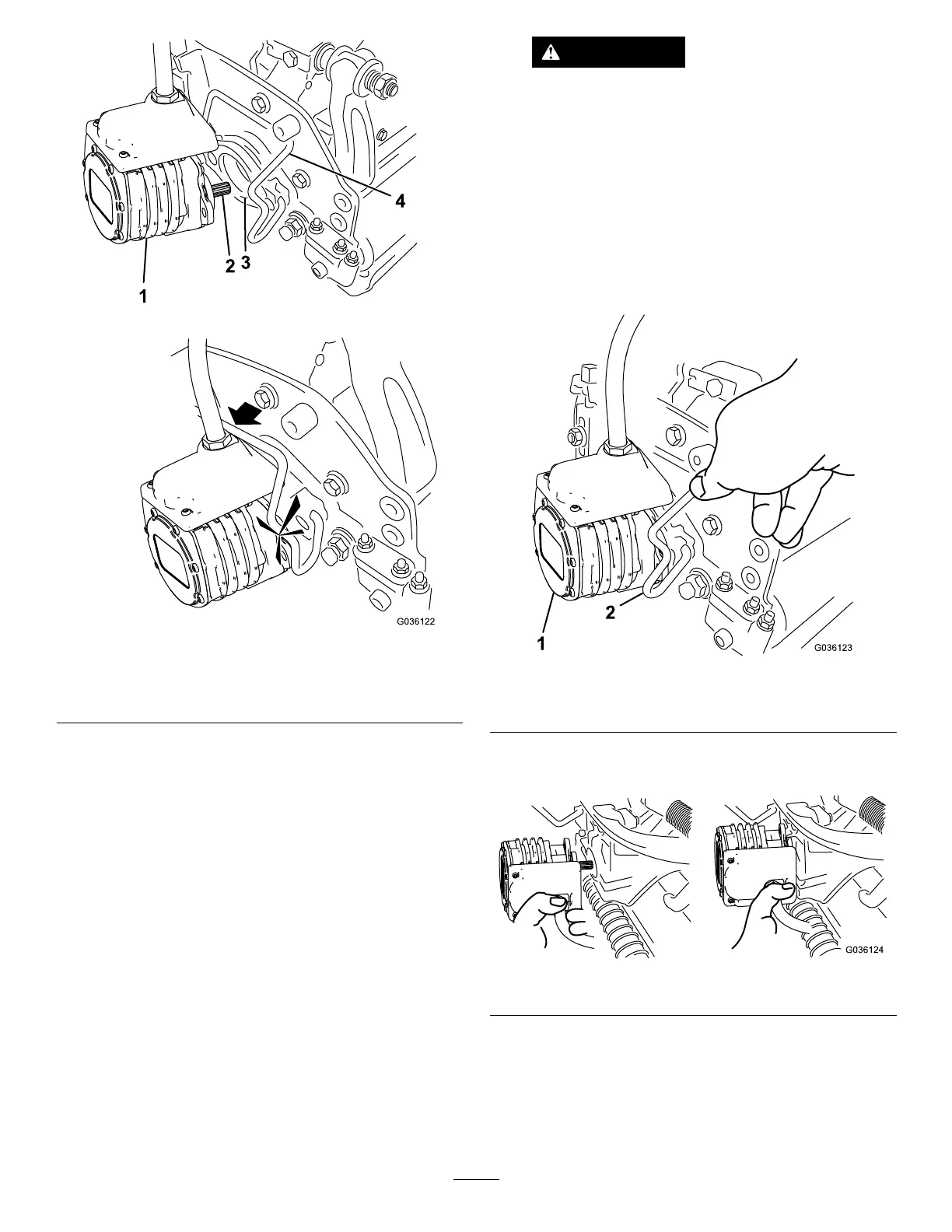

g036122
Figure 55
1. Reel motor
3. Cavity
2. Spline shaft
4. Motor-retaining bar
8. Mount a grass basket onto the basket hooks on
the suspension arm.
9. Repeat this procedure for the other cutting units.
10. Connect the main-power connectors; refer to
Main-Power Connectors ( page 23 ) .
Removing the Cutting Units
1. Park the machine on a clean, level surface,
set the function-control switch to the N EUTRAL
position and use the lift/lower joystick to lower
the cutting units.
2. Engage the parking brake, shut of f the machine,
and remove the key .
3. Disconnect the main-power connectors; refer to
Main-Power Connectors ( page 23 ) .
W ARNING
If you do not disconnect the power to the
machine, someone could accidentally
start the cutting units, causing serious
injury to hands and feet.
Always separate the disconnect the
main-power connectors before working
on the cutting units.
4. Push the motor retaining bar out of the slots on
the motor toward the cutting unit and remove
the motor from the cutting unit.
g036123
Figure 56
1. Reel motor 2. Motor-retaining bar
5. Move the motor to the storage location on the
front of the suspension arm ( Figure 57 ).
g036124
Figure 57
Note: When sharpening, setting the
height-of-cut, or performing other maintenance
procedures on the cutting units, store the cutting
unit reel motors in the storage location on the
front of the suspension arms to prevent damage
to them.
51
