ChuteAssemblyInstallation(continued)

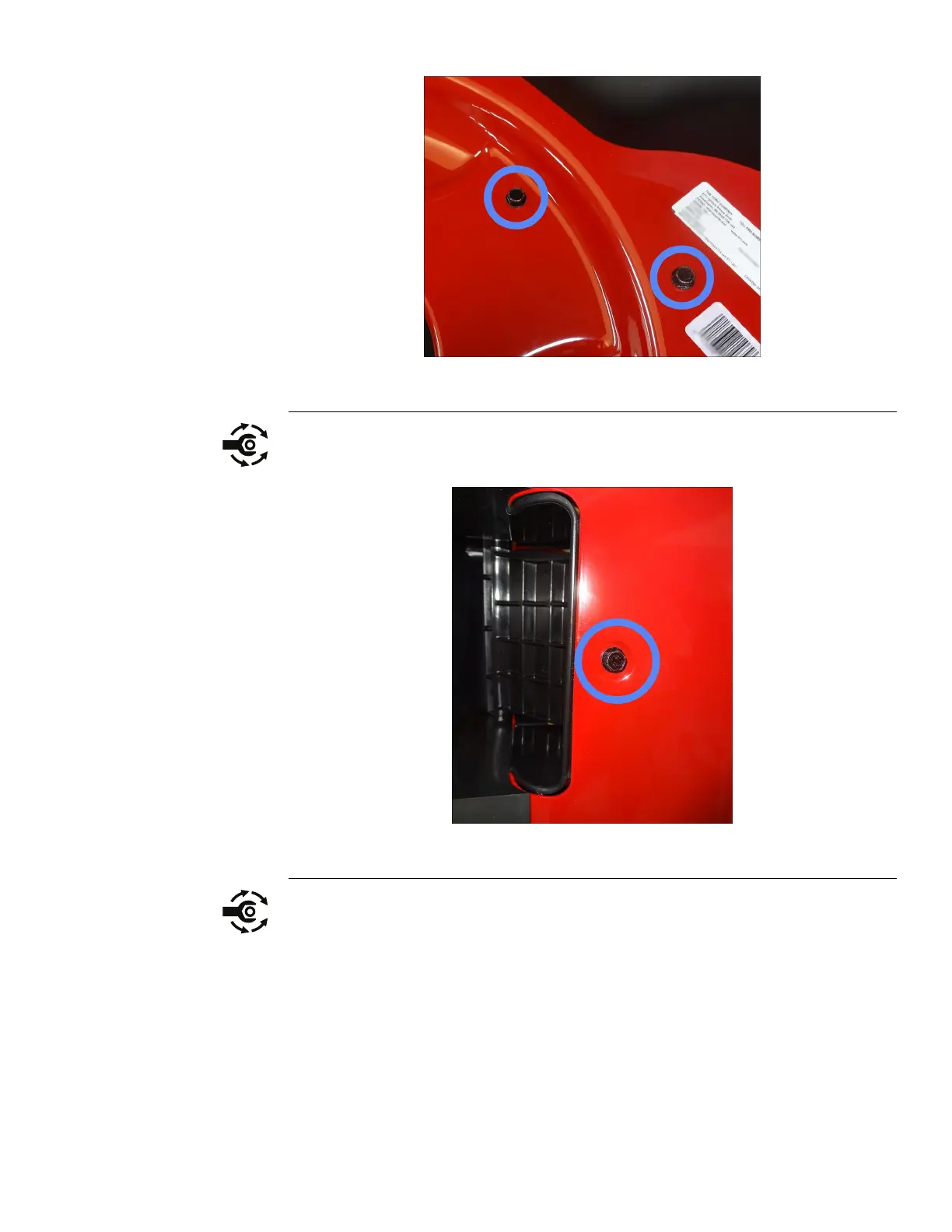

g352577
Figure121
3.Installthebafetothedeck,securewiththe(1/4–10inch)rearscrew.T orque
thescrewsto3.39±0.45N•m(30±4in-lbs).
g352576
Figure122
4.Installthe2(1/4–10inch)LHscrewssecuringtherearbafetothedeck.
Torquethescrewsto3.39±0.45N•m(30±4in-lbs).RepeatontheRH
sideoftheunit.
22InchAWD/RWDSteelDeckWalkPowerMowerService
Manual
Page6–23
Deck:ServiceandRepairs
3445-579RevA
