Toro 21462 - Controls Assembly

ServiceandRepairs
ControlsAssembly

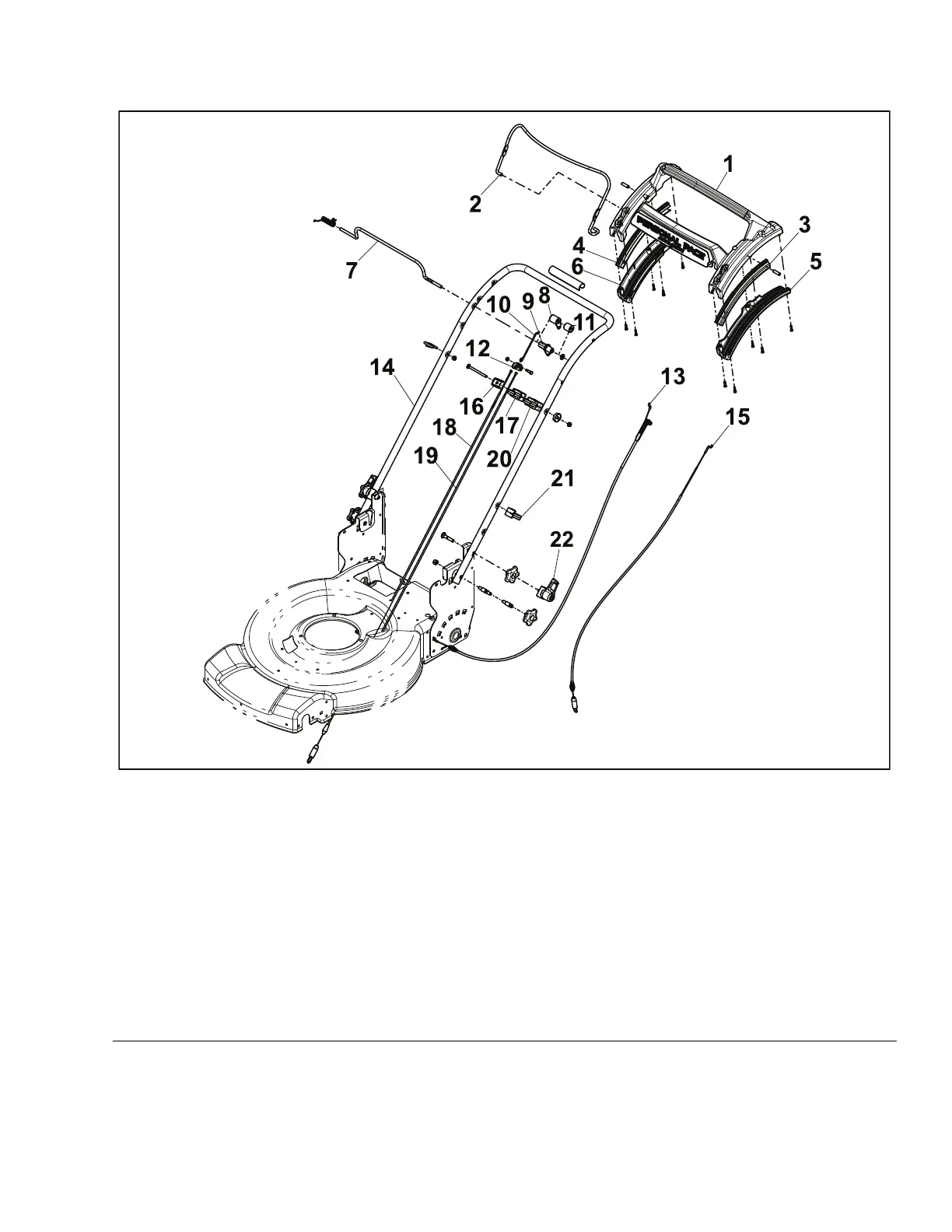

g352313
Figure11
1.CurvedPERSONALPACE®Handle12.CableYoke
2.BrakeBail
13.BrakeCable
3.LHCurvedGuide14.CurvedHandle
4.RHCurvedGuide15.RWDTractionCable
5.LHBottomHandle
16.CableClamp
6.RHBottomHandle
17.RWDCableAnchor
7.TractionControlRod18.AWDFrontTractionCable
8.AWDTractionLever
19.AWDRearTractionCable
9.RWDTractionLever
20.AWDCableAnchor
10.EqualizerLinkage
21.QuickReleaseAssembly
11.AWDTractionLeverSpacer
22InchAWD/RWDSteelDeckWalkPowerMowerService
Manual
Page5–3
Controls:ServiceandRepairs
3445-579RevA
