AWDFrontTractionCableInstallation(continued)

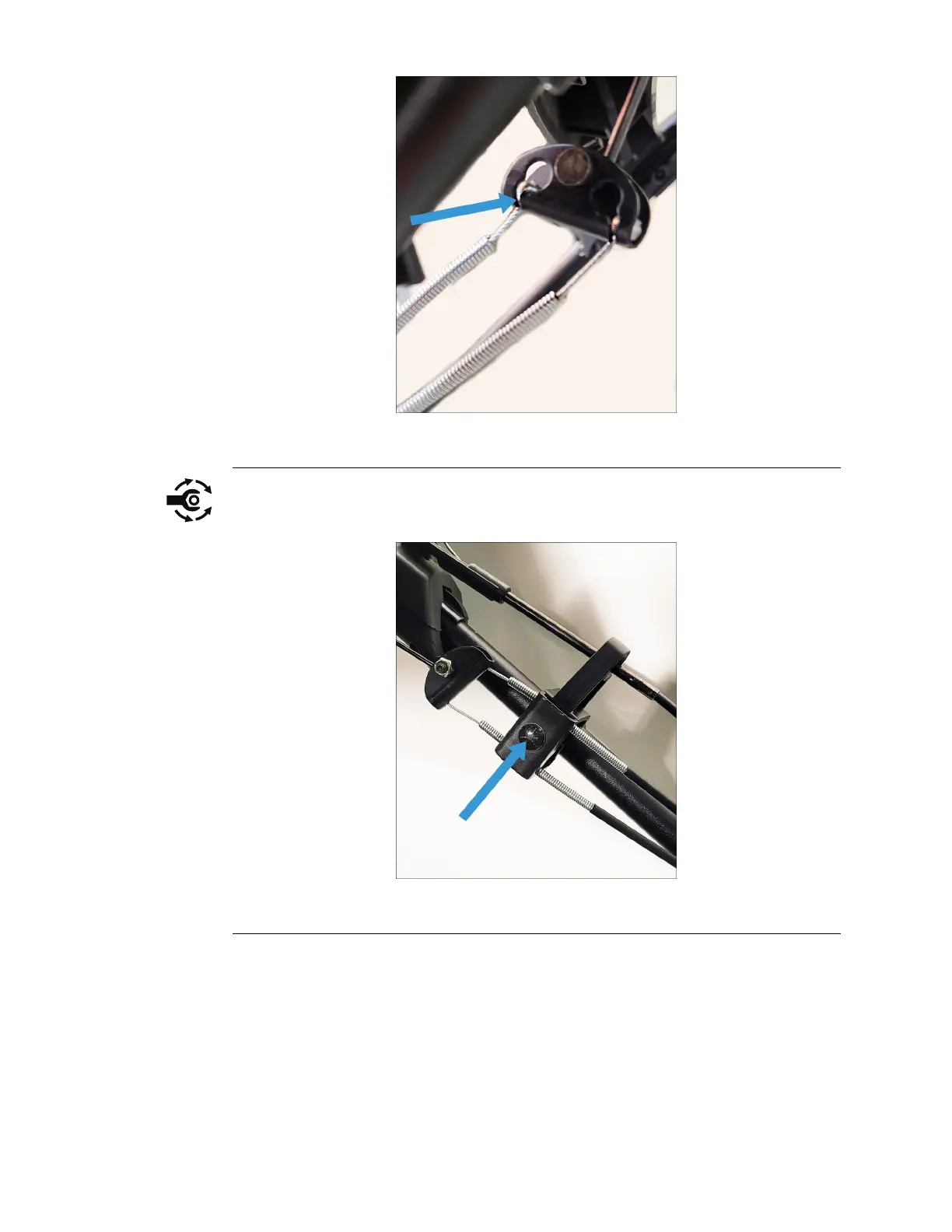

g359932
Figure35
4.Installtheplasticcableclamp,securewiththe(1/4–20inch)carriagebolt,
washer,andnut.Torquethenutto4.52±0.56N•m(40±5in-lbs).
g359929
Figure36
5.Verifythepropercabletensionbymeasuringfromtheendofcableclamp
totheendofthecableconduit.Themeasurementshouldbeapproximately
0.15cm(0.06inches).Adjustmentmaybenecessarydependingonusage.
AWDRearTractionCableReplacement
AWDRearTractionCableRemoval
1.Parkthemachineonalevelsurface,stoptheengineandwaitforallmoving
partstostop.
Controls:ServiceandRepairs
Page5–16
22InchAWD/RWDSteelDeckWalkPower
MowerServiceManual
3445-579RevA
