Toro 21462 - AWD Front Height-of-Cut Replacement

AWDFrontHeight-of-CutReplacement
AWDFrontHeight-of-CutRemoval
1.Parkthemachineonalevelsurface,stoptheengineandwaitforallmoving
partstostop.
2.Removethegrassbaggerassemblyifattached.
3.RemovetheAWDfrontwheels.AWDFrontWheelRemoval(page7–7)
4.RemovethelargesnapringfromtheLHbushingretainer.RepeatontheRH
sideoftheunit.
5.RemovetheLHpivotarmandspringarmfromthetransmission.Repeat
ontheRHsideoftheunit.

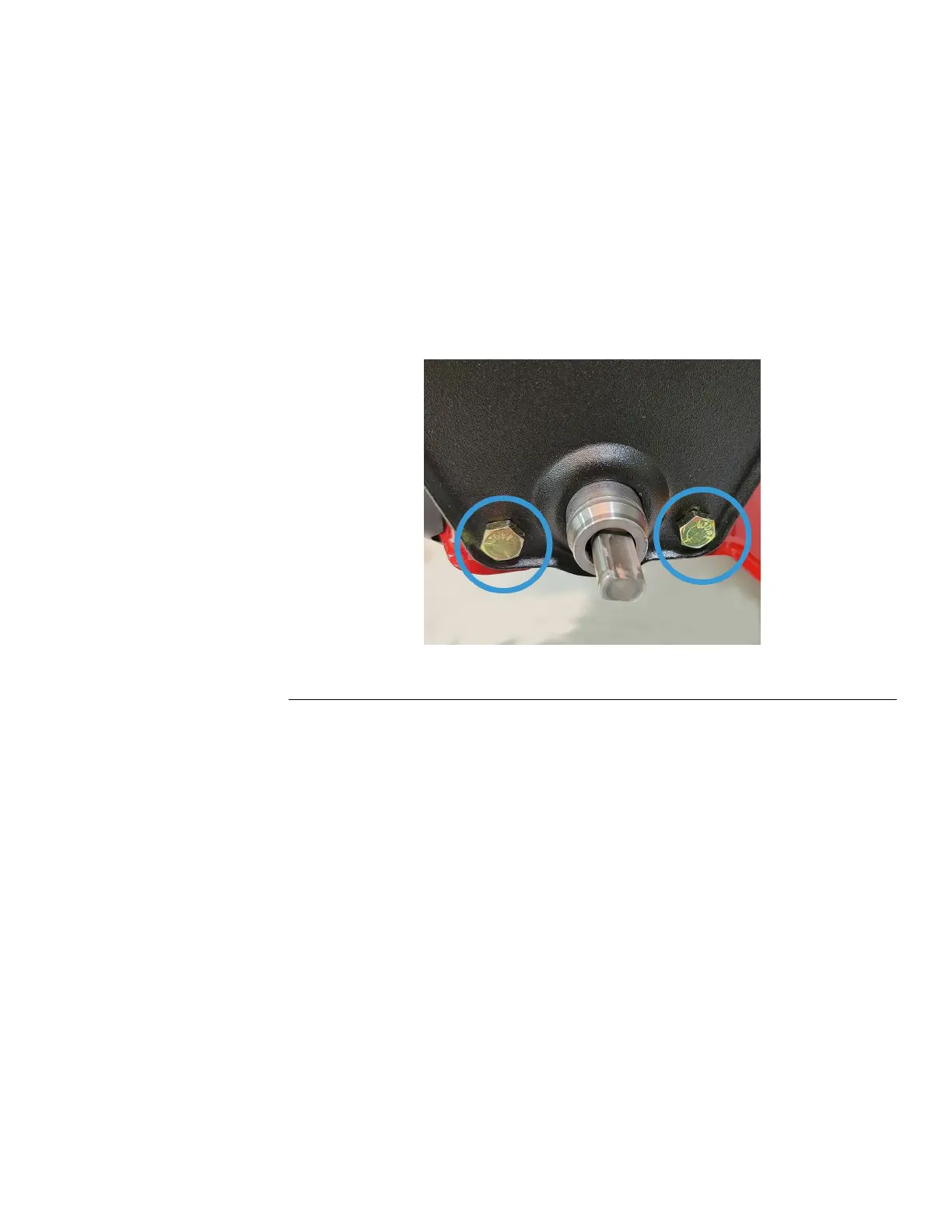

6.Removethe2(½inch)screwssecuringtheLHAWDfrontheight-of-cutplate
tothedeck.RepeatontheRHsideoftheunit.
g360548
Figure101
7.RemovetheLHAWDfrontheight-of-cutplate.RepeatontheRHsideof
theunit.
AWDFrontHeight-of-CutInstallation
1.InstalltheLHAWDfrontheight-of-cutplate,securewith2(½inch)screws.
RepeatontheRHsideoftheunit.
22InchAWD/RWDSteelDeckWalkPowerMowerService
Manual
Page6–11
Deck:ServiceandRepairs
3445-579RevA
