Toro 21462 - AWD Front Traction Cable Replacement

AWDFrontTractionCableReplacement
AWDFrontTractionCableRemoval
1.Parkthemachineonalevelsurface,stoptheengineandwaitforallmoving
partstostop.
2.Removethegrassbaggerassemblyifattached.
3.Removethenutand(1/4–20inch)carriageboltsecuringthecableanchorto
thehandle.

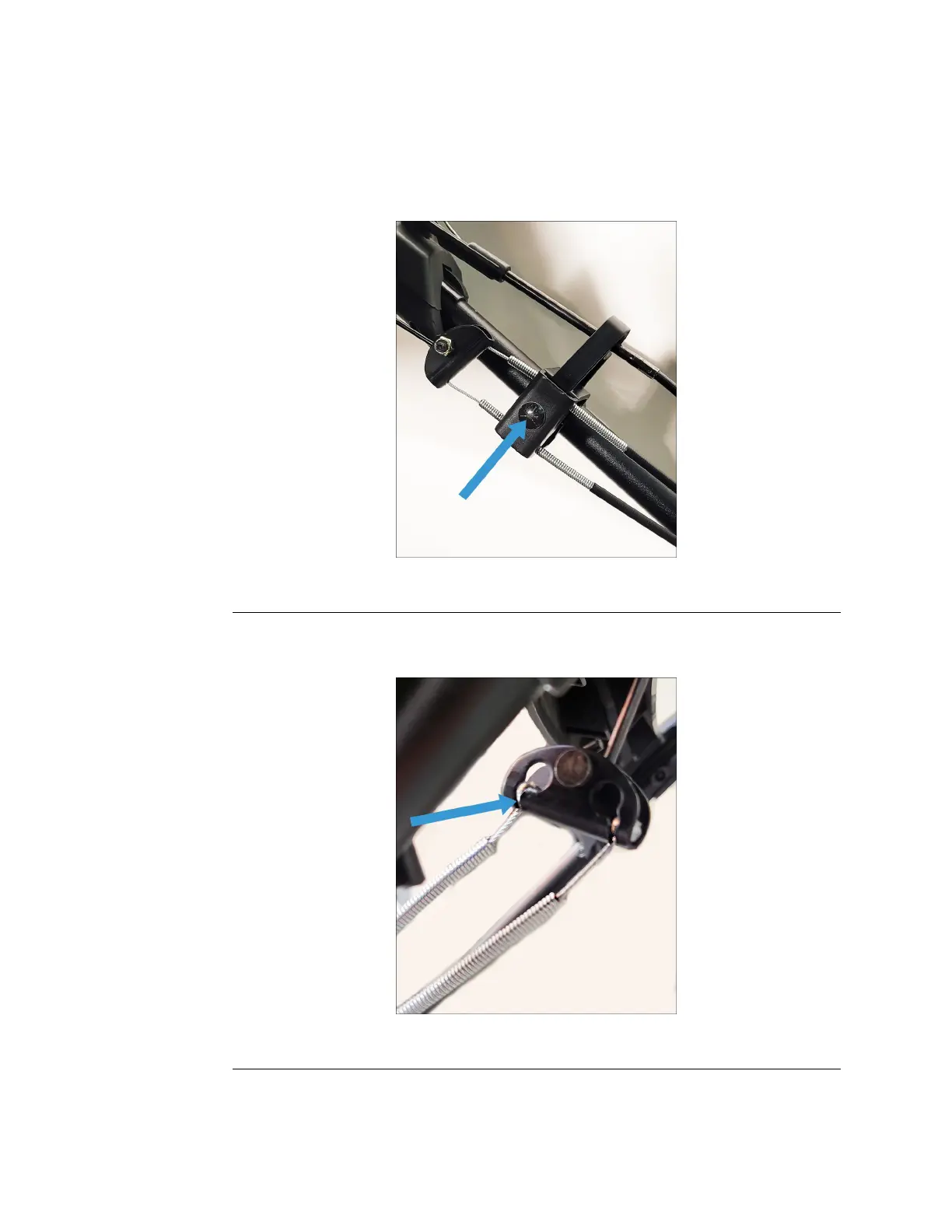

g359929
Figure31
4.Removetheplasticcableclampandwasher.
5.Removethefronttractioncablefromthecableyoke.
g359932
Figure32
6.Removetheupperintakefromthedeck.UpperIntakeRemoval(page6–18)
7.Removethefronttractioncableanchorfromthetransmissionmountandthe
cablereturnspringfromthedeck.
Controls:ServiceandRepairs
Page5–14
22InchAWD/RWDSteelDeckWalkPower
MowerServiceManual
3445-579RevA
