Toro 21462 - Battery Assembly Replacement

ElectricStarterInstallation(ElectricStartModelsOnly)(continued)
g353635

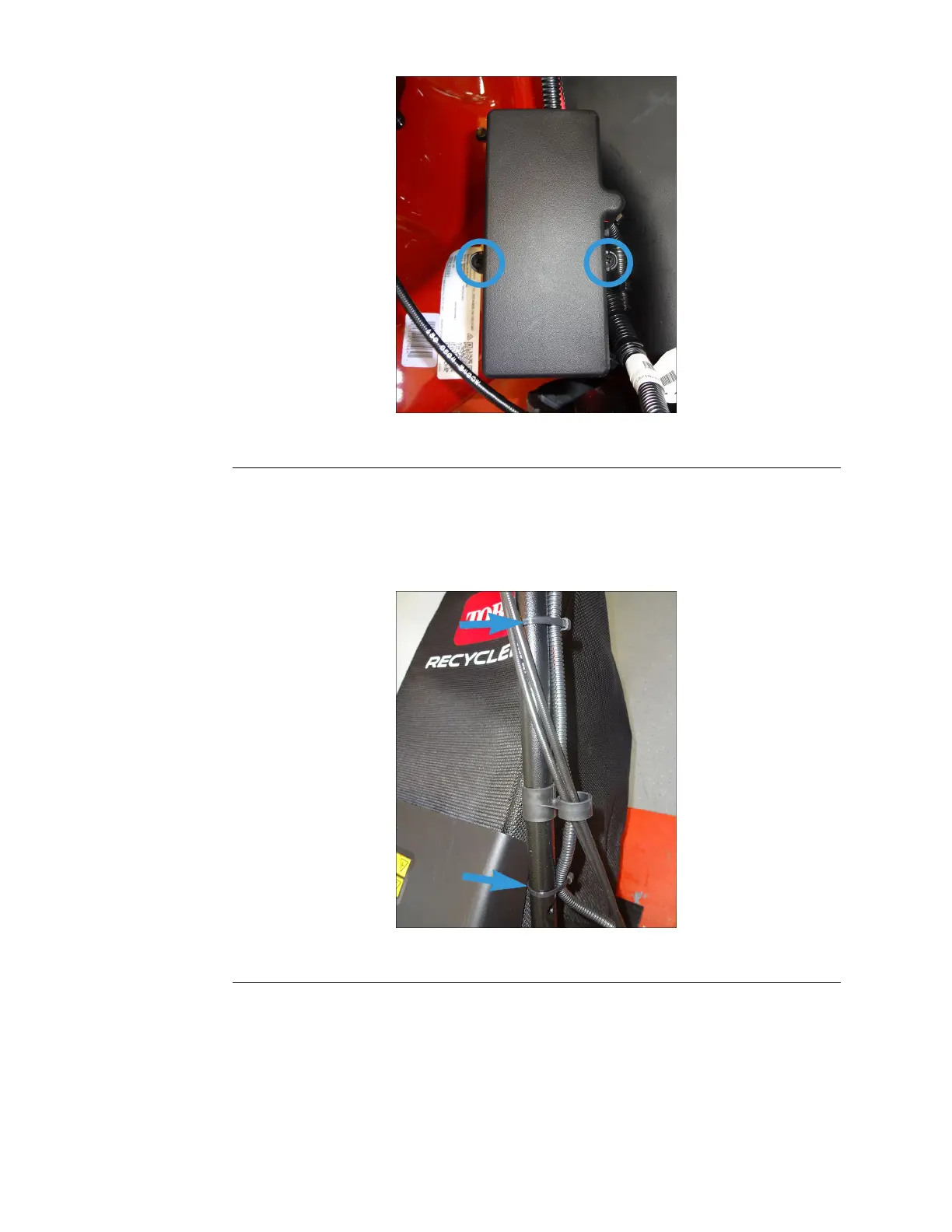

Figure166
6.Installthecableguideandelectricstartertothecurvedhandle,securewith
theNIlocknutand(7/16inch)screw.
7.Installthecableguideontothecurvedhandle.
8.Installthe2cabletiessecuringtheelectricstarterwireharnesstothecurved
handle.
g353634
Figure167
BatteryAssemblyReplacement(ElectricStartModelsOnly)
BatteryAssemblyRemoval(ElectricStartModelsOnly)
1.Parkthemachineonalevelsurface,stoptheengineandwaitforallmoving
partstostop.
2.Removethegrassbaggerassemblyifattached.
Electrical:ServiceandRepairs
Page8–10
22InchAWD/RWDSteelDeckWalkPower
MowerServiceManual
3445-579RevA
