Toro 21462 - Rear Wheel Replacement

RearWheelReplacement
RearWheelRemoval
1.Parkthemachineonalevelsurface,stoptheengineandwaitforallmoving
partstostop.
2.Modelsequippedwiththe60vpowerhead,removetheharnessfrom
powerhead.
3.Modelsequippedwithelectricstartonly,removethe2(M4.2x2.0)
screwssecuringthebatterycover.Removethebatterycoverandfoampad.
Disconnectthebatterybyremovingthenegativecablerst,thenthepositive
cablefromthebattery.
4.Removethegrassbaggerassemblyifattached.

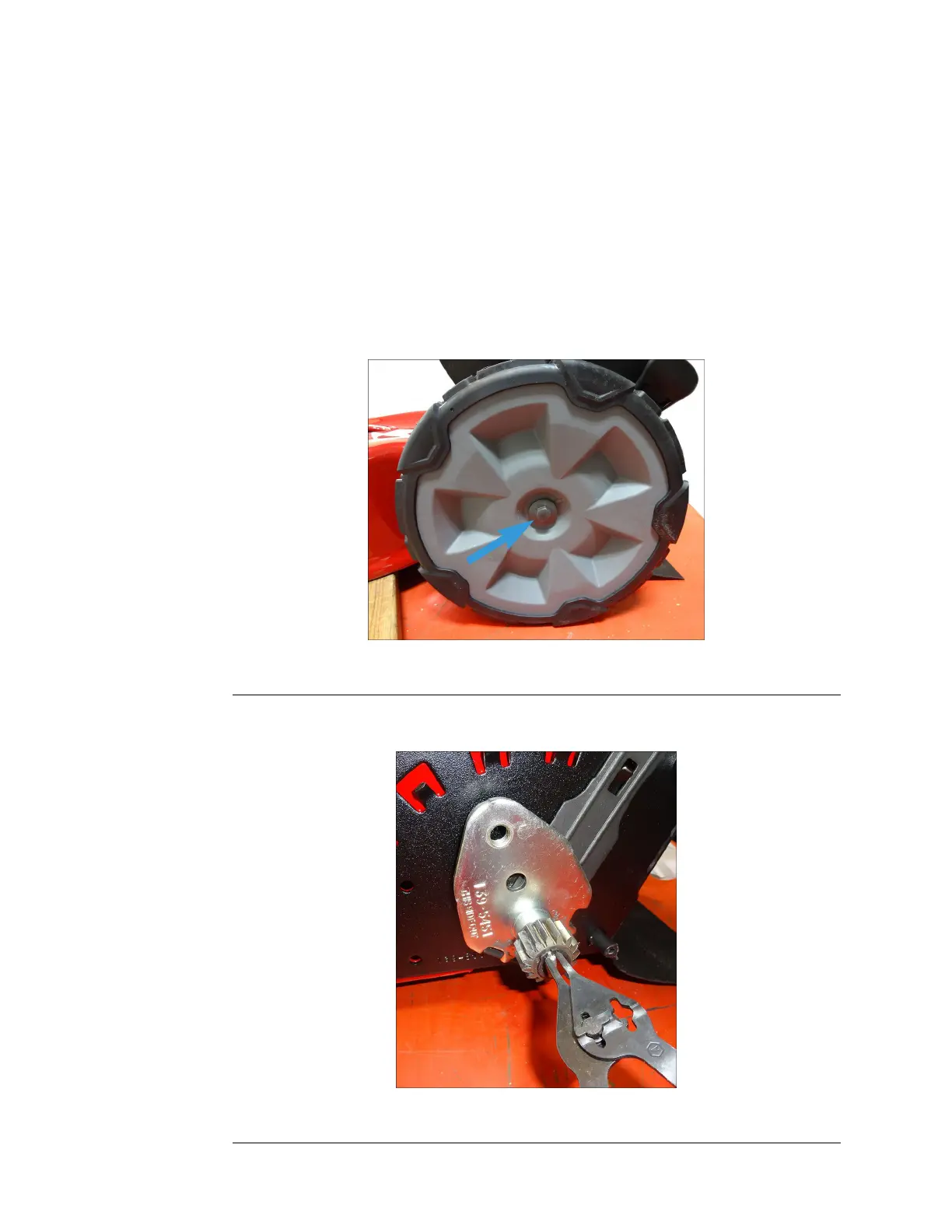

5.Using½inchsocketwrench,removethe(3/8–16inch)wheelboltsecuring
theLHwheeltotheLHpivotarm.Removethewheelandgearcover.Repeat
ontheRHsideoftheunit.
g352317
Figure135
6.Usingasnapringpliers,removethesnapringfromtheLHtransmissionaxle
shaft.RepeatontheRHsideoftheunit.
g352318
Figure136
DriveSystem:ServiceandRepairs
Page7–10
22InchAWD/RWDSteelDeckWalkPower
MowerServiceManual
3445-579RevA
