ServiceandRepairs
DeckAssembly1

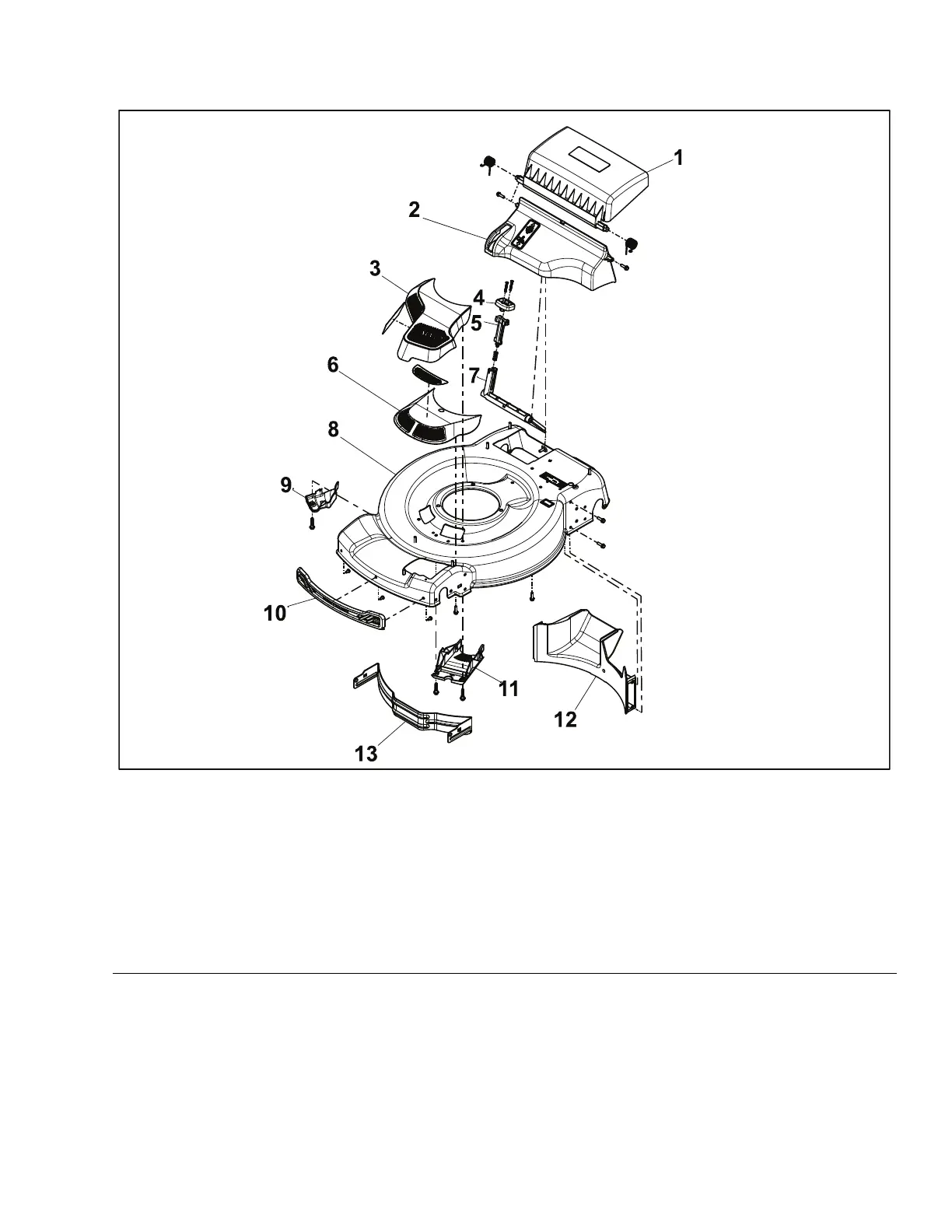

g352008
Figure91
1.RearDoorAssembly8.22–inchDeck
2.ChuteAssembly9.BottomIntakeCover
3.AWDIntake10.FrontBumper
4.RecycleKnob
11.AWDLowerBeltCover
5.RecycleLatch
12.RWDRearBafe
6.RWDIntake
13.FrontBafe
7.RecycleDeector
22InchAWD/RWDSteelDeckWalkPowerMowerService
Manual
Page6–3
Deck:ServiceandRepairs
3445-579RevA
