Toro 21462 - Electric Starter Replacement

ElectricStarterReplacement(ElectricStartModelsOnly)
ElectricStarterRemoval(ElectricStartModelsOnly)
1.Parkthemachineonalevelsurface,stoptheengineandwaitforallmoving
partstostop.
2.Removethe2cabletiessecuringtheelectricstarterwireharnesstothe
curvedhandle.

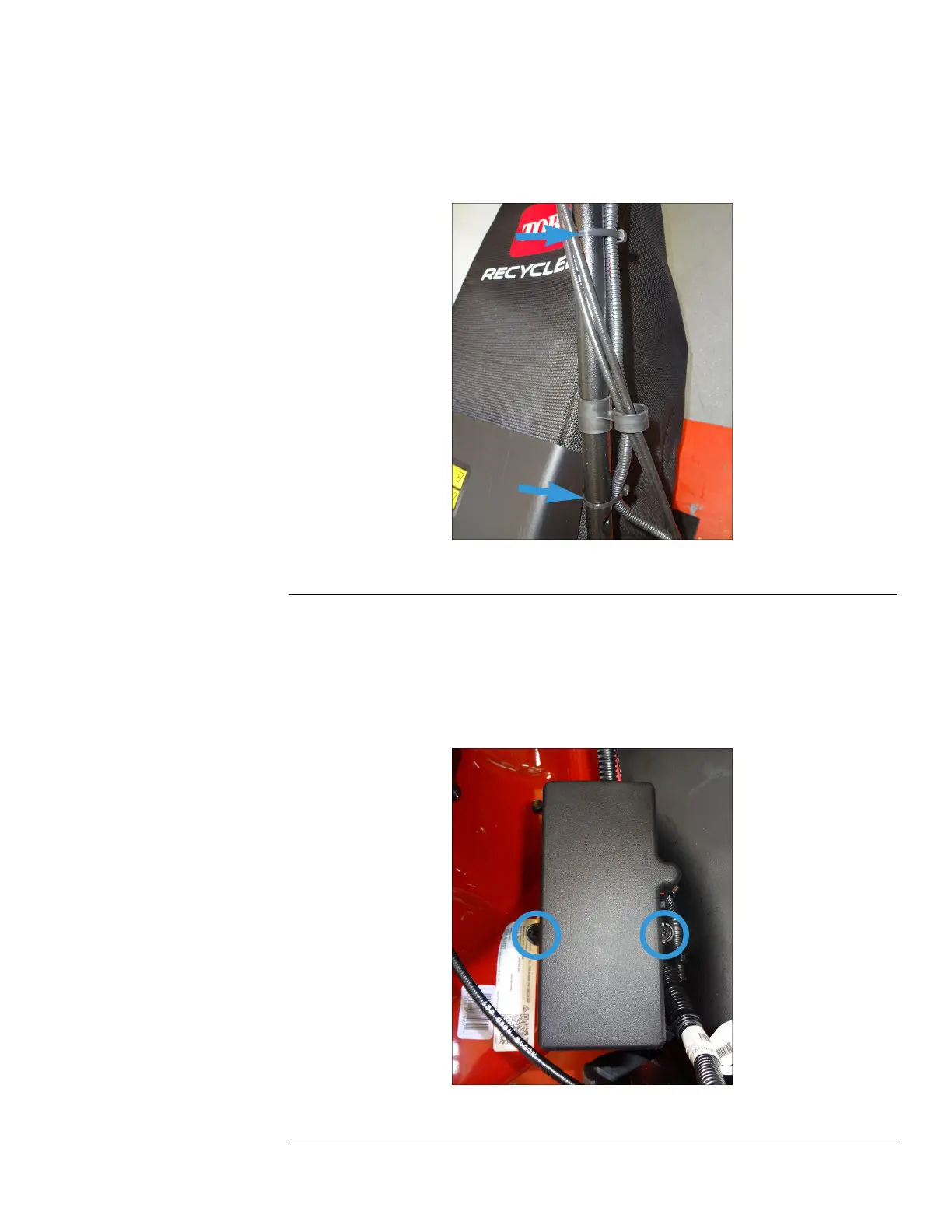

g353634
Figure156
3.Removethecableguidefromthecurvedhandle.
4.Loosenthe(7/16inch)screwandremovecapturedNIlocknutsecuringthe
cableguideandelectricstartertothecurvedhandle.Removetheelectric
starterfromthecurvedhandle.
5.Removethe2(M4.2x2.0)screwssecuringthebatterycovertothebattery
box.Removethebatterycover.
g353635
Figure157
22InchAWD/RWDSteelDeckWalkPowerMowerService
Manual
Page8–5
Electrical:ServiceandRepairs
3445-579RevA
