AWDFrontWheelRemoval(continued)
g359881
Figure131

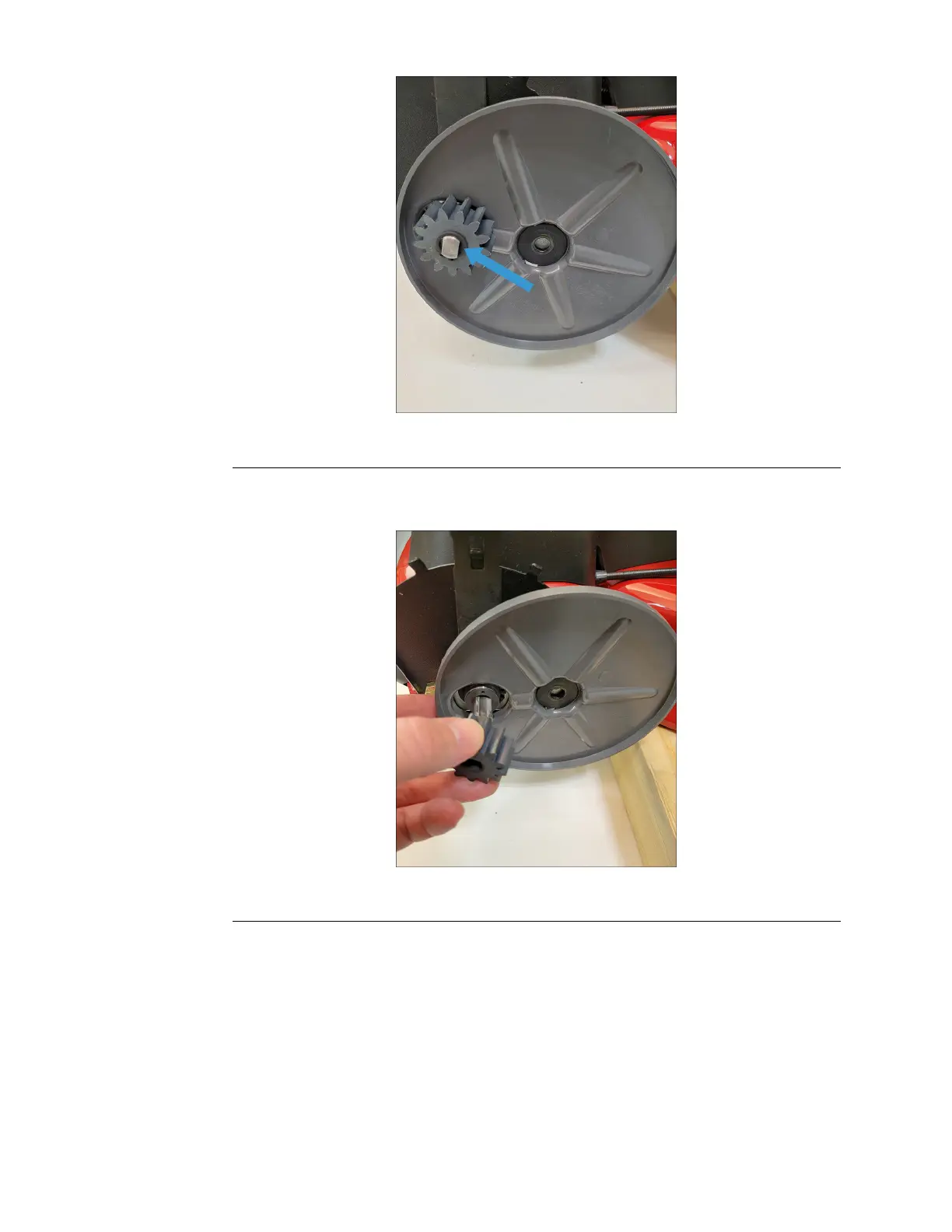

8.RemovetheLHpiniongearandwasherfromtheLHtransmissionaxleshaft.
RepeatontheRHsideoftheunit.
g359882
Figure132
9.RemovetheLHwheelcoverfromtheLHtransmissionaxleshaft.Repeat
ontheRHsideoftheunit.
AWDFrontWheelInstallation
1.InstalltheLHwheelcovertotheLHtransmissionaxleshaft.Repeaton
theRHsideoftheunit.
2.InstallthewasherandpiniongeartotheLHtransmissionaxleshaft.Repeat
ontheRHsideoftheunit.
