AWDRearTractionCableRemoval(continued)

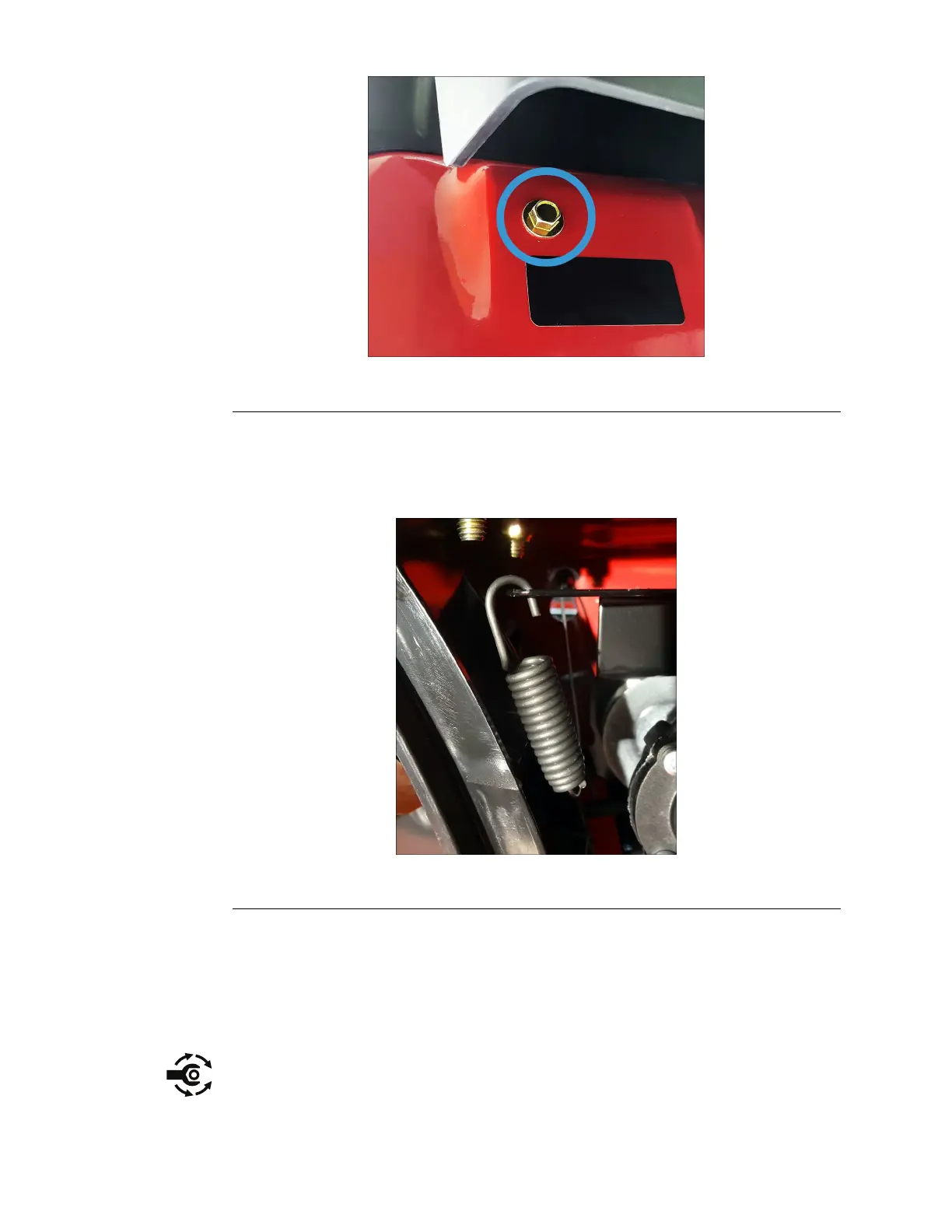

g359931
Figure39
7.Rotatethetransmissionforwardtogainaccesstothecableanchoronthe
beltguide.
8.Releasethecableanchoranddisconnectthereartractioncablefromthe
transmissionarm.
g352896
Figure40
9.Removethereartractioncablefromtheunit.
AWDRearTractionCableInstallation
1.Connectthereartractioncabletothetractionarm.
2.Installthecableanchortothebeltguide.
3.Installthe(1/4–20inch)screwsecuringthetransmissiontothedeck.Torque
thescrewto9.04±1.69N•m(80±15in-lbs).
