AWDPERSONALPACE®HandleAssemblyRemoval(continued)
g353048

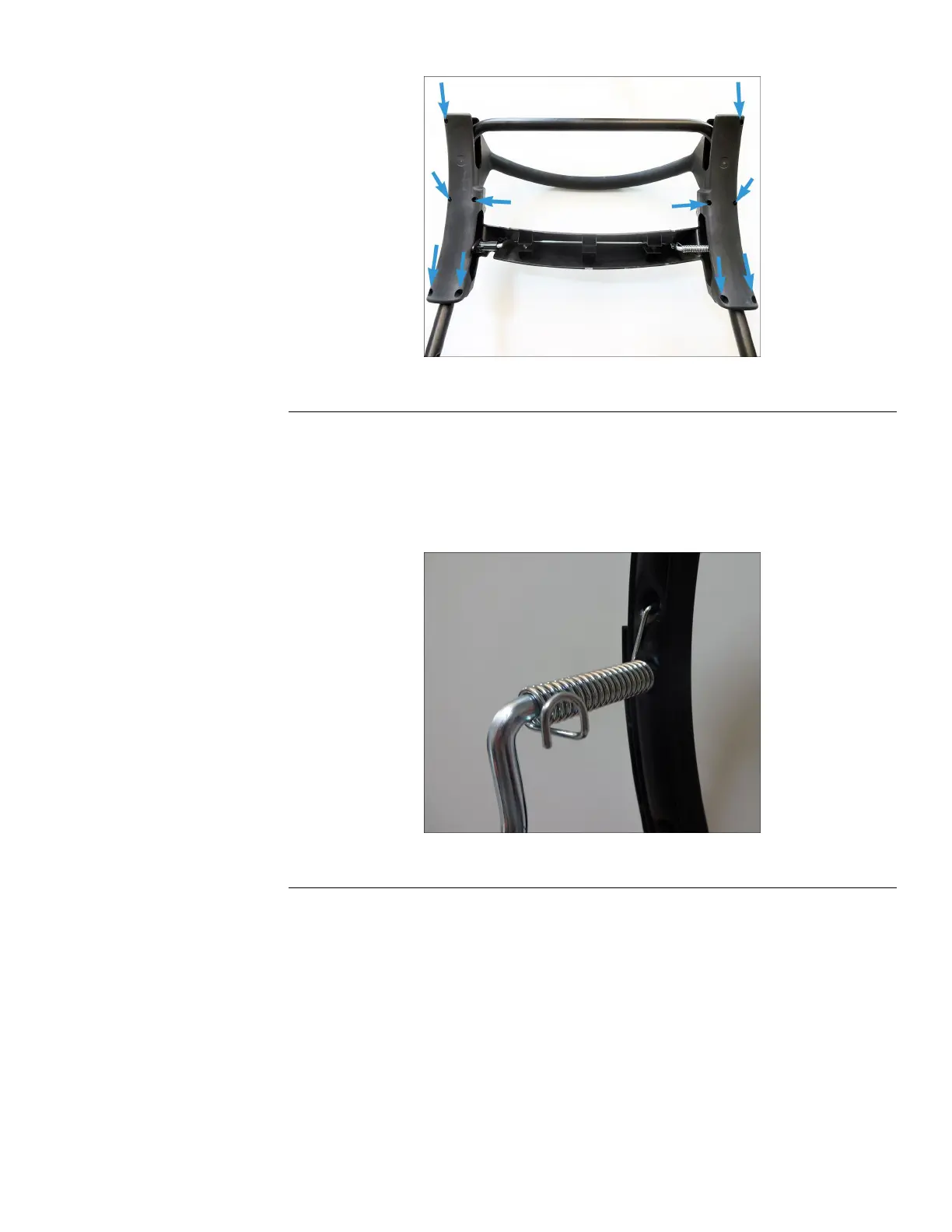

Figure68
12.PullandremovethecurvedPERSONALPACE®handlefromthecurved
handle.
Note:ThehandlepinsmayfalloffwhentheupperPERSONALPACE®
handleisremoved.
13.Removethetorsionspringfromthecurvedhandle.
g353082
Figure69
14.RemovetheRHcurvedguidefromthecurvedhandle.
15.Slidethetractionrodtotheright,removethetractionrodfromthecurved
handle.
16.RemovethetractionleverandwasherfromtheLHsideofthetractionrod.
RemovethetorsionspringfromtheRHsideofthetractionrod.
22InchAWD/RWDSteelDeckWalkPowerMowerService
Manual
Page5–33
