CurvedHandleRemoval(Non—ElectricStartModelsOnly)(continued)

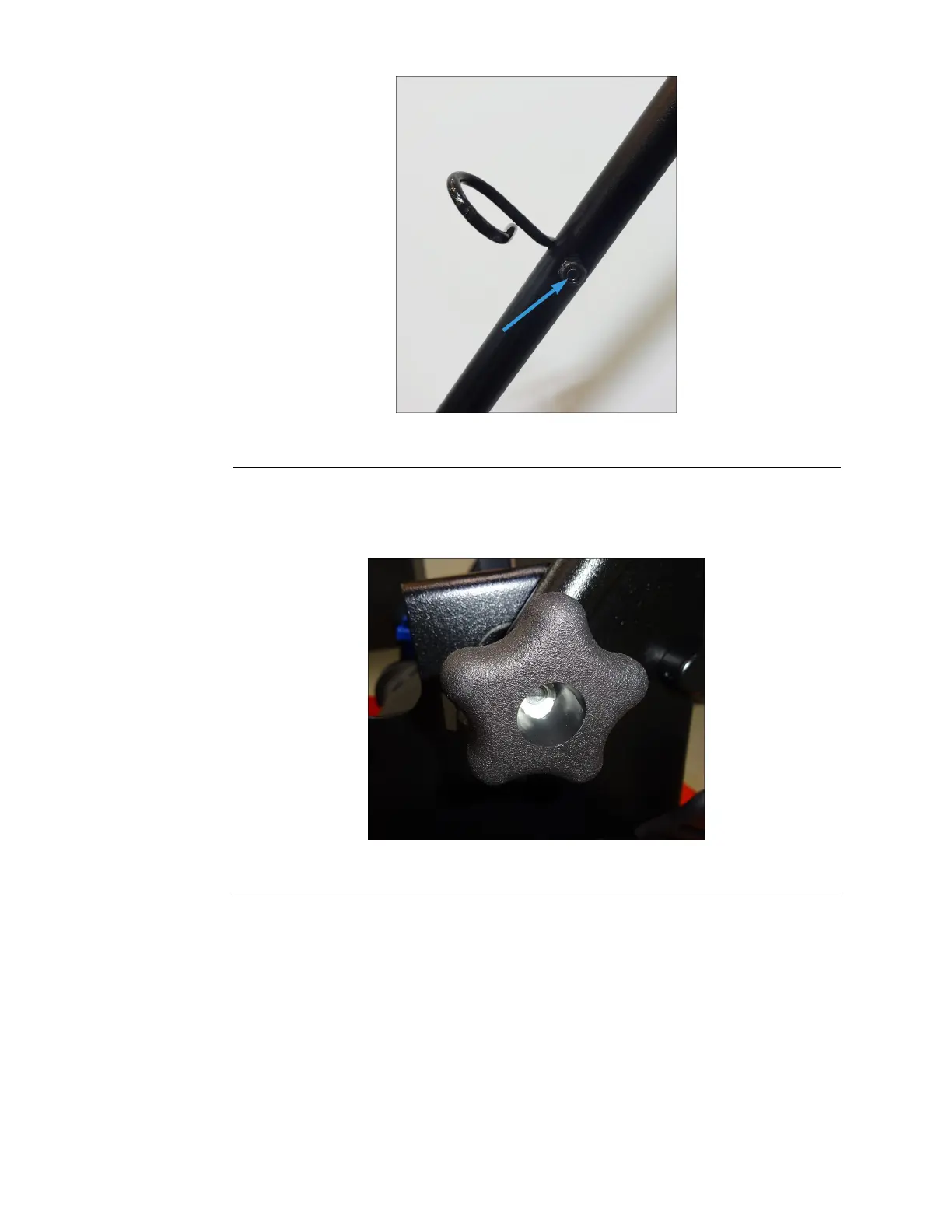

g353180
Figure77
6.Spreadandremovethecableguidefromthecurvedhandle.
7.RemovetheLHhandleknobandcarriageboltfromthecurvedhandle.
RepeatontheRHsideoftheunit.
g353181
Figure78
8.Removethecurvedhandlefromthechassis.
9.Spreadandremovethequickreleaseassembliesfromthecurvedhandle.
Controls:ServiceandRepairs
Page5–38
22InchAWD/RWDSteelDeckWalkPower
MowerServiceManual
3445-579RevA
