RearHeight-of-CutRemoval(continued)
g361222

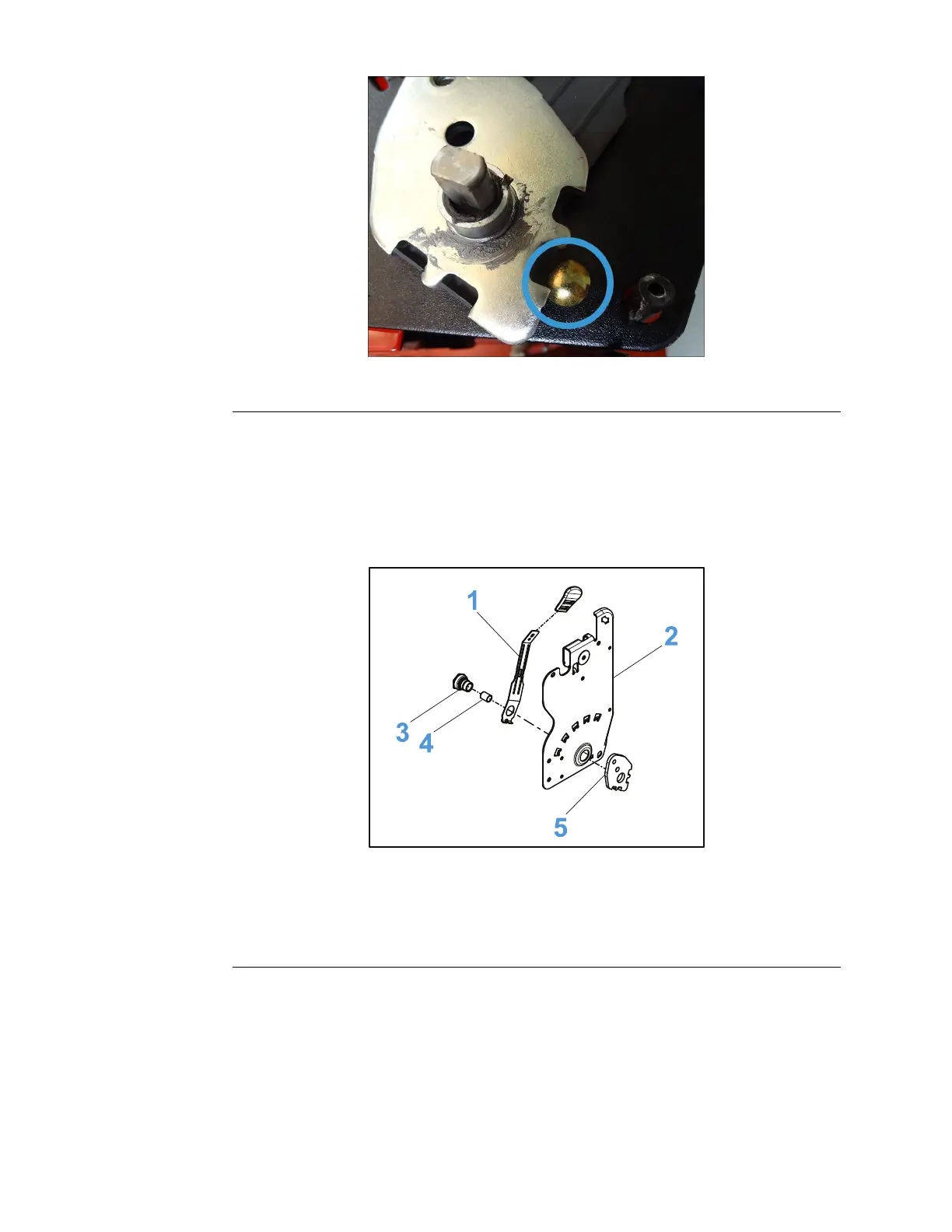

Figure105
9.PositiontheLHtabonthetrailingshieldinalignmentwiththecutoutinthe
LHheight-of-cutplate.RepeatontheRHsideoftheunit.
10.RemovetherearLHheight-of-cutplateassemblyfromthedeck.Repeat
ontheRHsideoftheunit.
RearHeight-of-CutDisassembly
g359631
Figure106
1.SpringArm4.SleeveBushing
2.RearHeight-of-CutPlate
5.RearPivotArm
3.BushingRetainer
1.Clamptherearpivotarminavice.
Deck:ServiceandRepairs
Page6–14
22InchAWD/RWDSteelDeckWalkPower
MowerServiceManual
3445-579RevA
