DeckInstallation(continued)

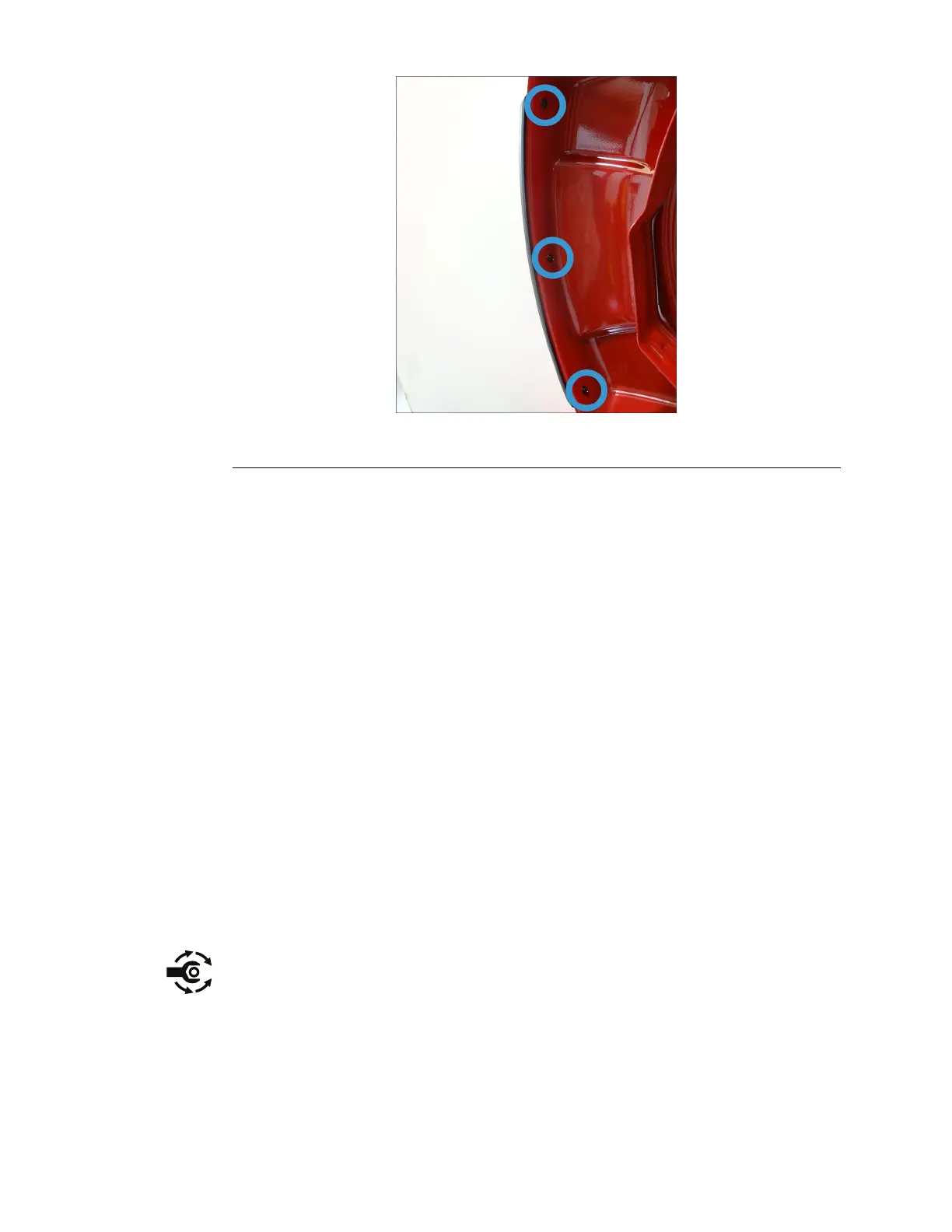

g361255
Figure125
3.AWDmodelsonly,installtheAWDfronttransmission.AWDFront
TransmissionInstallation(page7–19)
4.Installtherearheight-of-cutassemblies.RearHeight-of-CutInstallation
(page6–16)
5.RWDmodelsonly,installtheRWDfrontheight-of-cutassembly.RWDFront
Height-of-CutInstallation(page6–9)
6.AWDmodelsonly,installtheAWDfrontheight-of-cutassembly.AWDFront
Height-of-CutInstallation(page6–11)
7.Installthepowerhead.Engine/PowerheadInstallation(page4–6)
8.Installthecurvedhandleontothechassis.CurvedHandleInstallation
(Non—ElectricStartModelsOnly)(page5–39)CurvedHandleInstallation
(ElectricStartModelsOnly)(page5–43)
9.InstalltheLHhandleknobontothecurvedhandle.RepeatontheRHsideof
theunit.
10.Installthebrakecable.BrakeCableInstallation(page5–6)
11.RWDmodelsonly,installtheRWDtractioncable.RWDTractionCable
Installation(page5–11)
12.AWDmodelsonly,installtheAWDfrontandreartractioncables.AWD
FrontTractionCableInstallation(page5–15)AWDRearTractionCable
Installation(page5–18)
13.Modelsequippedwithelectricstartonly,connectthebatterybyinstalling
thepositivecablerst,thenthenegativecabletothebattery.Installthefoam
padandbatterycover.Securethebatterycoverwith2(M4.2x2.0)screws.
Torquethescrewsto2.26±0.34N•m(20±3in-lbs).
14.Modelsequippedwiththe60vpowerhead,installtheharnesstothe
powerhead.
