5.Checkforbentblades;refertoCheckingfora
BentBlade.
6.Cutgrassinatestareatodetermineifallcutting
unitsarecuttingatthesameheight.
7.Ifcuttingunitadjustmentsarestillneeded,nda
atsurfaceusinga2m(6foot)orlongerstraight
edge.
8.Toeasemeasuringbladeplane,raisetheheight
ofcutto7.6to10.1cm(3to4inches);referto
AdjustingtheHeightofCut.
9.Lowercuttingunitsontotheatsurface.
Removethecoversfromthetopofthecutting
units.
10.Loosentheangenut,securingtheidlerpulley,
toreleasethebelttensiononeachcuttingunit.
FrontCuttingUnitSetup
Rotatebladeoneachspindleuntiltheendsface
forwardandbackward.Measurefromtheoortothe
fronttipofthecuttingedge.Adjust3mm(1/8inch)
shimsonfrontcastorfork(s)tomatchheightofcutto
decal(Figure30);refertoAdjustingtheCuttingUnit
Pitch.

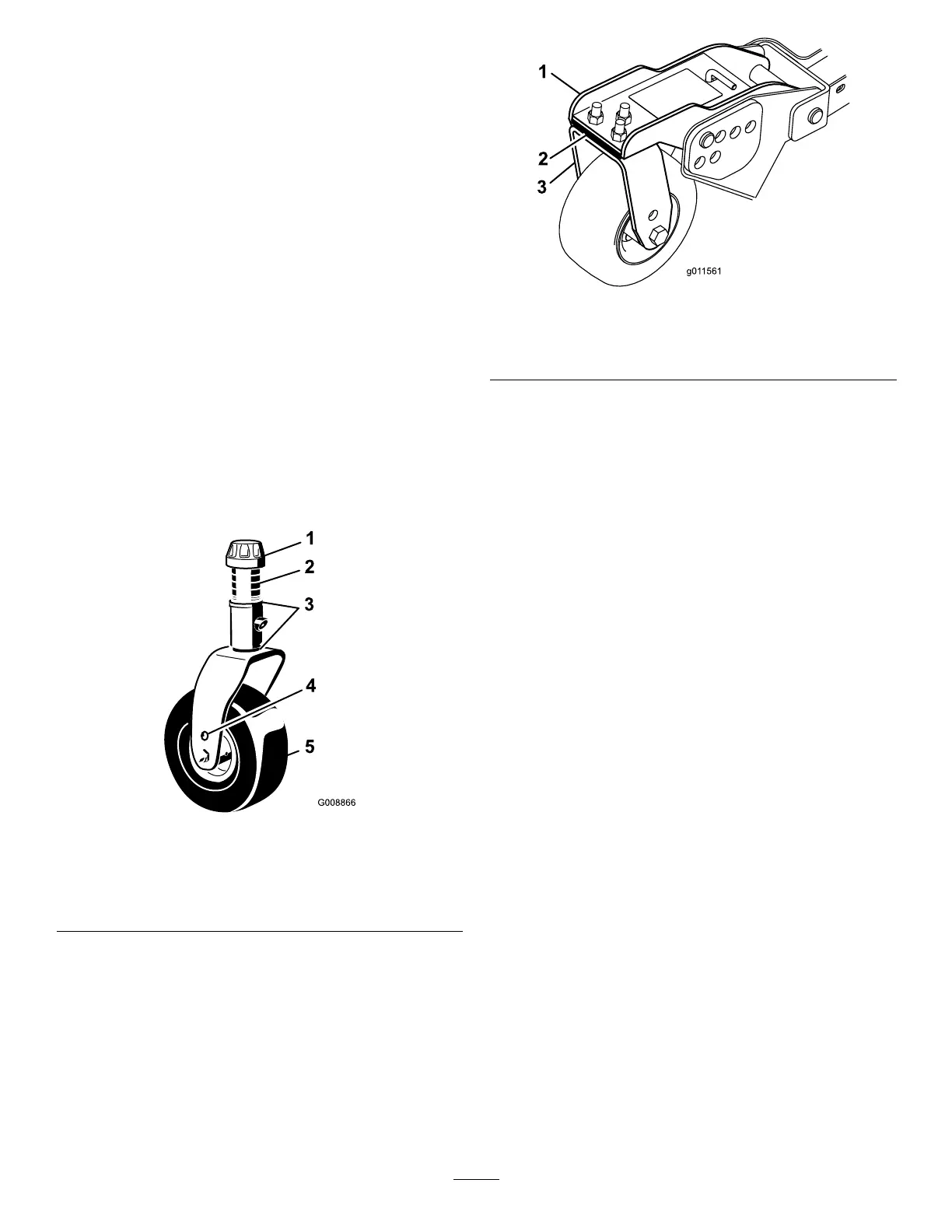

g008866
Figure30
1.Tensioningcap4.Topaxlemountinghole
2.Spacers5.Castorwheel
3.Shims
SideCuttingUnitSetup
Rotatebladeofeachspindleuntiltheendsface
forwardandbackward.Measurefromtheoortothe
fronttipofthecuttingedge.Adjust3mm(1/8inch)
shimsonfrontcastorarm(s)tomatchheightofcutto
decal(Figure31).Fortheoutsidebladespindleonly,
refertoAdjustingtheCuttingUnitPitch.
g011561
Figure31
1.Frontcastorarm
3.Frontcastorfork
2.Shims
MatchingHeightOfCutBetweenCuttingUnits
1.Positionbladesidetosideonoutsidespindleof
bothsidecuttingunits.Measurefromtheoor
tothetipofthecuttingedgeonbothunitsand
compare.Thesenumbersshouldbewithin3
mm(1/8inch)ofeachother.
2.Addorremove1/8inchshimsasneededon
wingcastorwheels.Recheckmeasurement
betweenoutsideedgesofbothwingcutting
unitsandadjustasnecessary
AdjustingtheMirrors
Cabmodelonly
RearViewMirror
Whilesittingintheseat,adjusttherearviewmirror
(Figure32)toattainthebestviewouttherearwindow.
Pulltheleverrearwardtotiltthemirrortoreducethe
brightnessandglareoflight.
SideViewMirrors
Whilesittingintheseat,haveahelperadjusttheside
viewmirrors(Figure32)toattainthebestviewaround
thesideofthemachine.
33
