Lubrication
GreasingtheBearingsand
Bushings
Themachinehasgreasettingsthatmustbe
lubricatedregularlywithNo.2GeneralPurpose
LithiumBaseGrease.Ifthemachineisoperated
undernormalconditions,lubricateallbearings
andbushingsafterevery50hoursofoperationor
immediatelyaftereverywashing.
Thegreasettinglocationsandquantitiesare:
TractionUnit
ServiceInterval:Every50hours
•Brakepedalpivotshaftbearings(2)(Figure60)
•Frontandrearaxlepivotbushings(2)(Figure61)
•Steeringcylinderballjoints(2)(Figure62)
•Tierodballjoints(2)(Figure62)
•Kingpinbushings(2)(Figure62).
Thetopttingonthekingpinshould
onlybelubricatedannually(2pumps).

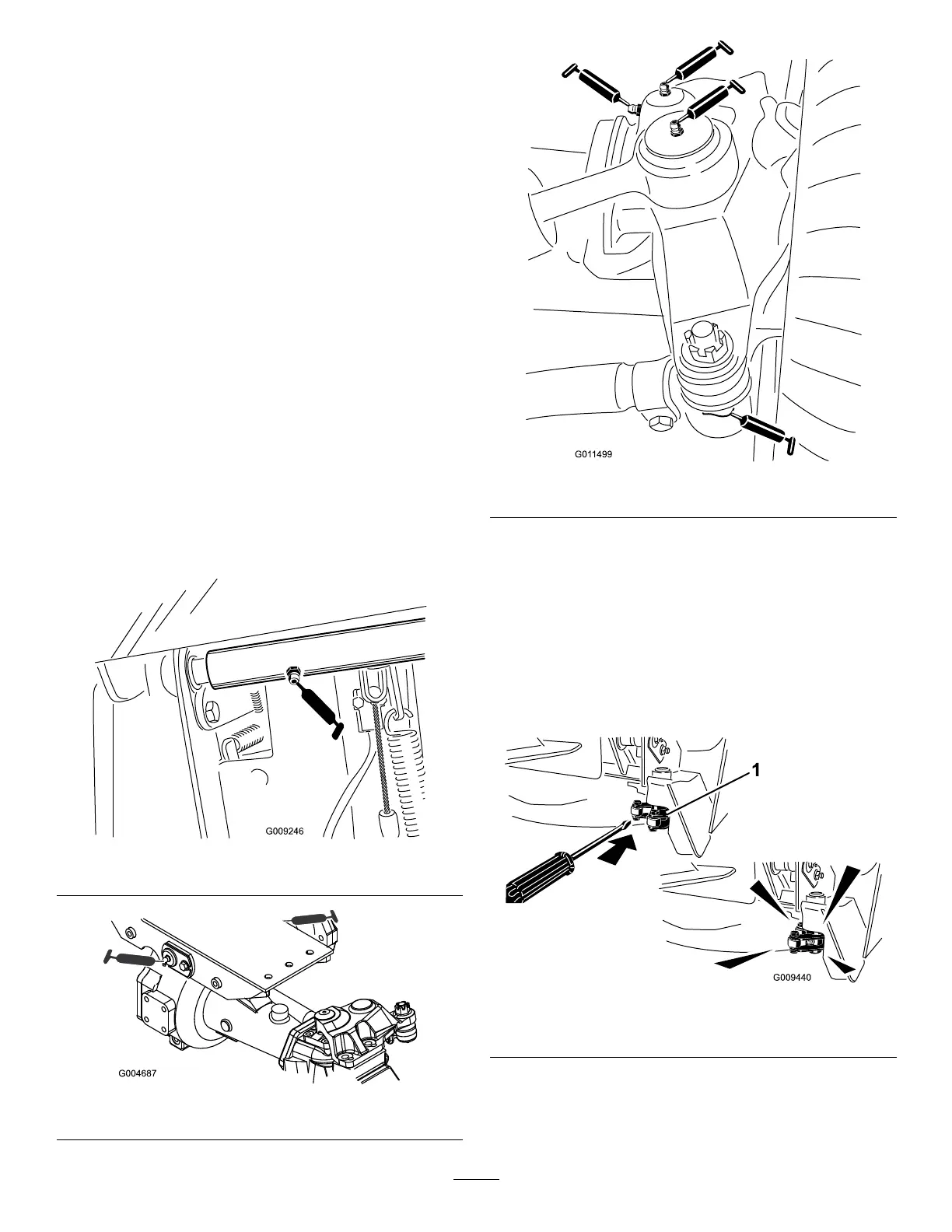

g009246
Figure60
g004687
Figure61
g011499
Figure62
CenterCuttingUnit
Note:Deckmayhavetoberaisedtoexposethe
greasettingsforthelatchpivotandthelowerlink.
Latchpivot(2)(Figure64)
Note:Thelatch(Figure63)mayneedtobemanually
trippedtogainaccesstothegreasetting.Usea
prybartocloseandre-openthelatch
g009440
Figure63
1.Latch
