2.Removethescrewsthatsecuretheheatshield
tothemufer,andremovetheheatshield
(Figure73).
g259312

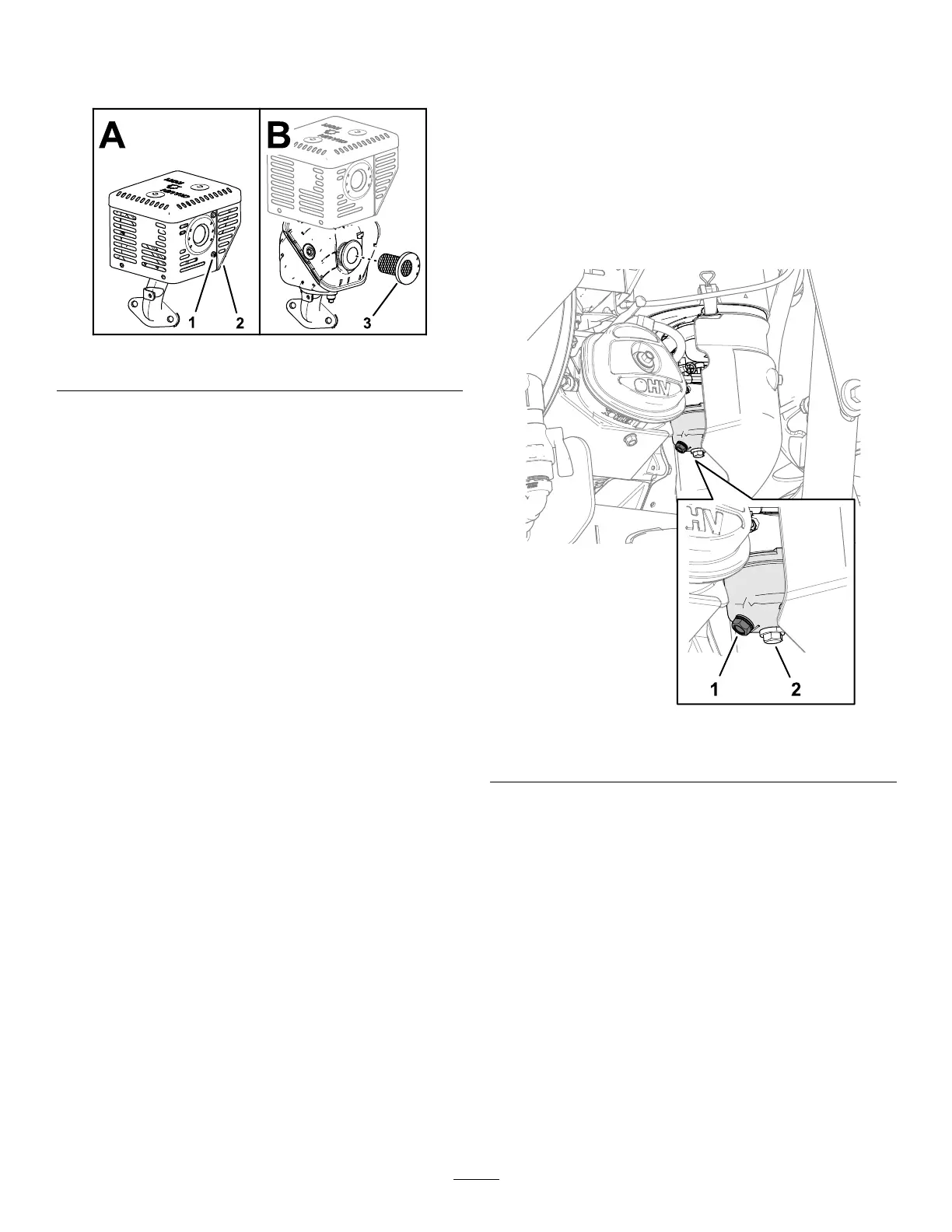

Figure73
3.Removethesparkarresterscreenandcleanit
(Figure73).
4.Assemblethesparkarresterscreentothe
mufer(Figure73).
5.Assembletheheatshieldtothemuferwiththe
screwsthatyouremovedinstep2.
6.Alignthemuferandanewexhaustgasketto
theexhaust-outletangeoftheengine(Figure
72).
7.Assemblethemuferandgaskettotheengine
withthe2ange-headboltsthatyouremoved
instep1.
8.Torquetheange-headboltsto35N∙m(310
in-lb).
FuelSystem
Maintenance
DrainingtheFuelSystem
1.Closethefuel-shutoffvalve;refertoOpening
andClosingtheFuelShutoffValve(page22).
2.Locatethedrainboltthatisinthesideportof
thecarburetorbowl(Figure74).
g257990
Figure74
1.Drainbolt2.Bowl-retainingscrew
3.Aligntheequipmentthatyouwillusetocollect
thefuelbeneaththedrainscrew.
4.Removethedrainscrewfromthecarburetor
andallowthefueltodrainfromthefueltankand
thecarburetor.
Note:Donotremovethebowl-retainingscrew
fromcarburetor.
