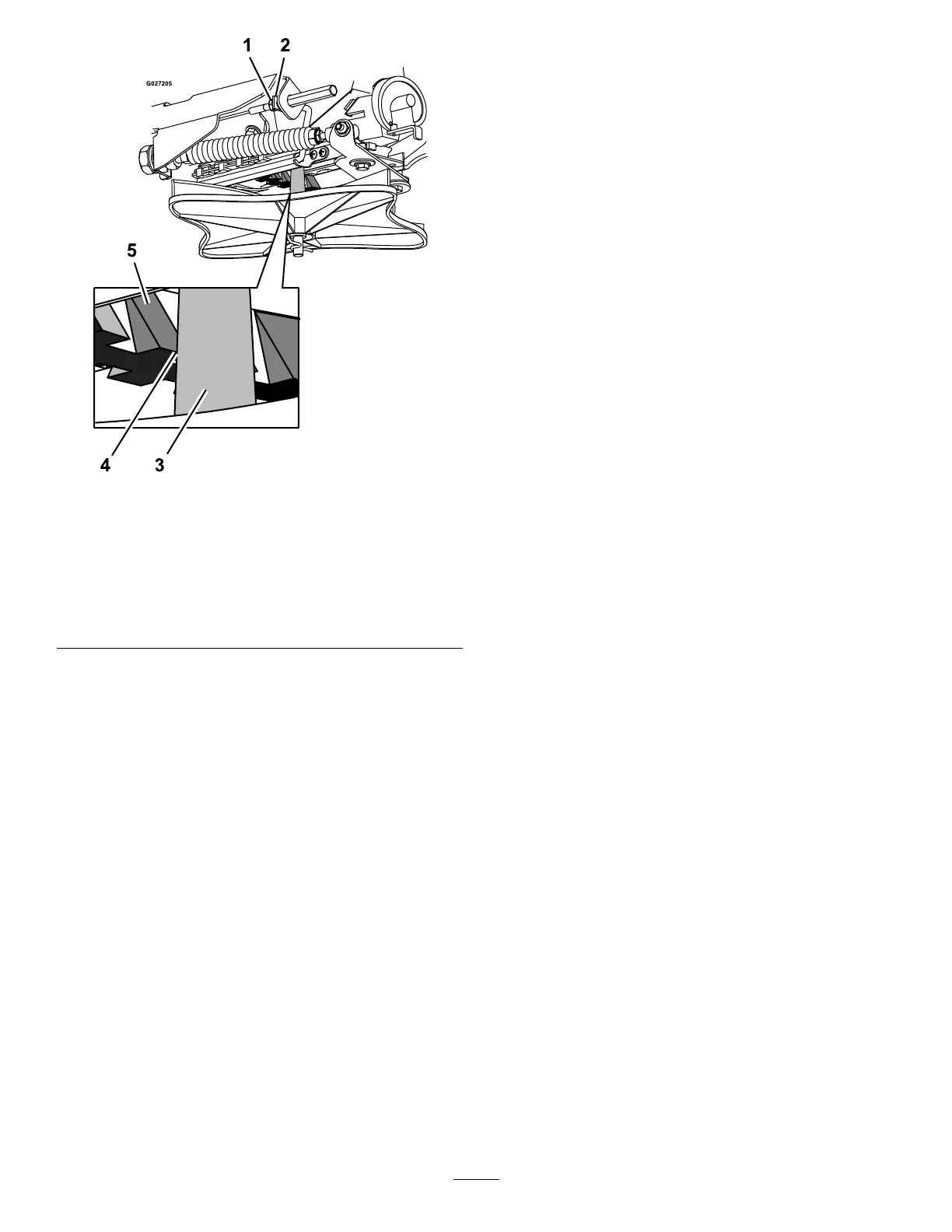

g027205
Figure88
1.Jamnut(patterncontrolcable)
2.Linkagerod
3.Impellershaft
4.1/8inch(3.2mm)gapbetweenramptoothandimpeller
shaft
5.Ramptooth
6.Pullthelinkageroduntilthereis1/8inch(3.2
mm)gapbetweentheramptoothandthe
impellershaft(Figure88).
7.Tightenthejamnut(Figure88).
8.Adjustthespread-pattern-controlhandle;refer
toAdjustingtheSpreaderPattern(page31).
MaintainingtheChassis
CheckingtheMachinefor
LooseHardware
ServiceInterval:Beforeeachuseordaily
1.Preparethemachineformaintenance;referto
PreparingtheMachine(page51).
2.Visuallyinspectmachinefordamagedorworn
parts,andcheckforloosehardware.
Note:Beforeoperatingthemachine,replace
anydamagedpartsandtightenallloose
hardware.
