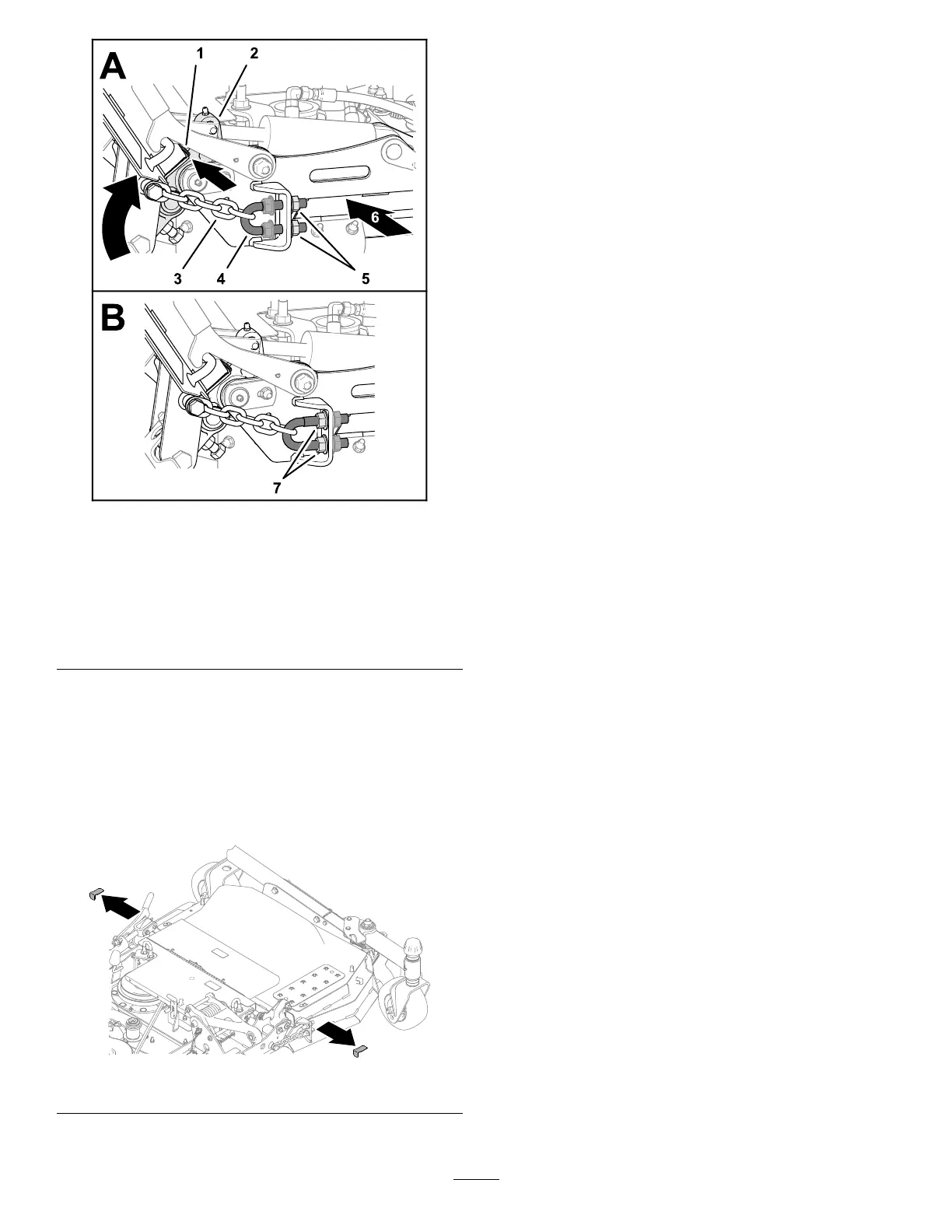

g321235
Figure36
1.Deckshim(orfeeler
gauge)
5.Serrated-angenut
(inboard)
2.Pivotlink
6.Frontofthemachine
3.Chain(limit)7.Serrated-angenut
(outboard)
4.U-bolt
4.Threadtheoutboardserrated-angenuts
(Figure36)andtorquethemto103to127N∙m
(76to94ft-lb).
5.Starttheengine,loweradjusteddeck,raisethe
otherdeck,shutofftheengine,removethekey,
andwaitforallmovingpartstostop.
6.Removetheshimsorfeelergauges(Figure37).
g321240
Figure37
7.RepeatstepsinAssemblingtheShimtothe
Deck(page22)andTensioningtheChains
(page24)fortheothermowerdeck.
25
