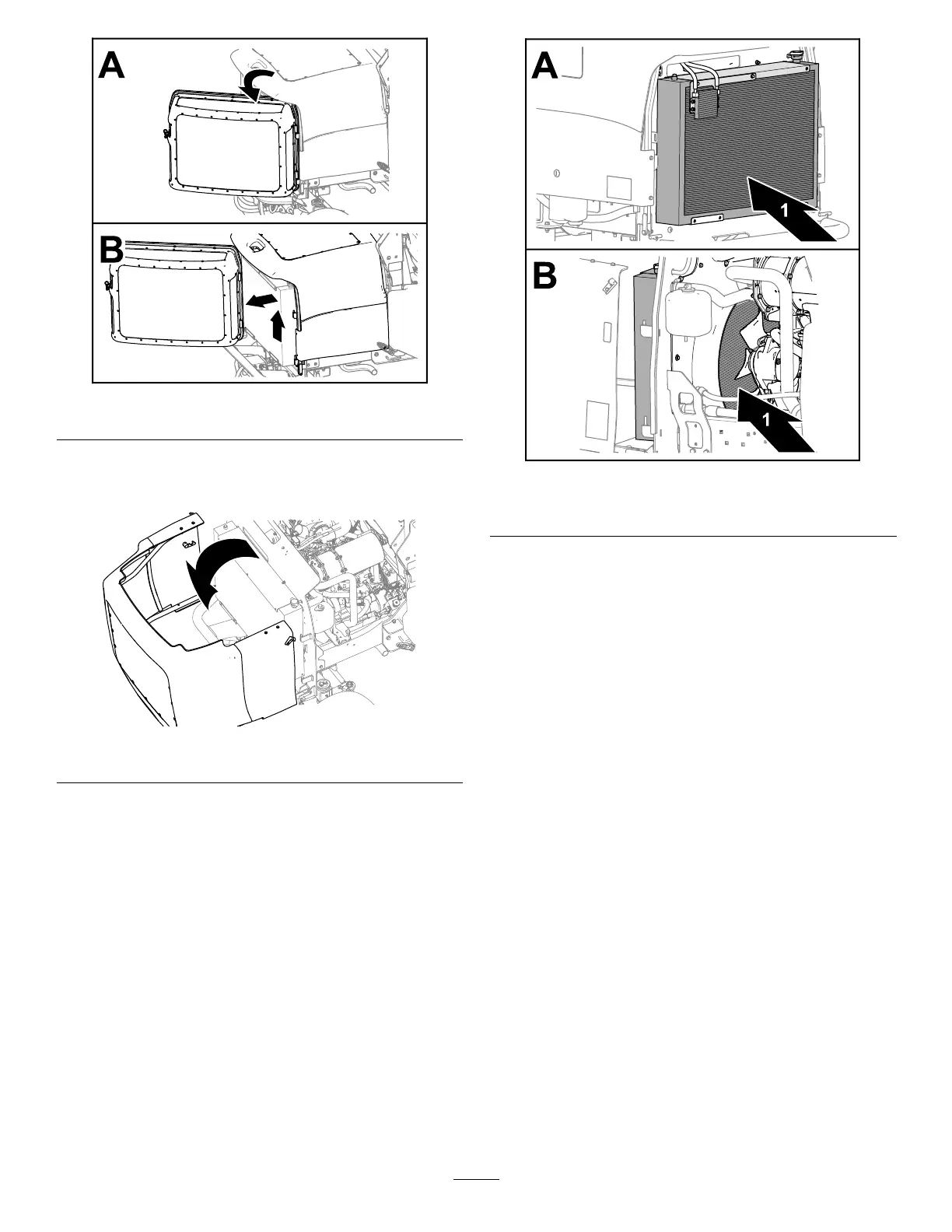

g292487
Figure
65
4.
Clean
the
screens.
5.
Unlatch
and
open
the
hood
(
Figure
66
).
g292486
Figure
66
6.
Thoroughly
clean
all
debris
out
of
the
engine
area.
7.
Thoroughly
clean
both
sides
of
the
radiator
and
oil
cooler
with
compressed
air
(
Figure
67
).
g328487
Figure
67
1.
Radiator
8.
Close
and
latch
the
hood.
9.
Assemble
the
screen
onto
the
pivot
pins,
close
the
screen
and
secure
it
with
the
latch
and
ball
pin.
52
51
53
Table of Contents
Table of Contents
2
Safety
4
General Safety
4
Safety and Instructional Decals
5
Setup
10
Product Overview
10
Controls
10
Operator's Seat Controls
12
Transport Latches
14
Specifications
19
Attachments/Accessories
19
Before Operation
20
Before Operation Safety
20
Performing Daily Maintenance
20
Filling the Fuel Tank
20
Checking the Forward/Reverse Traction Pedal Action
21
Checking the Interlock Switches
22
During Operation
22
During Operation Safety
22
Understanding the Operator Presence Controls
24
Adjusting the Roll Bar
24
Starting the Engine
26
Shutting off the Engine
26
Flail Cutting Unit General Information
27
Adjusting the Height of Cut
27
Controlling the Position of the Individual Cutting Units
28
Adjusting the Cutting Unit Auto-Limited Lift
28
Engaging the Cutting Unit Drive
29
Adjusting the Weight Transfer/Traction Assistance
29
Clearing the Cutting Units
30
Operating Tips
31
After Operation
32
After Operation Safety
32
Identifying the Tie-Down Points
32
Hauling the Machine
32
Towing the Machine
32
Maintenance
36
Maintenance Safety
36
Recommended Maintenance Schedule(S)
36
Daily Maintenance Checklist
38
Notation for Areas of Concern
38
Pre-Maintenance Procedures
39
Raising the Platform
39
Lowering the Platform
39
Removing the Storage Compartment
40
Installing the Storage Compartment
40
Locating the Lift Points
41
Lubrication
42
Greasing the Bearings, Bushings, and Pivots
42
Engine Maintenance
43
Engine Safety
43
Checking the Air Filter-Blockage Indicator
43
Replacing the Primary Air Filter
43
Replacing the Safety Filter
44
Servicing the Engine Oil
44
Servicing the Diesel-Oxidation Catalyst (DOC) and the Soot Filter
45
Extended Engine Maintenance
46
Fuel System Maintenance
46
Servicing the Water Separator
46
Priming the Fuel System
47
Replacing the Fuel-Water Filter
47
Servicing the Engine Fuel Filter
48
Checking the Fuel Lines and Connections
48
Fuel Pick-Up Tube Screen
48
Electrical System Maintenance
48
Electrical System Safety
48
Battery Maintenance
48
Checking the Electrical System
49
Checking the Fuses
49
Drive System Maintenance
50
Checking the Tire Air Pressure
50
Checking the Torque of the Wheel Nuts
50
Inspecting the Transmission Control Cable and Operating Mechanism
50
Checking the Rear Wheel Toe-In
51
Cooling System Maintenance
51
Cooling System Safety
51
Removing Debris from the Cooling System
51
Checking the Coolant Level
53
Belt Maintenance
53
Servicing the Alternator Belt
53
Hydraulic System Maintenance
54
Hydraulic System Safety
54
Checking the Hydraulic Lines and Hoses
54
Hydraulic Fluid Specifications
54
Checking the Hydraulic Fluid Level
55
Changing the Hydraulic Return Filter
55
Changing the Hydraulic Fluid
56
Cutting Units
57
Blade Safety
57
Replacing the Blades
57
Checking the Blade Bolts
57
Inspecting the Blades
58
Checking the Rear Guard
58
Clearing a Blocked Rotor
59
Checking the Front Guards
59
Checking the Cutting Unit Pivot
59
Checking the Rotor
60
Checking the Rear-Roller Bearing Adjustment
60
Checking the Rear-Roller Scraper Wire Tension
60
Chassis
61
Inspecting the Seat Belt
61
Checking the Fasteners
61
Extended Maintenance
61
Cleaning
61
Washing the Machine
61
Storage
62
Storage Safety
62
Preparing the Traction Unit
62
Preparing the Engine
62
Preparing the Electrical System
62
Troubleshooting
63
