2. PRINTER SETUP ENGLISH VERSION EO1-33114
2.3 Loading Supplies
11
2.3.1 Loading the Media
(Cont.)

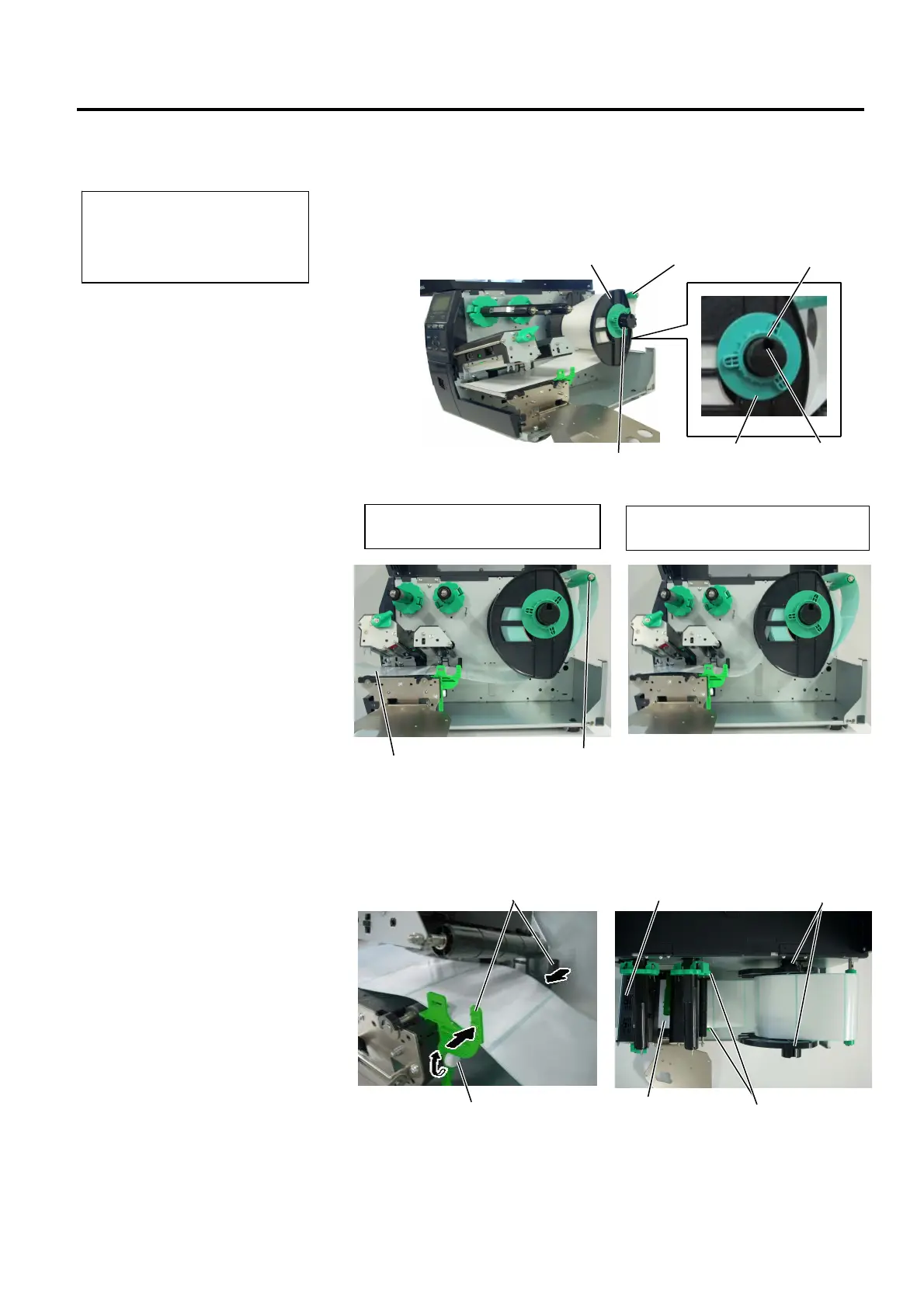

7. Align the tab of the Supply Holder with the groove in the Supply
Shaft, and push the Supply Holder against the media until the media
is held firmly in place. This will center the media automatically.
Turn the Locking Ring clockwise to secure the Supply Holder.
8. Place the media between the Media Guides and adjust them to the
media width. Once in the correct position tighten the Locking Screw.
9. Check that the media’s path through the printer is straight. The
media should be centered under the Print Head.
NOTE:
Do not over-tighten the
Locking Ring of the Supply
Holder.
Media Guide
Supply Holder
Media Guide
Print Head
Locking Screw
Media
Guide Shaft
Media
In the case of media which is inside
wound.
In the case of media which is outside
wound.
Tab
Locking Ring
Supply Holder
Guide Shaft
Groove
Supply Shaft
To Next Page
