Toshiba B-EX4T3 Series User Manual

5. SUPPLY SPECIFICATIONS ENGLISH VERSION EO1-33114
5.1 Media
31
5.1.4 EFFECTIVE PRINT AREA OF PAPER

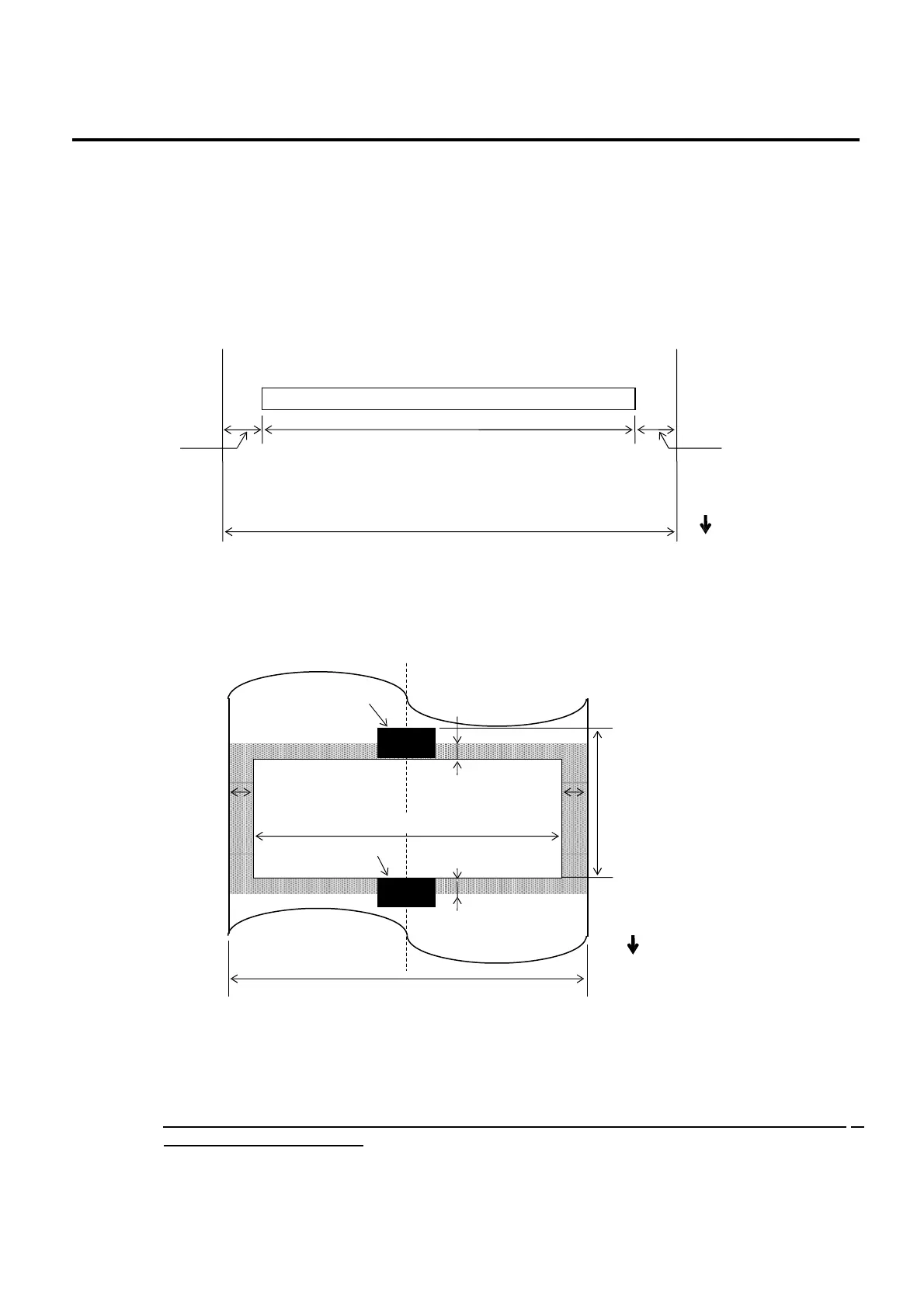

5.1.4.1 Relationship between Print Head Effective Print Width and Paper Width
Paper
position
(Left)
Paper
position
(Right)
Printing area
Outside
printing
area
3 mm
104mm
3mm
Outside
printing
area
Feed
direction
110.0mm
(Max. paper
width)
5.1.4.2 Effective Print Area of Tags and Labels
Detection area
0.6 mm(*4)
0.8 mm from left
edge of paper
0.8 mm from right
edge of paper
Guaranteed printing area
10 mm to 1500 mm
Label/tag length (Top paper width)
Detection area
0.5 mm(*4)
Feed
direction
NOTES:
1. Print quality in the shaded area is not guaranteed. For the label, printing in the 1-mm width area
around the label is not guaranteed as well as the shaded area shown above.
2. The center of the paper (label and tag) is almost aligned with the center of the print head.
3. If printing is performed in the shaded area, the ribbon may wrinkle. This may affect the print quality of
the guaranteed printing area.
4. 0.8mm when print speed 2ips at continuous and peel-off, 1.2mm when print speed is 3ips~6ips.
1.0mm when print speed 2ips at cut, 1.6mm when print speed is 3ips~6ips.
Label/ta
g
width
(
Top paper width
)
