2. PRINTER SETUP ENGLISH VERSION EO1-33114
2.3 Loading Supplies
15
When the high-precision peel-off module is fitted:
When the optional peel-off module is fitted, a label is automatically removed from the backing paper at the
strip plate as each label is printed.

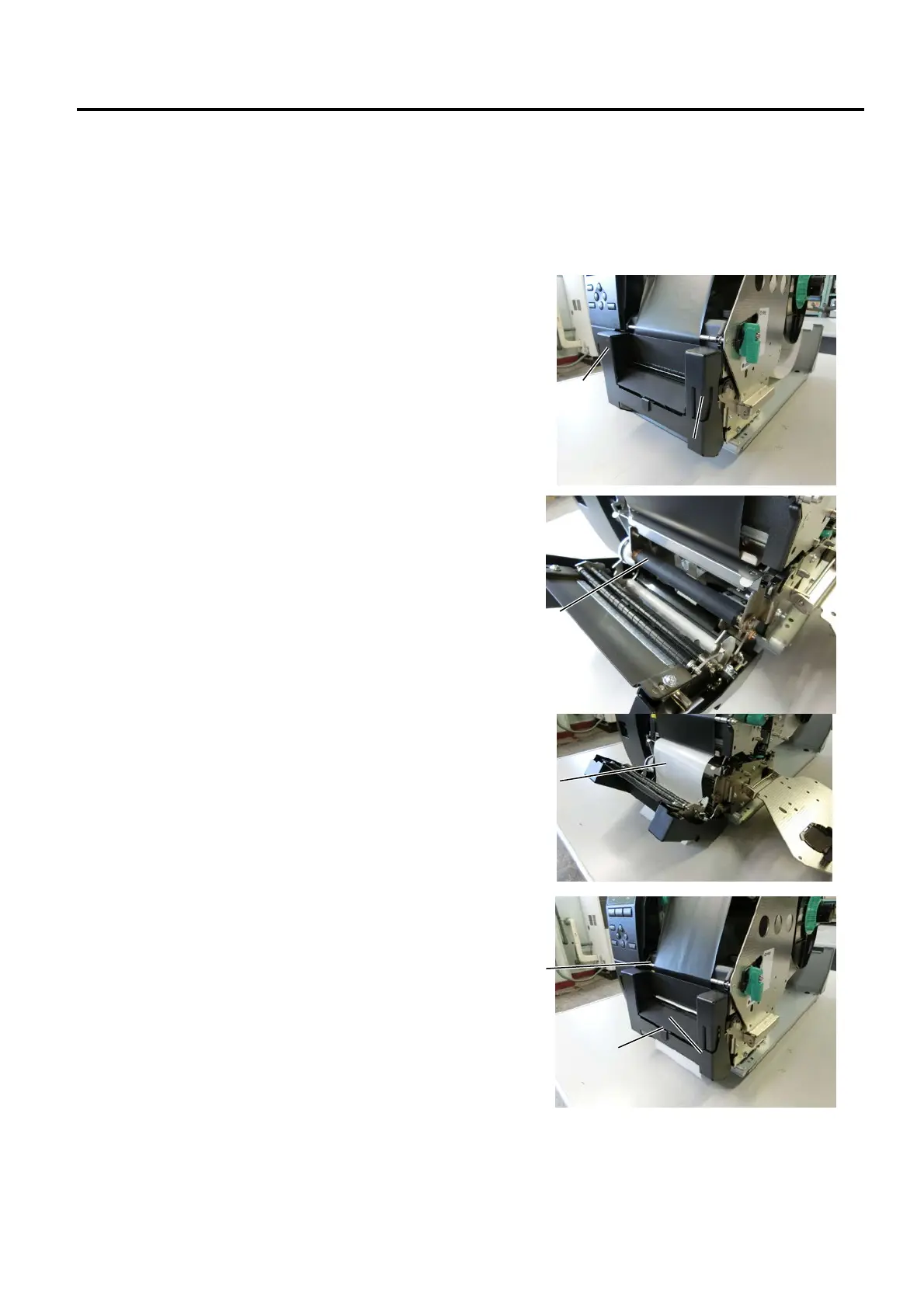

1. Press the peel-off unit release button to open the
peel-off unit.
2. Remove enough labels from the leading edge of the
media to leave 200mm of backing paper free.
3. Insert the leading edge of the backing paper under
the backing paper feed roller.
4. Close the peel-off unit until it clicks.
5. Manually move the peel-off sensor so that it is in line
with the center of labels coming out of the media
outlet. (Basically, align the sensor with the center of
the media outlet)
Peel-off unit release button
Pee-off unit
Backing
paper feed
roller
Backing
paper
Backing paper
Pee-off unit
Peel-off sensor
