2. PRINTER SETUP ENGLISH VERSION EO1-33114
2.3 Loading Supplies
17

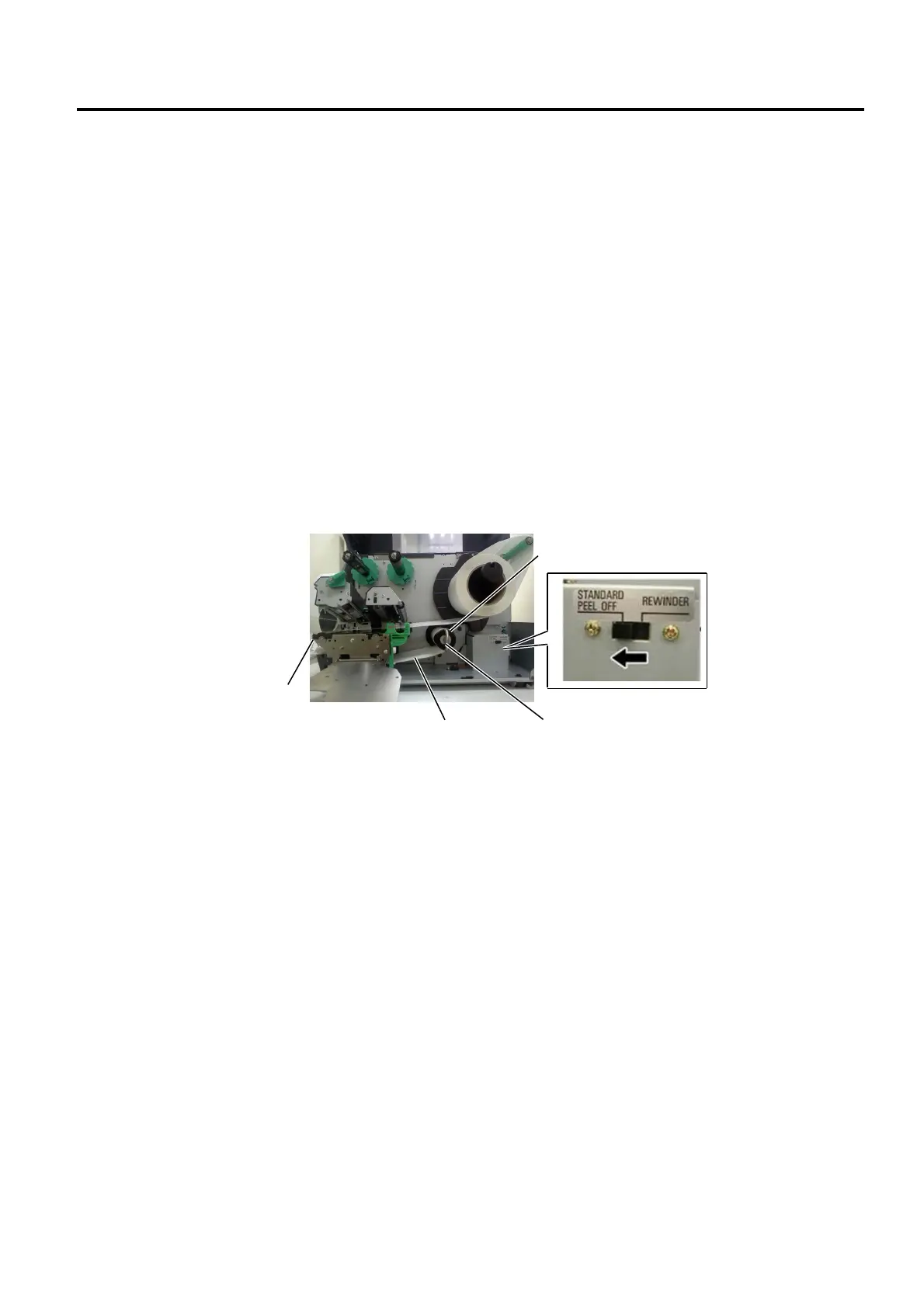

When the peel-off module is fitted:
1. Remove enough labels from the leading edge of the
media to leave 500mm of backing paper free.
2. Pull the backing paper out of the media outlet, then
insert the leading edge of the backing paper under the
strip plate.
3. Wind the backing paper onto the take-up spool and
fix it in position with the take-up clip. (Wind the paper
counterclockwise around the spool.)
4. Rotate the take-up spool counterclockwise a few
times to remove any slack in the backing paper.
5. Set the selection switch mounted on the rewinder
Ass’y to STANDARD PEEL OFF position.
NOTES:
1. Be sure to set the selection switch to STANDARD/PEEL OFF position.
2. Fit the take-up clip so that the longer side of the clip is fitted into the shallow groove in the take-up spool.
3. Insert the take-up clip fully.
4. Backing paper can be wound directly onto the take-up spool or a paper core fitted on the take-up spool.
When winding backing paper directly onto the Take-up spool, detach the spring plate from the take-up
spool by removing the screw. Otherwise, it may be difficult to pull out the wound backing paper roll.
Wind the backing paper onto the take-up spool two or three times, then fasten the backing paper with the
take-up clip.
When using a paper core, put a core on the take-up spool without removing the sprint plate, and attach
the leading edge of the backing paper to the core with adhesive tape. The take-up clip is not necessary.
Backing Paper
Strip Plate
Take-up Spool
Take-up Clip
To Next Page
