Toshiba B-EX4T3 Series - Ribbon Loading Steps

2. PRINTER SETUP ENGLISH VERSION EO1-33114
2.3 Loading Supplies
19
2.3.2 Loading the Ribbon
(Cont.)
3. Slide the Ribbon Stoppers along the Ribbon Shafts so that the ribbon
will be centered when fitted.
4. Lower the Print Head Block and set the Ribbon Shaft Holder Plate
aligning its holes with the Ribbon Shafts.
5. Take up any slack in the ribbon. Wind the leading tape onto the
ribbon take-up roll until the ink ribbon can be seen from the front of
the printer.
6. Turn the Head Lever to Label2 position to close the Print Head.
7. Close the Top Cover.

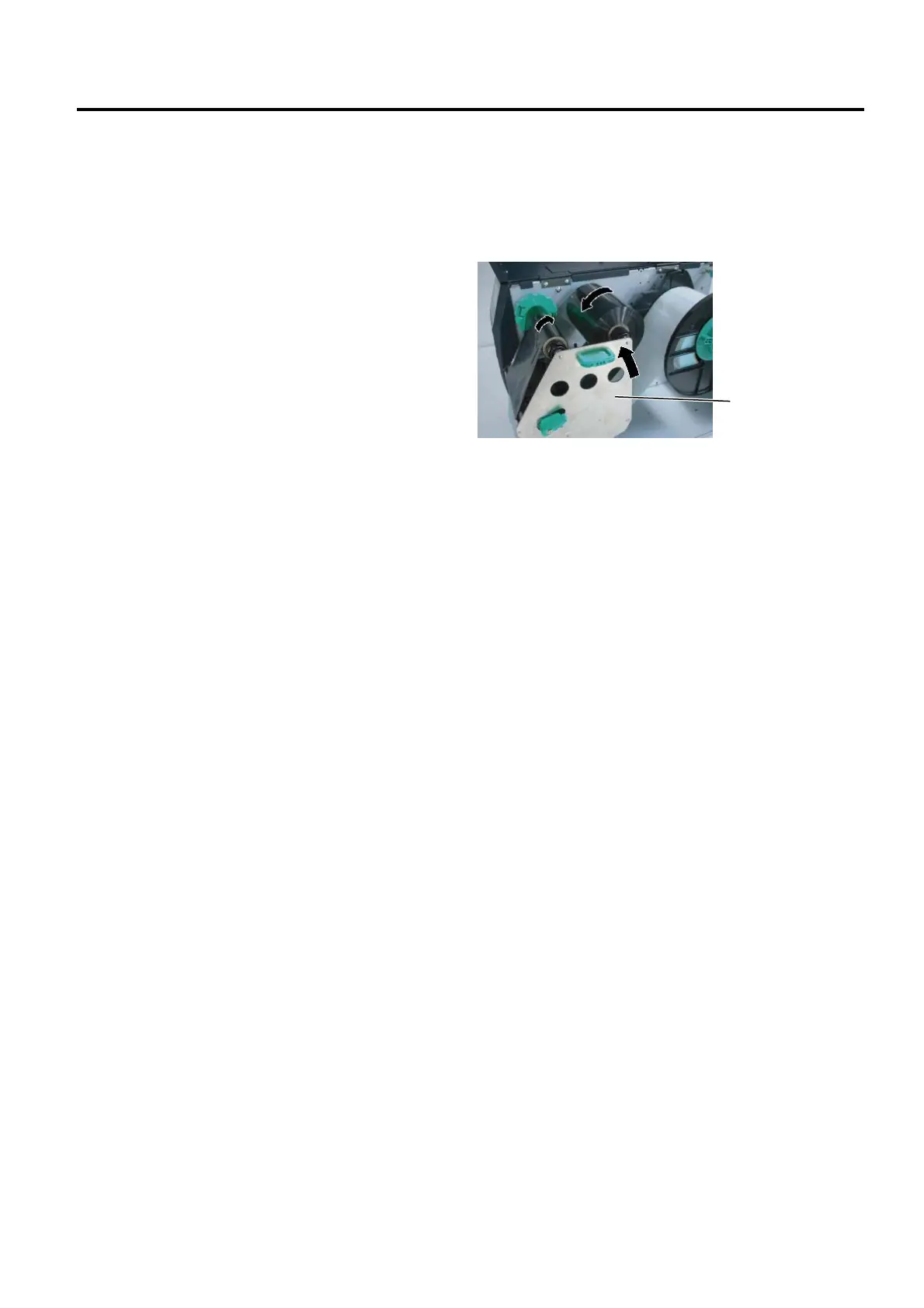

Ribbon Shaft
Holder Plate
