2. MAJOR UNIT REPLACEMENT
EO18-33032
2.10 Replacing the Peel-Off Roller
2-28
4) Replace the Peel-off Rollers with a new one, then reassemble in the reverse order of removal.
5) Check that the rollers can rotate smoothly and the spring force works when the Peel-off Roller Assembly is
pressed.
NOTES:

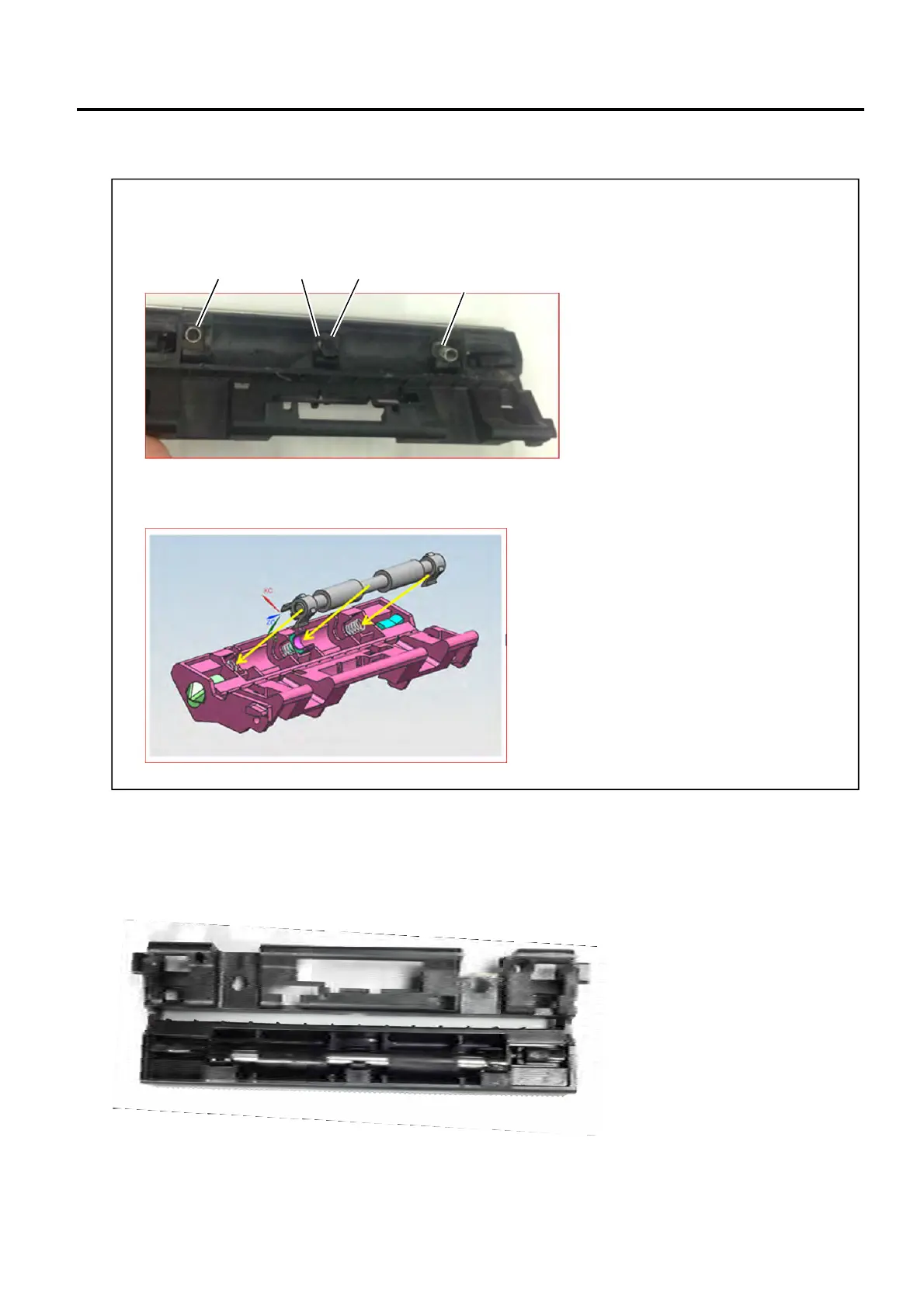

1. Place the 3 springs on the center area as shown in the picture below. Put the middle hook on top of
the spring located on the middle.
2. Assemble the 2 Peel-off roller to the Roller shaft and the 2 roller clips. Attach the assembly to the
Lever strip.
Spring
Spring
Spring
Middle hook
To Next Page
