2. MAJOR UNIT REPLACEMENT
EO18-33032
(Revision Date: Aug., 2017)
2.12 Replacing the Wifi Module
2-32
4) Replace the WiFi module with a new one, and then perform reassembly in the reverse order of removal.
For the GH model, attach a new adhesive tape after re-installing the Thermal head assembly. (Refer to
Section 2.1.)

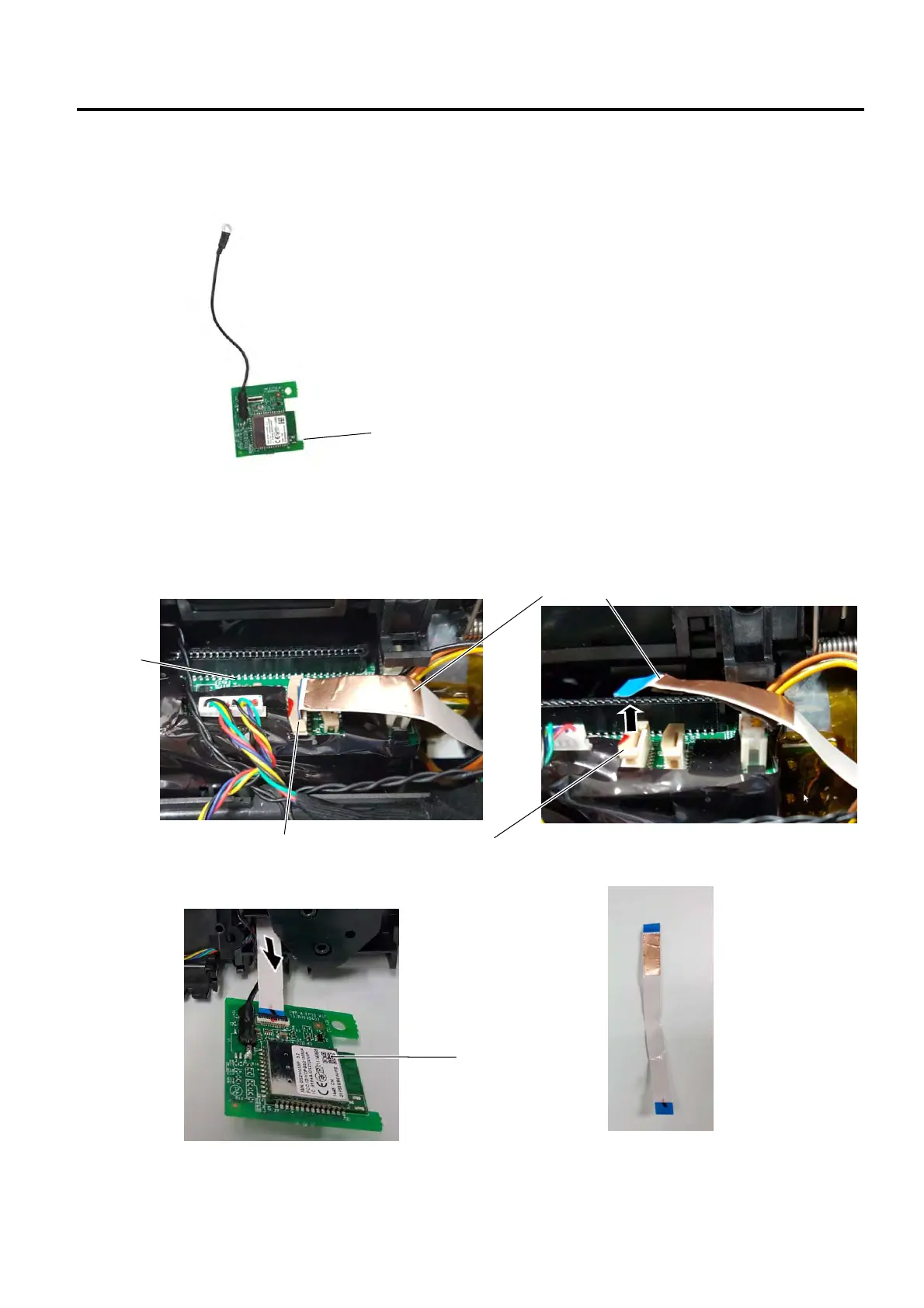

WiFi FPC Cable Replacement:
A. Remove the Function Unit and the thermal head unit. (Refer to Section 2.5 Replacing the Print head.)
B. Disconnect the FPC cable from the J13 connector on the Main PC Board.
C. Pull the FPC Cable outside and remove the FPC Cable from the Wifi module.
D. Replace the FPC cable with a new one, and then perform reassembly in the reverse order of removal.
For the GH model, attach a new adhesive tape after re-installing the Thermal head assembly. (Refer to
Section 2.1.)
FPC Cable
Main PC
Board
Lock
Pull the lock upwards and remove the FPC cable.
Wifi Module
Wifi Module
J13
