Toshiba B-SA4T Series Product Description

1. OUTLINE EO10-33016A
1.5 Electronics Specifications
1-8

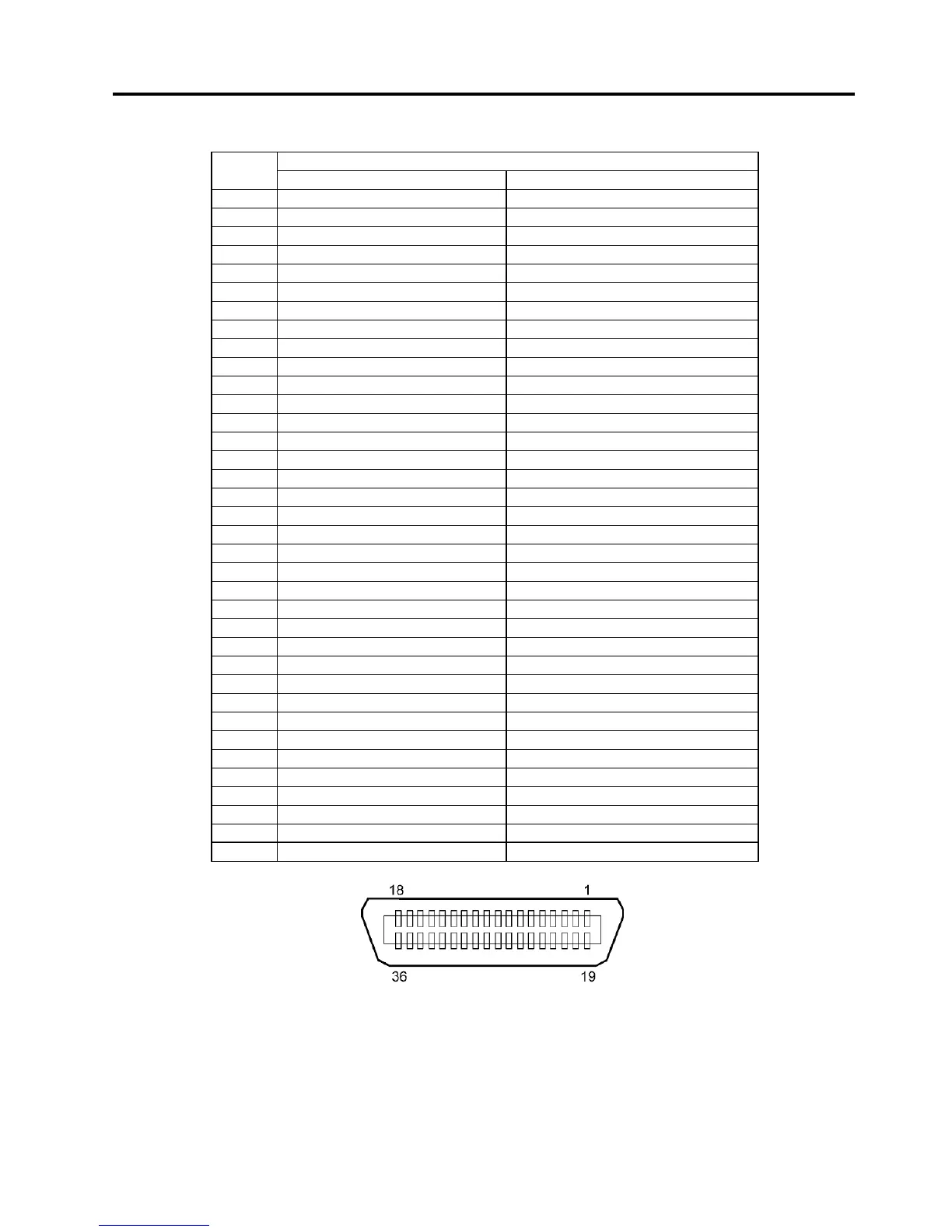

i Pin Layout (IEEE1284-B Connector)
Signal PIN
No.
SPP Mode Nibble Mode
1 nStrobe HostClk
2 Data 1 Data 1
3 Data 2 Data 2
4 Data 3 Data 3
5 Data 4 Data 4
6 Data 5 Data 5
7 Data 6 Data 6
8 Data 7 Data 7
9 Data 8 Data 8
10 nAck PtrClk
11 Busy PtrBusy
12 PError AckDataReq
13 Select Xflag
14 nAutoFd HostBusy
15 NC NC
16 0V 0V
17 CHASSIS GND CHASSIS GND
18 +5V (For detection) +5V (For detection)
19 TWISTED PAIR GND(PIN1) TWISTED PAIR GND(PIN1)
20 TWISTED PAIR GND(PIN2) TWISTED PAIR GND(PIN2)
21 TWISTED PAIR GND(PIN3) TWISTED PAIR GND(PIN3)
22 TWISTED PAIR GND(PIN4) TWISTED PAIR GND(PIN4)
23 TWISTED PAIR GND(PIN5) TWISTED PAIR GND(PIN5)
24 TWISTED PAIR GND(PIN6) TWISTED PAIR GND(PIN6)
25 TWISTED PAIR GND(PIN7) TWISTED PAIR GND(PIN7)
26 TWISTED PAIR GND(PIN8) TWISTED PAIR GND(PIN8)
27 TWISTED PAIR GND(PIN9) TWISTED PAIR GND(PIN9)
28 TWISTED PAIR GND(PIN10) TWISTED PAIR GND(PIN10)
29 TWISTED PAIR GND(PIN11) TWISTED PAIR GND(PIN11)
30 TWISTED PAIR GND(PIN31) TWISTED PAIR GND(PIN31)
31 nInit nInit
32 nFault NDataAvail
33 0V 0V
34 NC NC
35 NC NC
36 nSelectIn IEEE1284Active
IEEE1284-B Connector

Toshiba B-SA4T Series Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Speed	Up to 152.4 mm/sec (6 ips)
Max Print Width	104 mm (4.09")
Resolution	300 dpi
Connectivity	USB 2.0
Optional Interfaces	Wireless LAN
Barcodes	UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, Industrial 2 of 5, Postnet, RM4SCC, KIX-Code
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417, Aztec Code
Media Thickness	0.06 – 0.19 mm
Media Roll Diameter	Max. 127 mm
Ribbon Length	Up to 300 m
Weight	15 kg
