Toshiba B-SA4T Series Product Description

1. OUTLINE EO10-33016A
1.5 Electronics Specifications
1-16
4) Sensor/switch
(1) Media sensor
This sensor is comprised of the black mark sensor and feed gap sensor. It is positioned 92.1 mm
from the platen.
The sensor position is adjustable according to the black mark position. It can be manually moved
from the center to the left edge of media.
 Black mark sensor (Reflective sensor)
This sensor detects the difference of potential between a black mark and a print area to find a
print start position of the tag paper.
Side detection (max.)
Center detection
 Feed gap sensor (Transmissive sensor)
This sensor detects the difference in potential between the backing paper and the label to
find the print position of the label. The feed gap sensor is located at 10 mm to the right of
the black mark sensor.
Side detection (max.)
Center detection

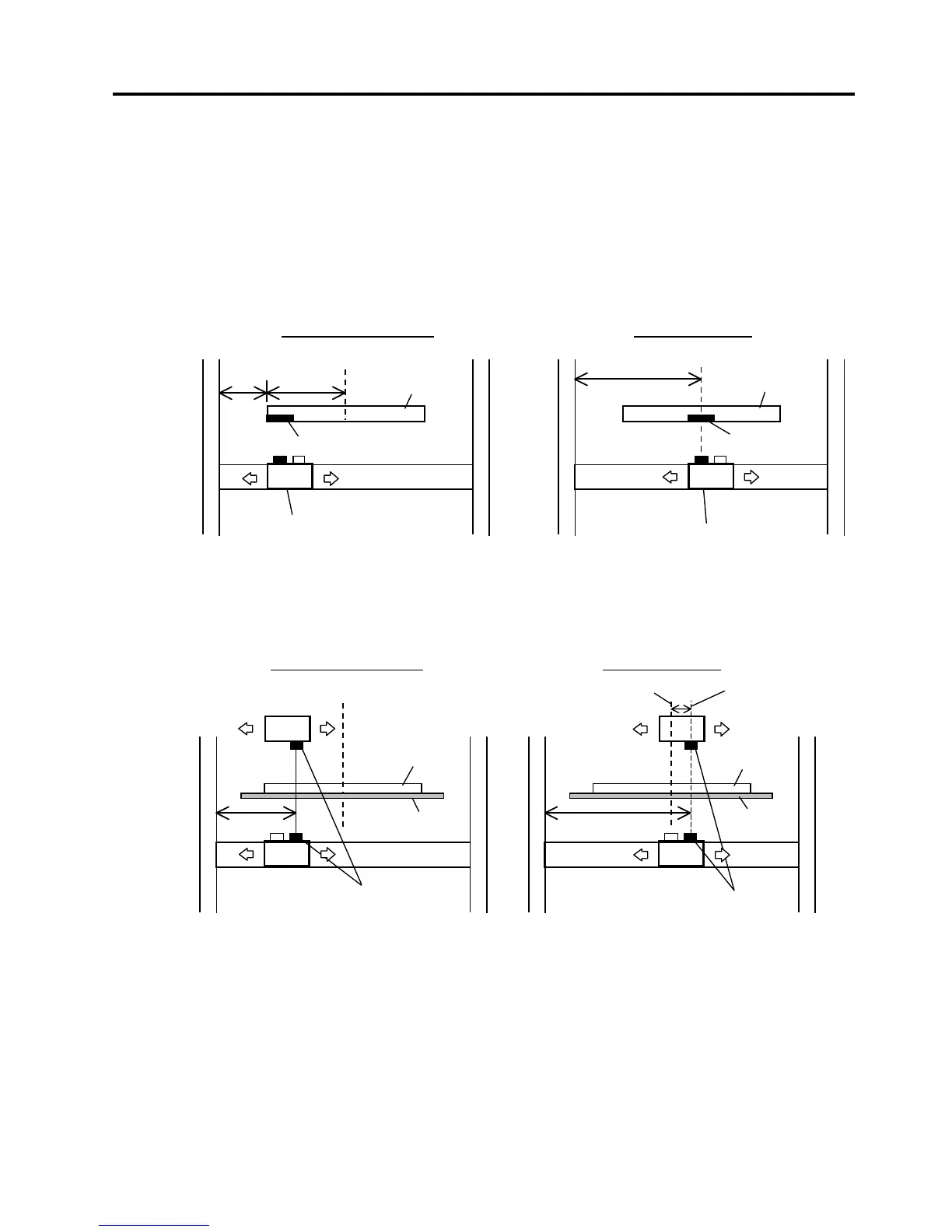

Black Mark Sensor
Black Mark
Media Center
Tag Paper
Black Mark Sensor
Black Mark
Media Center
Tag Paper
Feed Gap Sensor
Media Center
Label
Backing Paper
Feed Gap Sensor
Media Center
Home position of the
Feed Gap Sensor
Label
Backing Paper

Toshiba B-SA4T Series Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Speed	Up to 152.4 mm/sec (6 ips)
Max Print Width	104 mm (4.09")
Resolution	300 dpi
Connectivity	USB 2.0
Optional Interfaces	Wireless LAN
Barcodes	UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, Industrial 2 of 5, Postnet, RM4SCC, KIX-Code
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417, Aztec Code
Media Thickness	0.06 – 0.19 mm
Media Roll Diameter	Max. 127 mm
Ribbon Length	Up to 300 m
Weight	15 kg
