Toshiba B-SA4T Series Product Description

1. OUTLINE EO10-33016A
1.5 Electronics Specifications
1-17
(2) Slit sensor (Transmissive sensor)
The ribbon motor block has three same slit sensors: Two of them are attached to the ribbon
feed motor side, and the other one is to the ribbon take-up side.
A slit sensor is a photo-coupler, consisting of an LED and a transistor.
This sensor detects the amount of taken ribbon, ribbon feed amount, the rotation count of the
ribbon shaft and the ribbon motors, and the direction of rotation.
The slit sensor on the ribbon take-up side detects the amount of taken ribbon by monitoring the
time of detecting slits of the ribbon slit gear.
The two slit sensors on the ribbon feed side detects a ribbon end when the motor rotates in the
reverse direction at a ribbon break or ribbon end.
(3) Top cover open sensor
On each side of the printer, same top cover open sensor is provided. This sensor is a photo-
coupler, consisting of an LED and a transistor. A top cover open status is detected depending
on the two hook plates linked with the top cover release button intercept the photo-coupler or
not.
When a top cover open status is detected, “HEAD OPEN” is displayed on the LCD, the error
LED illuminates, and printing is stopped.

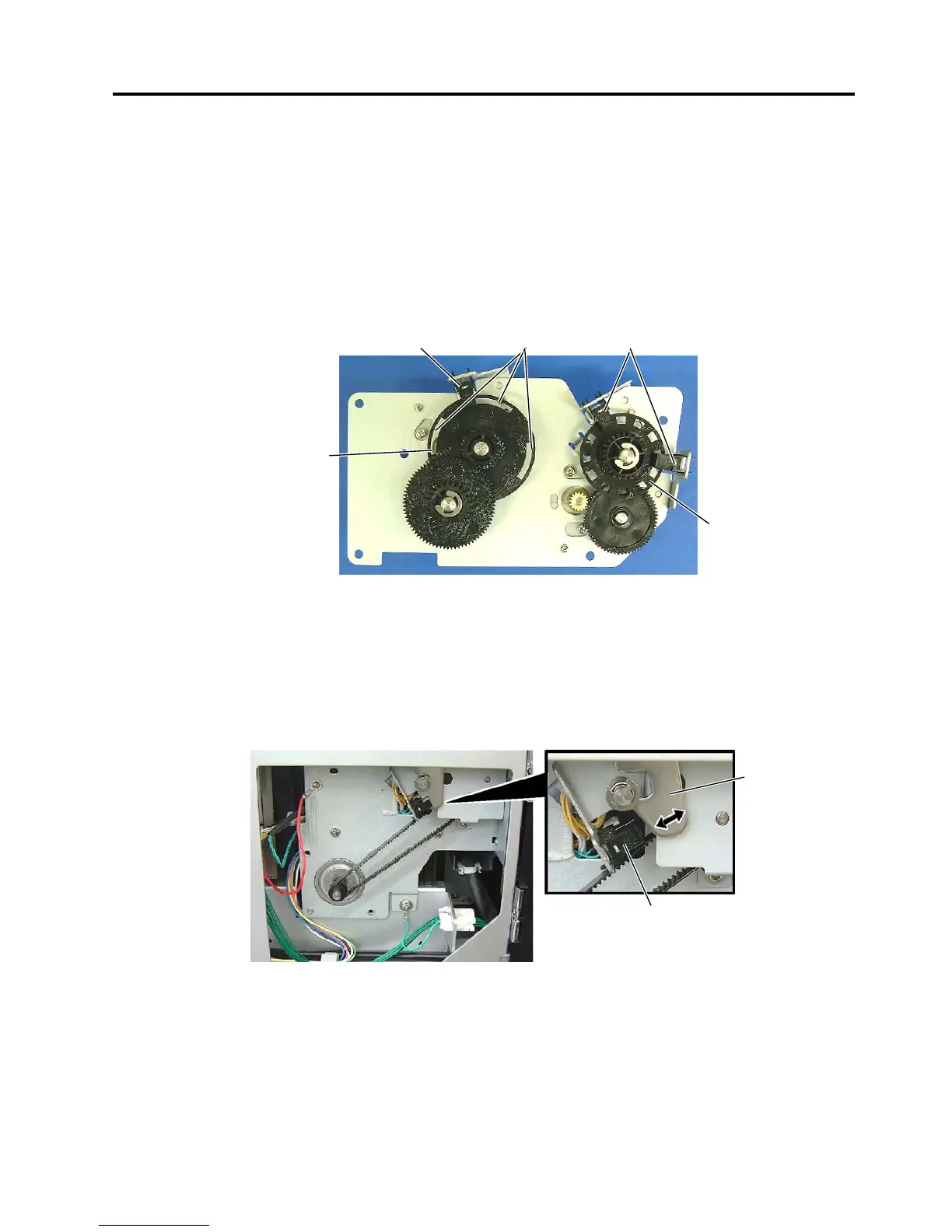

Slit Sensor (Take-up)
Slit
Slit Sensor (Feed)
Ribbon Slit Gear
(Take-up)
Ribbon Slit Gear
(Feed)
Hook Plate
Top Cover Open Sensor

Toshiba B-SA4T Series Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Speed	Up to 152.4 mm/sec (6 ips)
Max Print Width	104 mm (4.09")
Resolution	300 dpi
Connectivity	USB 2.0
Optional Interfaces	Wireless LAN
Barcodes	UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, Industrial 2 of 5, Postnet, RM4SCC, KIX-Code
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417, Aztec Code
Media Thickness	0.06 – 0.19 mm
Media Roll Diameter	Max. 127 mm
Ribbon Length	Up to 300 m
Weight	15 kg
