1. OUTLINE
EO10-33016A
1.5 Electronics Specifications
1-18

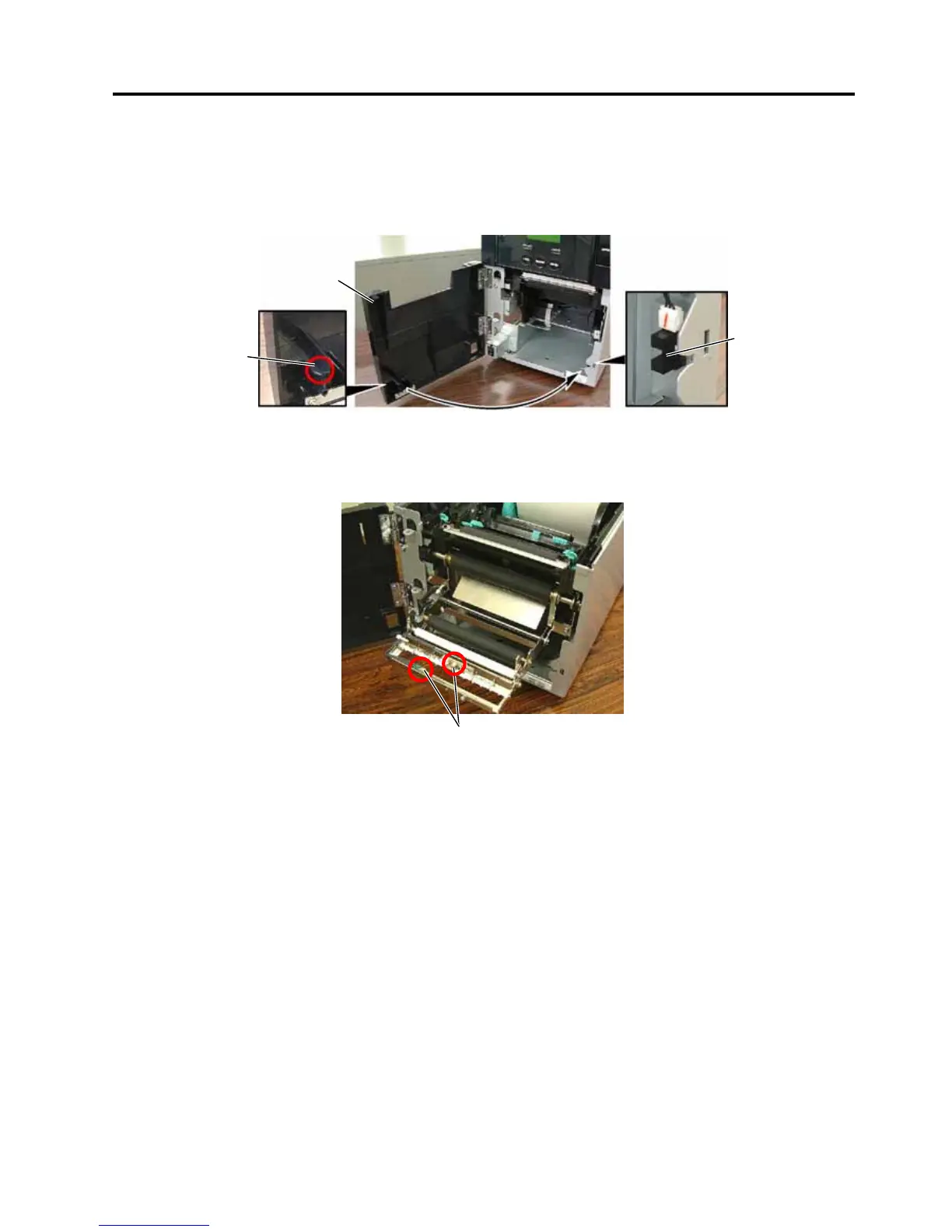

(4) Front cover open sensor
On the right side of the printer front, a front cover open sensor is provided. This sensor is a
photo-coupler, consisting of an LED and a transistor. A front cover open status is detected
depending on the tab of the front cover intercepts the photo-coupler or not.
When a front cover open status is detected, “COVER OPEN”.
(5) Strip sensor (transmissive sensor) for optional strip module
This sensor detects whether or not the label has been taken away from the media outlet and
controls the label feed.
Front Cover Open
Sensor
Front Cover
Tab
Strip Sensor
To Next Page
