2. SUPPLY SPECIFICATIONS EO10-33016A
2.1 Media
2- 4
(3) Effective Printing Area
• Relationship between the head effective print width and paper
•

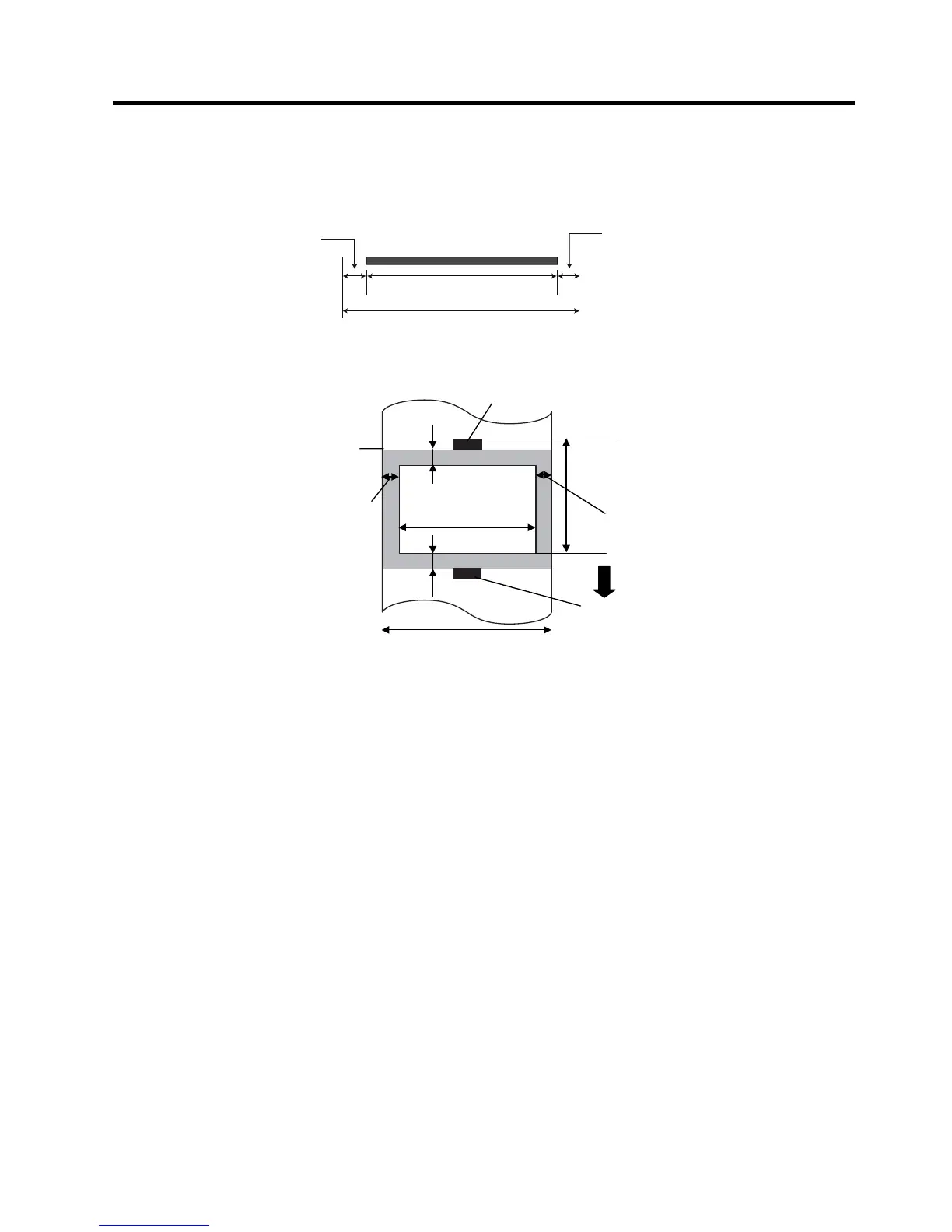

Effective printing area of a label/tag paper
NOTES:
1. Be sure not to print on the 1-mm wide area from the media edges (shaded area in the above figure).
Printing this area may cause ribbon wrinkles, resulting in a poor print quality of the guaranteed print area.
2. The center of media is positioned at the center of the Print Head.
3. Print quality in the 3-mm area from the print head stop position (including 1-mm non-printable area for
print speed slow down) is not guaranteed.
7.0
mm
118 mm (Max. media width)
104.0 mm (GS model)
105.7 mm (TS model)
Out of print range
Out of print range
7.0
mm
Start line
Area to be detecte
d.
Area to be detected.
Media feed direction
1 mm from the
left edge of media
Media width
(backing paper width is not included.)
Media height
10 –99.9 mm
1 mm from the right
edge of media
1mm
1mm
Guaranteed print area
Head Effective Print Range
