2. SUPPLY SPECIFICATIONS EO10-33016A
2.1 Media
2- 3

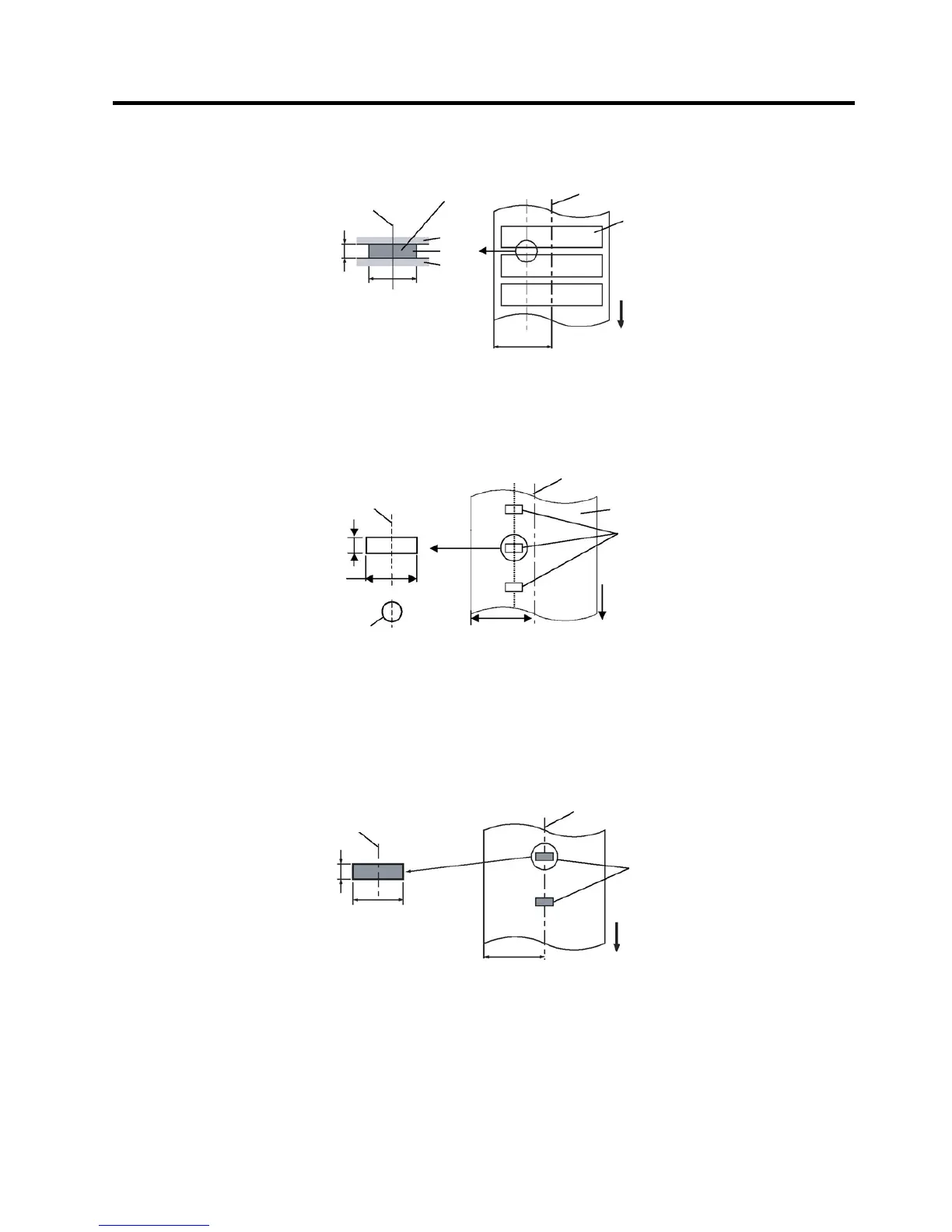

(2) Specification of a Gap or a Black Mark
• Feed Gap Sensor and a Gap
<Tag paper> A hole is used for detection.
• Black Mark Sensor and a Black Mark
<Tag paper> A black mark is used for detection.
Sensor is movable within this
range. (45 mm: in units of 2.5 mm)
Sensor should be positioned at
the centre of the black mark.
Centre of media
Min. 12 mm
Media feed direction
Min. 2.0 mm
Sensor is movable within this range.
(55 mm: in units of 2.5 mm)
Detecting the black
marks on the back.
Sensor position
Centre of media
Min. 12 mm
Media feed direction
Min. 2.0 mm
Rectangle holes
Print side
Sensor position
Area to be detected
Centre of media
Print side
Min. 12 mm
Label
Gap
Label
Min. 2.0 mm
Sensor is movable
within this range.
Media feed direction
Round hole
Min.
Ø2.5 mm
