2. SUPPLY SPECIFICATIONS EO10-33016A
(Revision Date: Feb. 14, 2008)
2.4 Specification of RFID Tag
2- 10
2.4.4 Short-pitch tag (Rafsec Short Dipole2)
A Shield Sheet is supplied with the B-SA704-RFID-U2-EU-R to enable the RFID kit to encode short-pitch
tags properly. When the Shield Sheet is attached to the printer, the write field will be narrower.
The RFID kit is designed so that the second label is positioned just above the antenna while the first label is
at the print start position, when using the following short-pitch label.
After printing a label, a reverse feed for a distance equivalent to one label pitch is required to write data onto
its tag. During this reverse feed, the bottom edge of the printed label may be stuck on the print head edge,
causing a feed jam. This is because the labels become thicker due to embedded tags.
When several labels are issued in a batch, set the offset printing parameter to 1 (Offset printing is
performed without a reverse feed of the first label.) in order to make the printer issue labels without
performing a reverse feed. In this case, however, the printer does not print or write data on the first label,
so it is wasteful. This mode is not suitable for applications where a small number of labels are issued on an
as-needed basis.
For details of the offset printing feature, refer to the B-SA4T External Equipment Interface Specification
(EAA-2165).

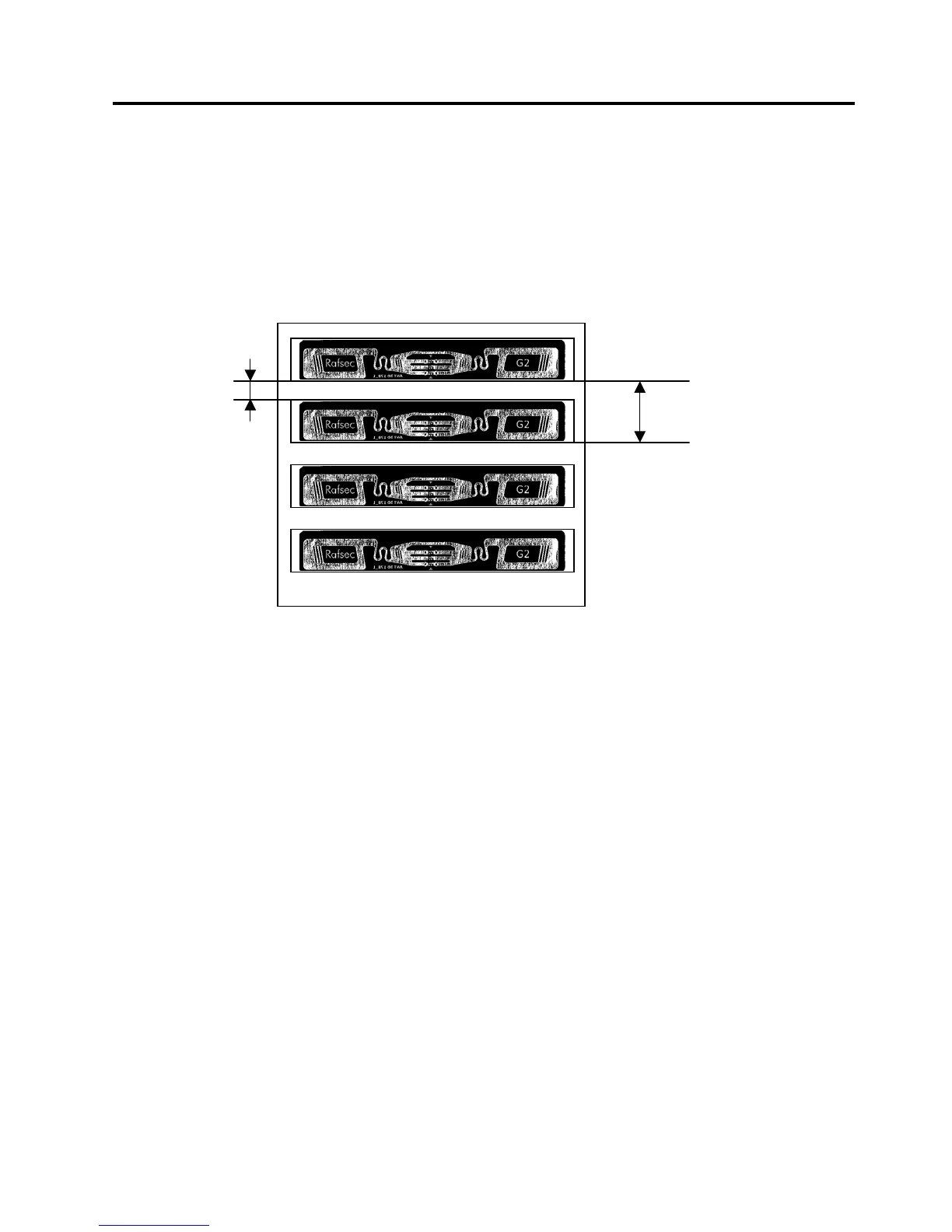

20mm
5mm
