2. SUPPLY SPECIFICATIONS EO10-33016A
(Revision Date: Feb. 14, 2008)
2.4 Specification of RFID Tag
2- 9
(2) UPM Raflatac’s Rafsec WEB Tag
It is recommended to locate the vertical center of an RFID tag at 58 mm ± 6 mm from a leading edge of a
label and align the horizontal center with the horizontal center of the label.
As this tag intersects vertically to the antenna of the RFID kit, the radio receiving area becomes narrower,
which may cause the sensitivity to be low. In this case, an AGC threshold for data write is required to be set
again. The factory default of the AGC threshold for data write is 11, however, it is recommended to change
this value to 10.
Especially, when the operating temperature is low (5°C to 10°C), the sensitivity tends to become low.
Variation of the sensitivity of tags may also lower the read rate. Operation at normal temperature (15°C to
30°C) is desired.

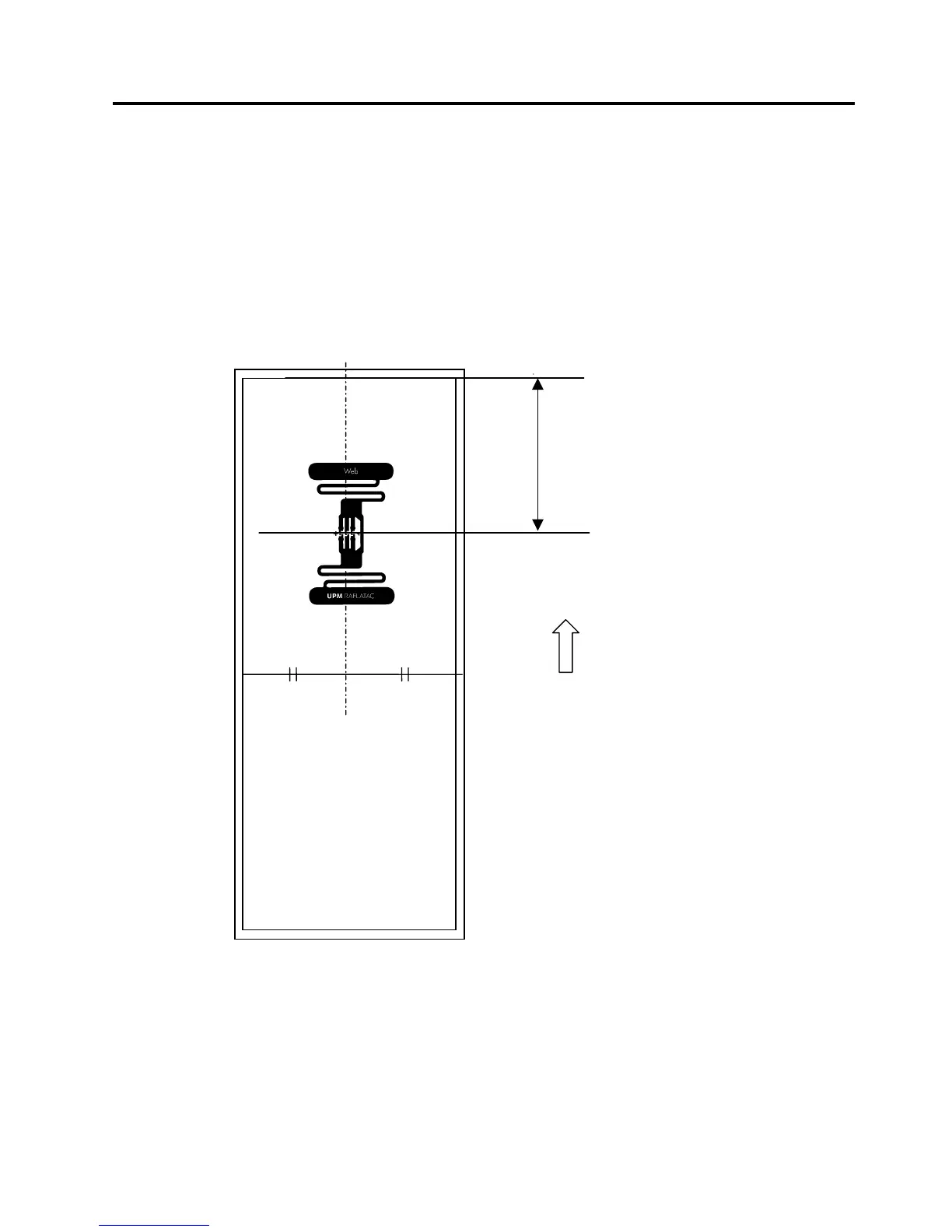

58mm±6mm
Media feed direction
